Pitot-static tubing and wires in IM
|
 |
Pitot-static tubing and wires in IM
panel wires awaiting termination: 2020-10-27 Panasonic DMC-FT1

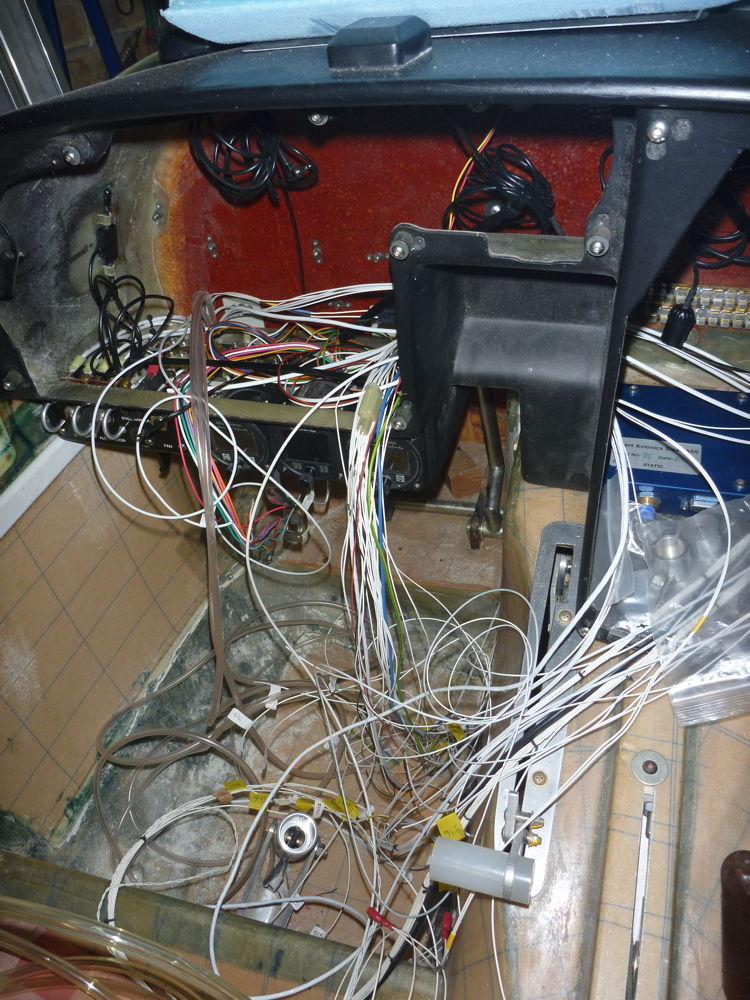

Here are the pitot and static tubing, and most of the wires, drawn in to the instrument module, awaiting termination to the items in the main and radio panels. It looks a mess now, but the wires are all labelled for easy identification and will get laced into neater bundles as termination proceeds. The only wires not yet installed are those in the port footwell conduit for the stick-top switches and the fuel level sensor in the seatpan.
|
