gascolator hatch splash moulding
|
|
gascolator hatch splash moulding |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest
gascolator access splash moulding: 2015-11-17 Panasonic DMC-FT1

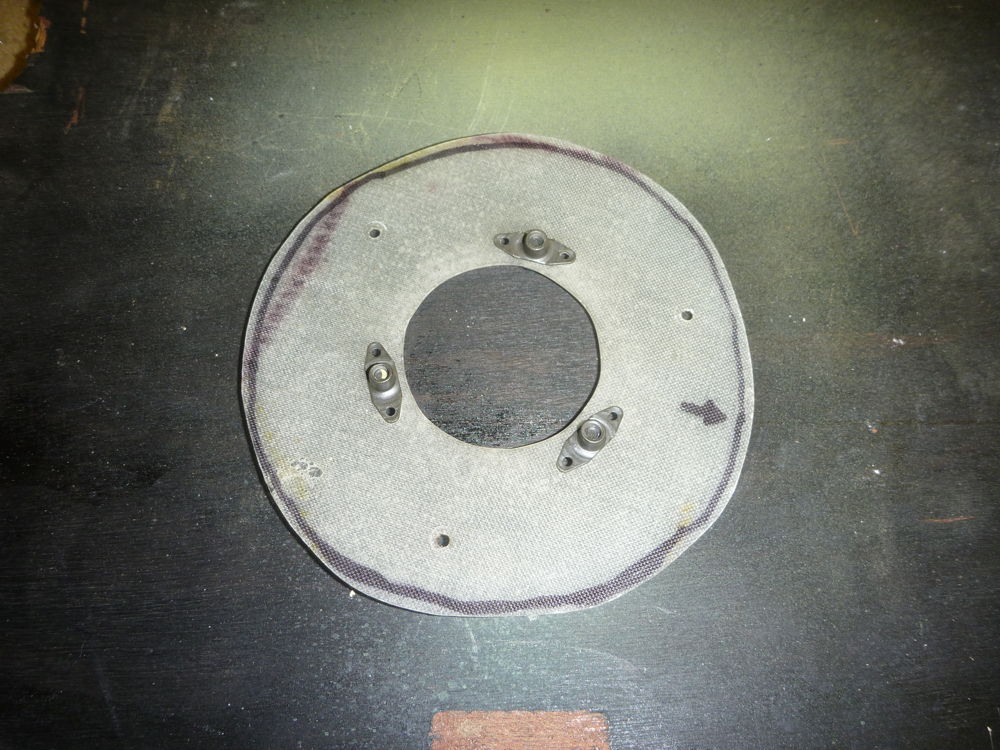

The splash moulding surround for the gascolator access hole, with the anchor nuts positioned and holes drilled. The arrow indicates forward, to ensure correct orientation when bonding.
bonding gascolator access splash moulding: 2015-11-17 Panasonic DMC-FT1

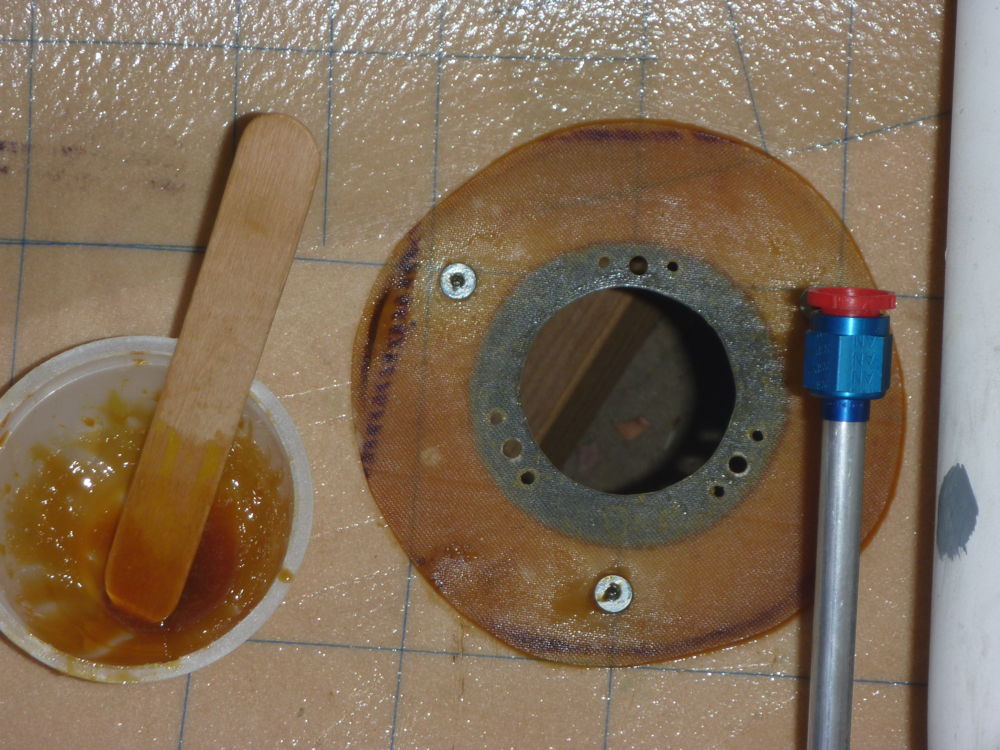

Bonding the splash moulding in place around the access hole for dropping the gascolator bowl. One of the 3 clecos holding the moulding firmly in place is hidden behind the capped-off fuel line.
bonding gascolator access splash moulding: 2015-11-17 Panasonic DMC-FT1

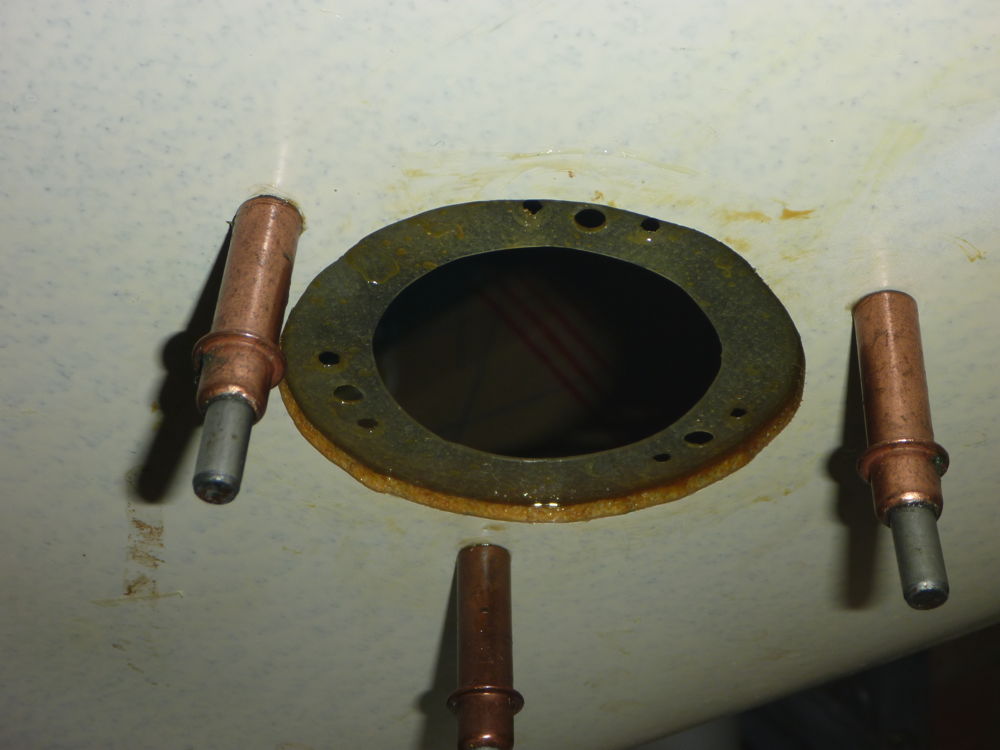

Bonding the splash moulding in place around the access hole for dropping the gascolator bowl. 3 clecos hold the moulding firmly in place while curing.
