fuel line union at wheel well

2 pictures on this page - scroll down to see the rest

fuel union between pipe and hose

fuel union between pipe and hose: 2015-11-06 Panasonic DMC-FT1

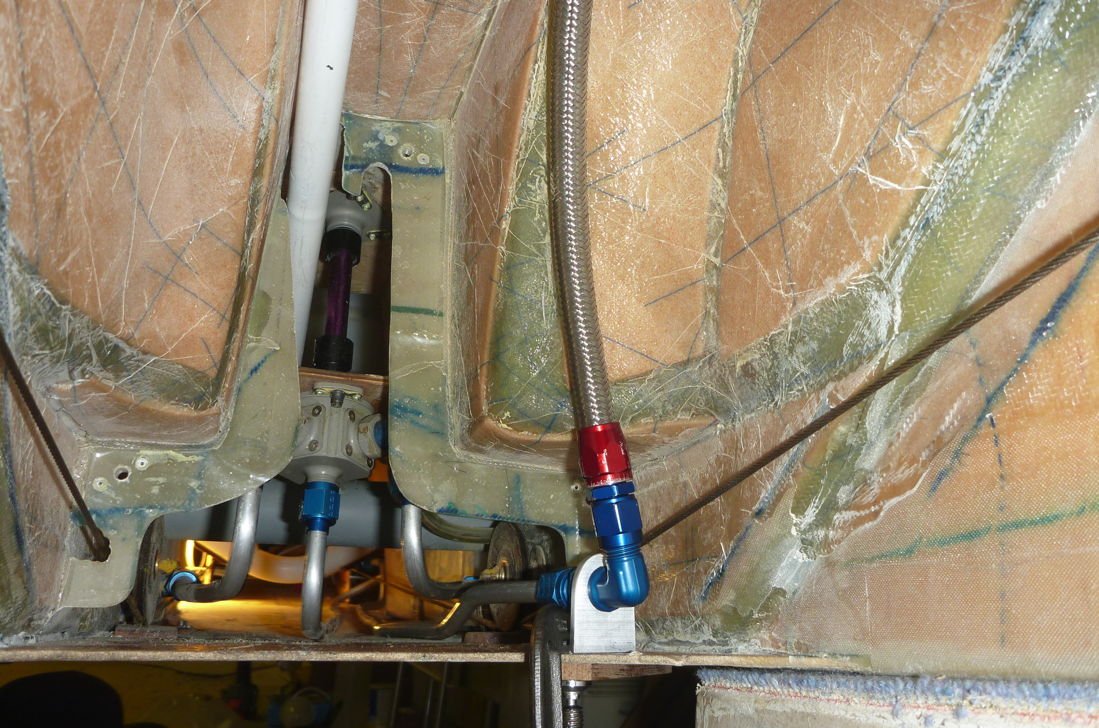

Looking aft from the wheel well, showing the fuel pipework. The bracket for the elbow union in the foreground is temporarily clamped in place to confirm its positioning before being bonded on.

fuel hose clear of tyre

fuel hose clear of tyre: 2015-11-06 Panasonic DMC-FT1

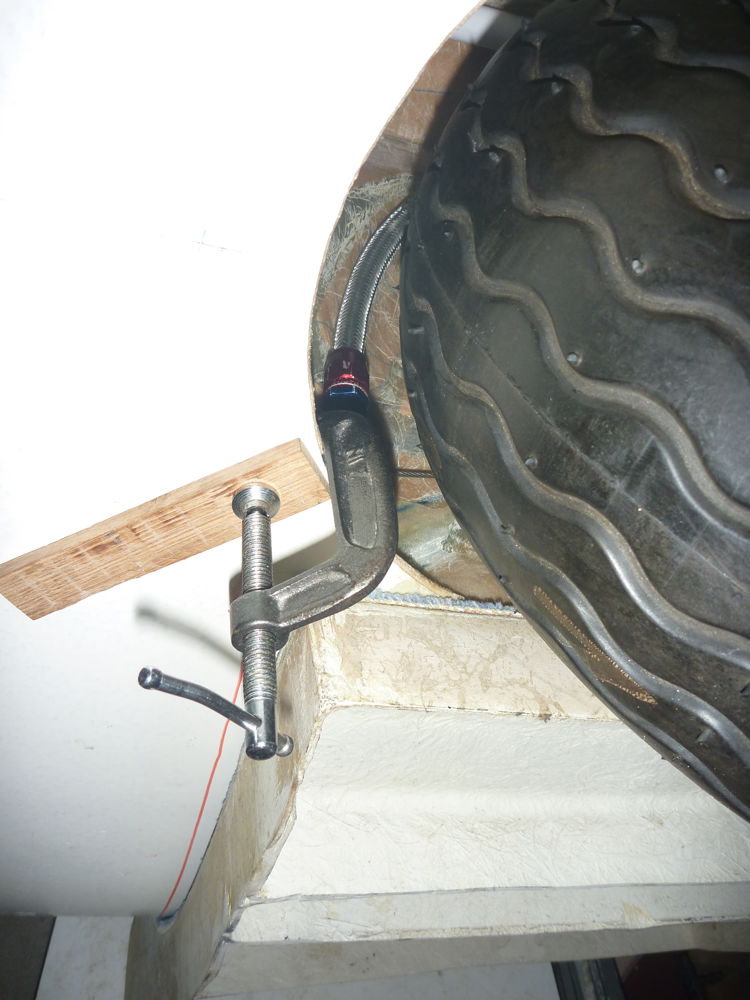

The bracket holding the fuel line union clamped in place to confirm satisfactory routing of the stainless-steel braided flexible hose up past the tyre when the undercarriage is retracted.
