Forward socket heater clamp

2 pictures on this page - scroll down to see the rest

G-clamp on heating resistors

G-clamp on heating resistors: 2014-12-16

Lumix DMC-FT1

Trying out a standard G-clamp for the job of holding the heating resistors in place on the forward wing pin socket. Obviously something smaller is needed!

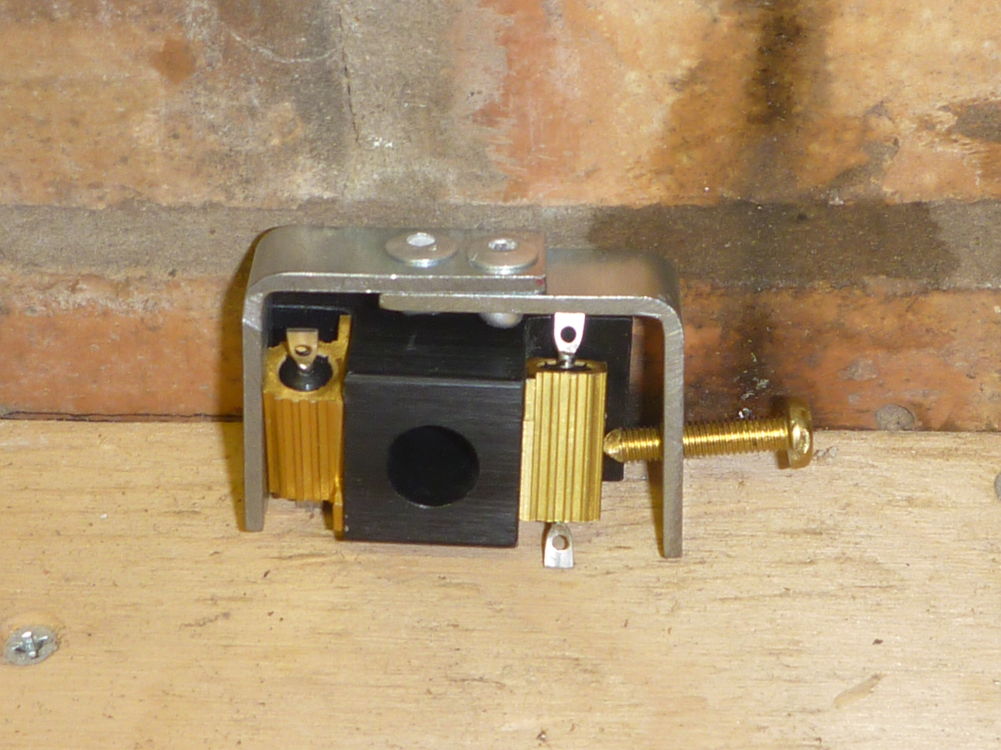

home-made clamp for heating resistors

home-made clamp for heating resistors: 2014-12-16

Lumix DMC-FT1

A home-made solution to the question of holding the heating resistors firmly against the forward wing pin socket during cure. 2 slices off a piece of steel angle riveted together and fitted with a brass clamping screw.
