fuselage dolly: 2008-07-10
Nikon Coolpix 8400

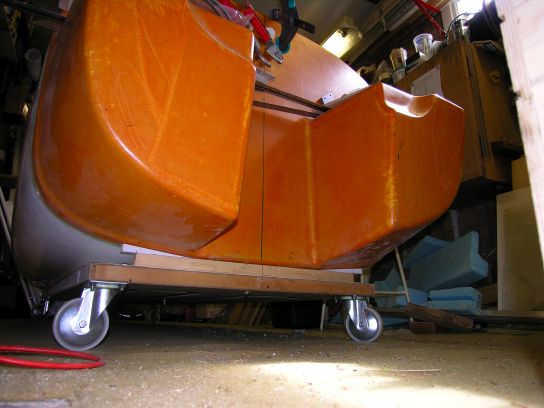

The simple fuselage dolly made from an old door with castors fitted. This is the forward end, showing the cross batten providing longitudinal support and wedges inserted for lateral support. The centreline of the fuselage moulding on the firewall was drawn by measurement from the fuselage sides, and lines up with the centreline marked on the dolly.
fuselage dolly: 2008-07-10
Nikon Coolpix 8400

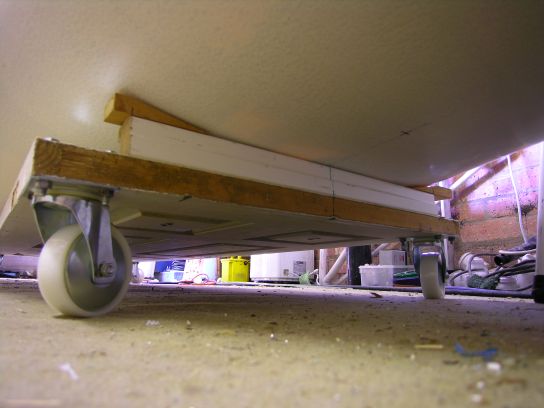

The simple fuselage dolly made from an old door with castors fitted. This is the aft end, showing the cross batten providing longitudinal support and wedges inserted for lateral support. The centreline of the fuselage moulding was drawn between the fuselage station crosses, and lines up with the centreline marked on the dolly.
