fuel vent

3 pictures on this page - scroll down to see the rest

fuel vent pipe lower

fuel vent pipe lower: 2016-08-24 Panasonic DMC-FT1

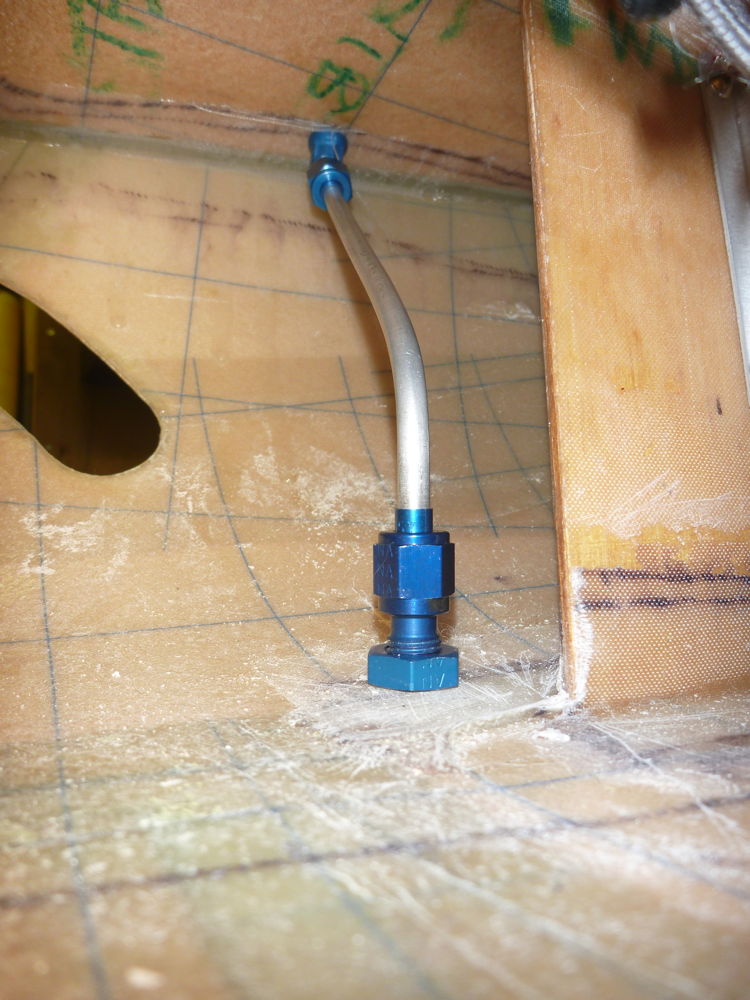

The lower end of the fuel vent pipe, between the baggage shelf and the fuselage floor.

fuel vent

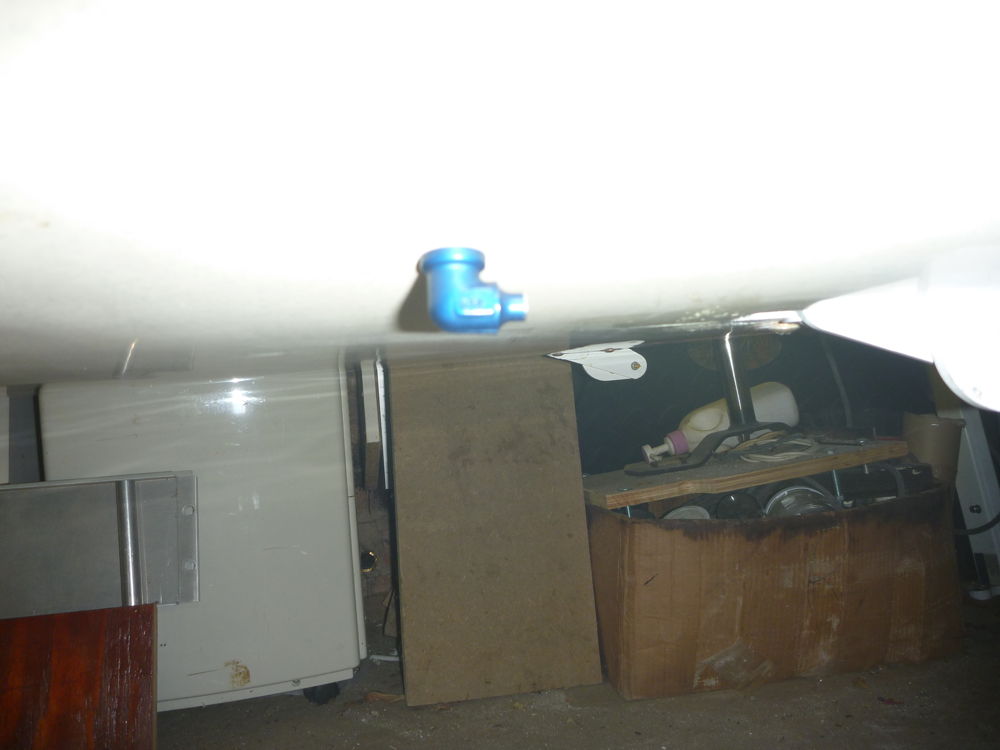

fuel vent: 2016-08-24 Panasonic DMC-FT1

The external part of the fuel vent - an AN838-4D elbow with the hose nipple cut off.

fuel vent pipe upper

fuel vent pipe upper: 2016-08-24 Panasonic DMC-FT1

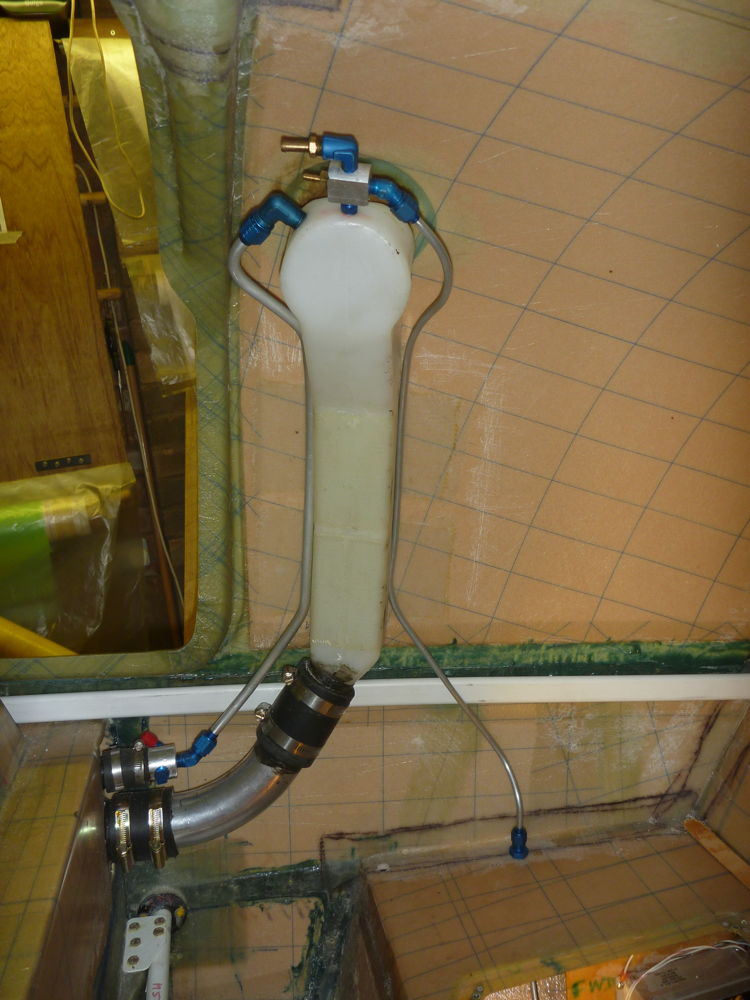

The fuel vent pipe from the top of the fuel filler neck to the baggage shelf. The pipe runs aft at the bottom to stay clear of the flap cross-tube underneath the baggage shelf.
