fire extinguisher re-fit

3 pictures on this page - scroll down to see the rest


fire extinguisher fitting

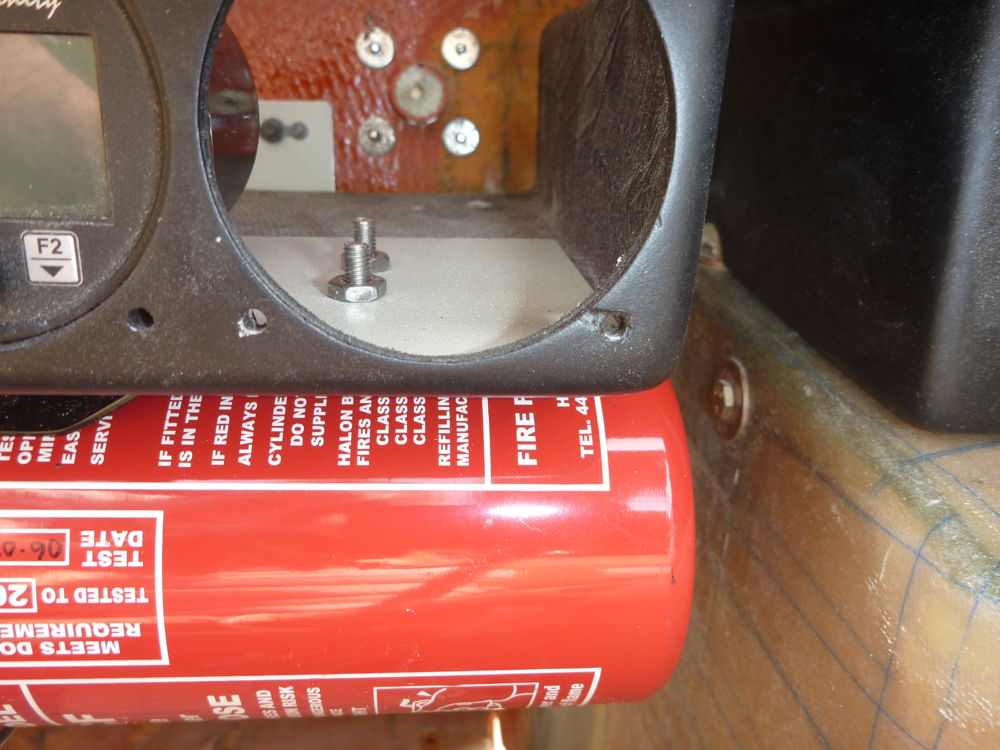

fire extinguisher fitting: 2016-08-23 Panasonic DMC-FT1

The initial position of the screws fixing the fire extinguisher bracket to the bottom of the instrument module would foul one of the instruments on the sub-panel.


fire extinguisher fitted

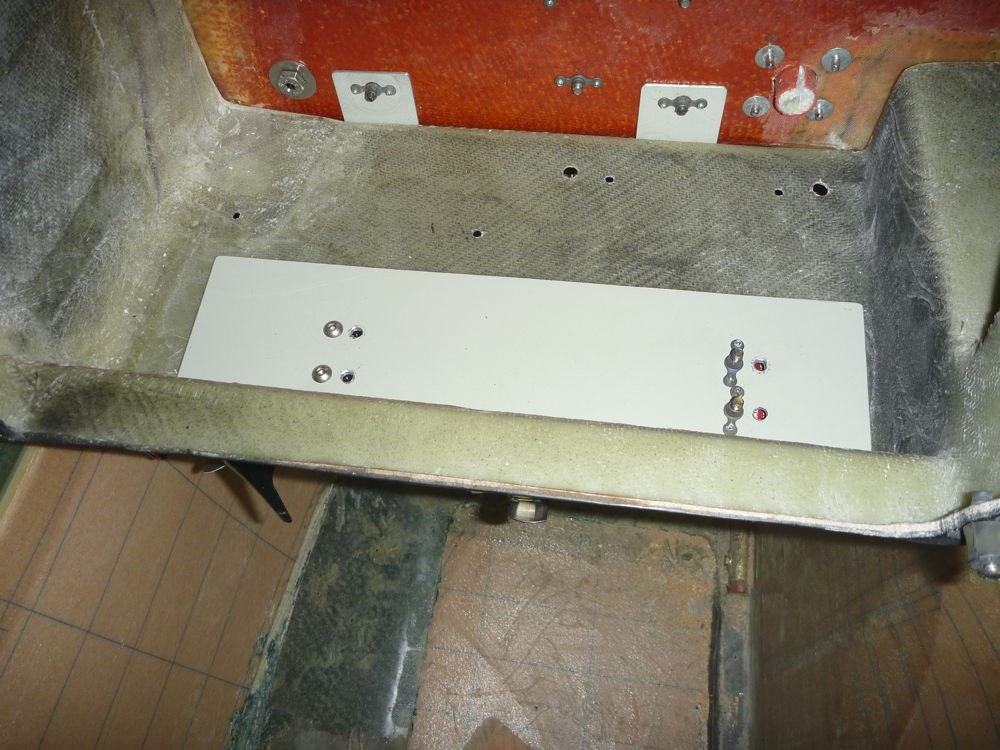

fire extinguisher fitted: 2016-08-24 Panasonic DMC-FT1

The fire extinguisher support plate within the instrument module. The empty holes at the original positions of the bracket fixing screws can be seen a few millimetres to the right of the screws and anchor nuts.


fire extinguisher fitted

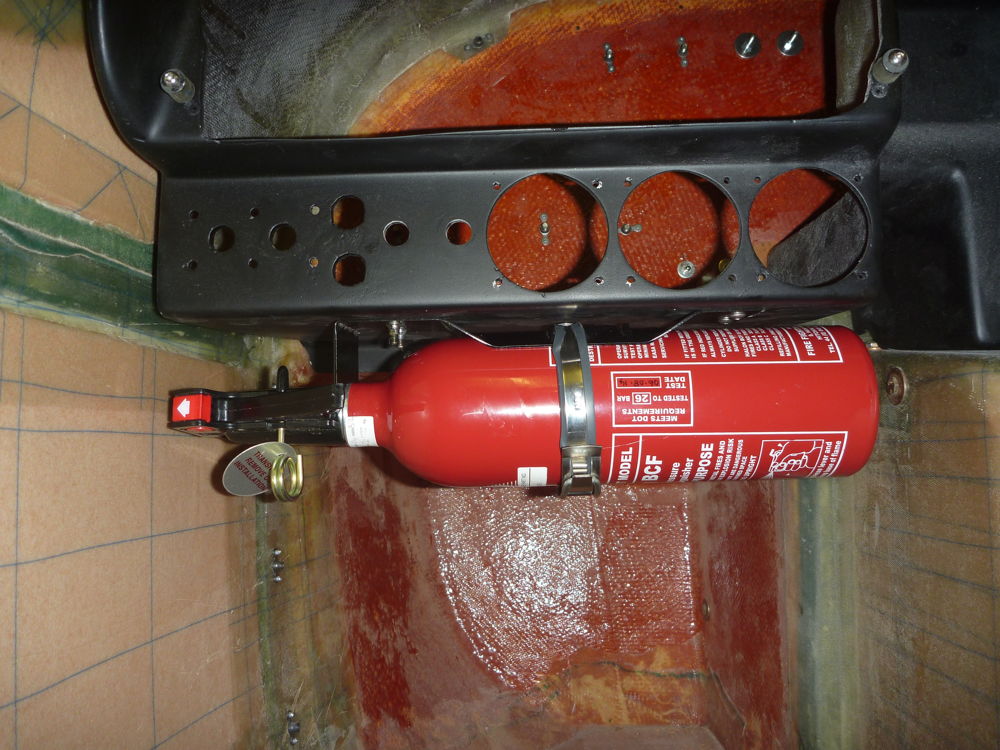

fire extinguisher fitted: 2016-08-24 Panasonic DMC-FT1

The fire extinguisher in its final location underneath the instrument module.
