plastic conduit through baggage bay

2 pictures on this page - scroll down to see the rest

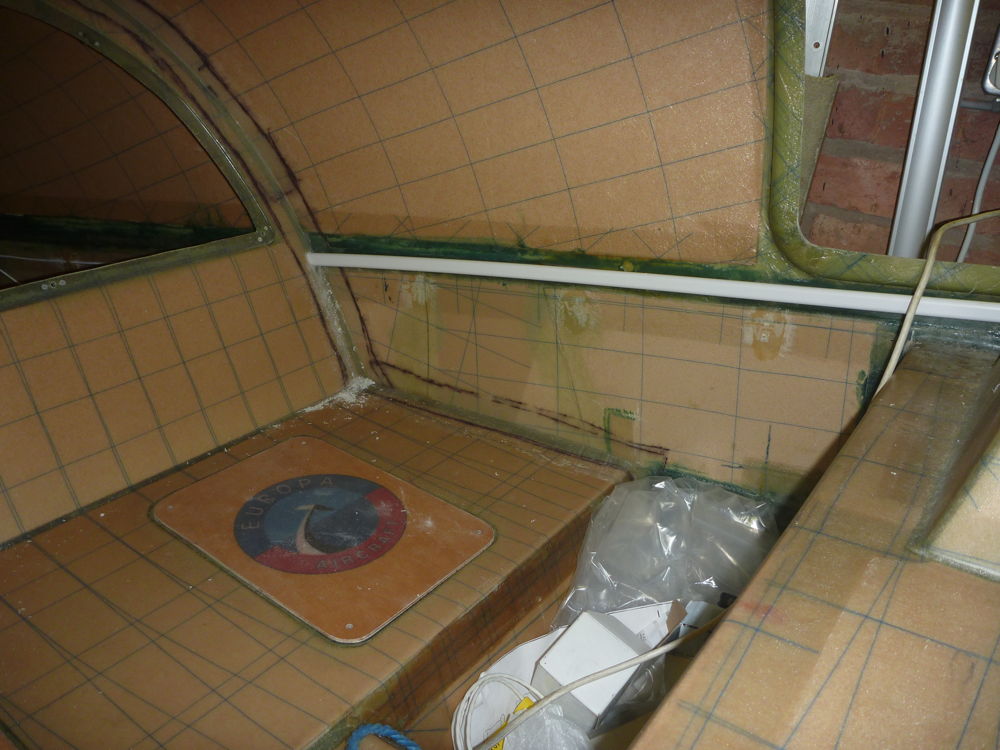

port side conduit in baggage bay

port side conduit in baggage bay: 2016-08-25 Panasonic DMC-FT1

Conduit fitted to a hole in the port side of the baggage bay bulkhead. It will be secured by a clip bonded to the fuselage side.

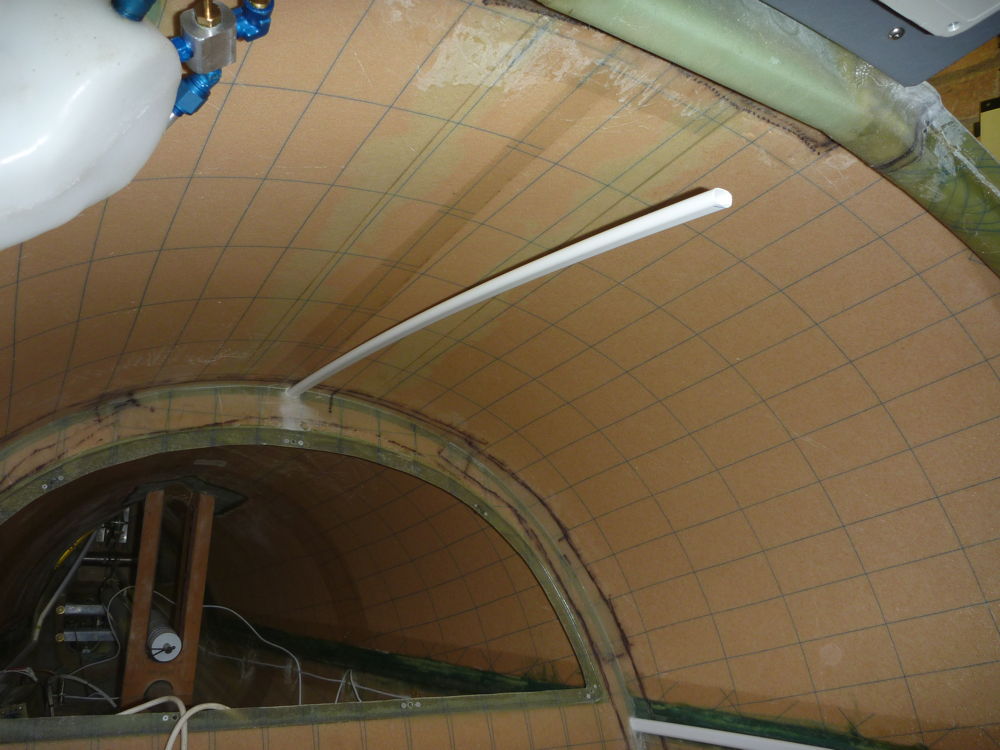

roof conduit in baggage bay bulkhead

roof conduit in baggage bay bulkhead: 2016-08-25 Panasonic DMC-FT1

The conduit for wiring to the overhead panel fitted into a hole in the baggage bay bulkhead. The drooping forward end will be secured to the fuselage roof with a bonded-on clip.
