Flap hinge clamp

2 pictures on this page - scroll down to see the rest

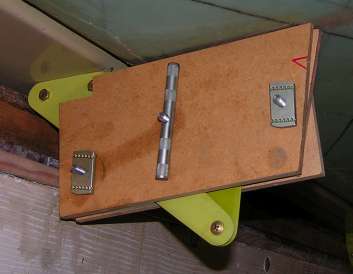

Flap clamp

Flap clamp: 2007-11-26.

Nikon Coolpix 8400

A clamp made to hold the flap in the retracted position while working on fitting the wing top skin. It's a sandwich of 3 layers of 9mm MDF, held together by M6 screws with large nuts that happened to be handy.

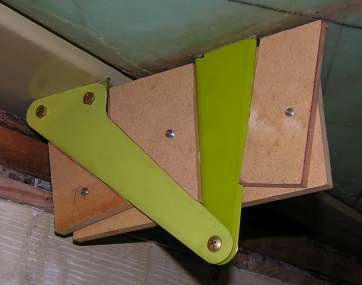

Flap clamp internals

Flap clamp internals: 2007-11-26.

Nikon Coolpix 8400

This is the middle layer of the MDF sandwich. The 3 pieces were cut to fit around the flap hinge parts as closely as possible in the retracted position.
