alignment fixture for flap cross-tube guide

4 pictures on this page - scroll down to see the rest

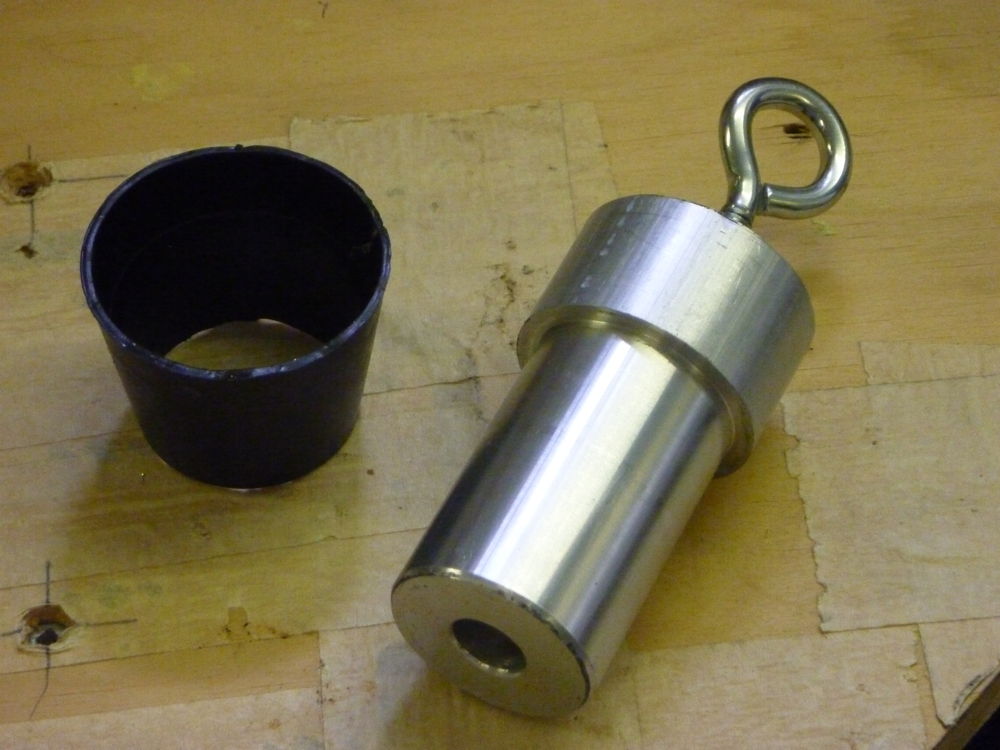

flap tube rigging guide with alignment fixture

flap tube rigging guide with alignment fixture: 2017-05-27 Panasonic DMC-FT1

I made up a fixture from aluminium round bar to hold the guide in correct alignment with the flap pin while it is being bonded in. The hole at the small end of the fixture fits over the flap pin. The screw-eye is for extracting the fixture after the layup is cured. The step in the fixture holds the guide at the correct distance from the flap root former, so that the small end of the guide is at the end of the flap pin.

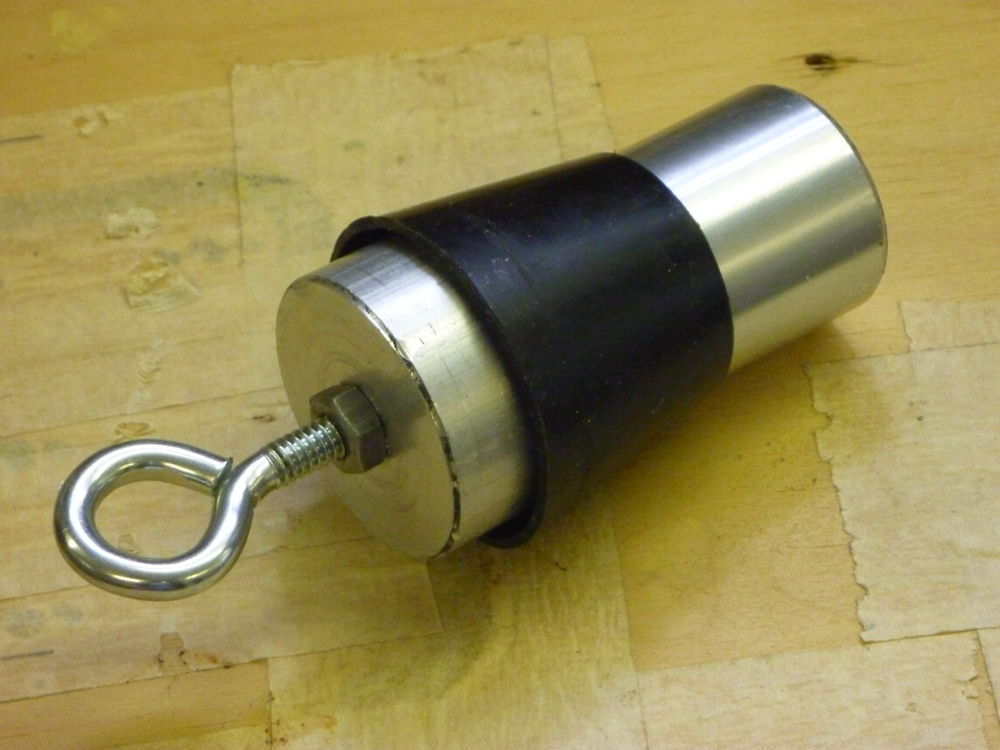

flap tube rigging guide on alignment fixture

flap tube rigging guide on alignment fixture: 2017-05-27 Panasonic DMC-FT1

The alignment fixture with the flap tube guide in place.

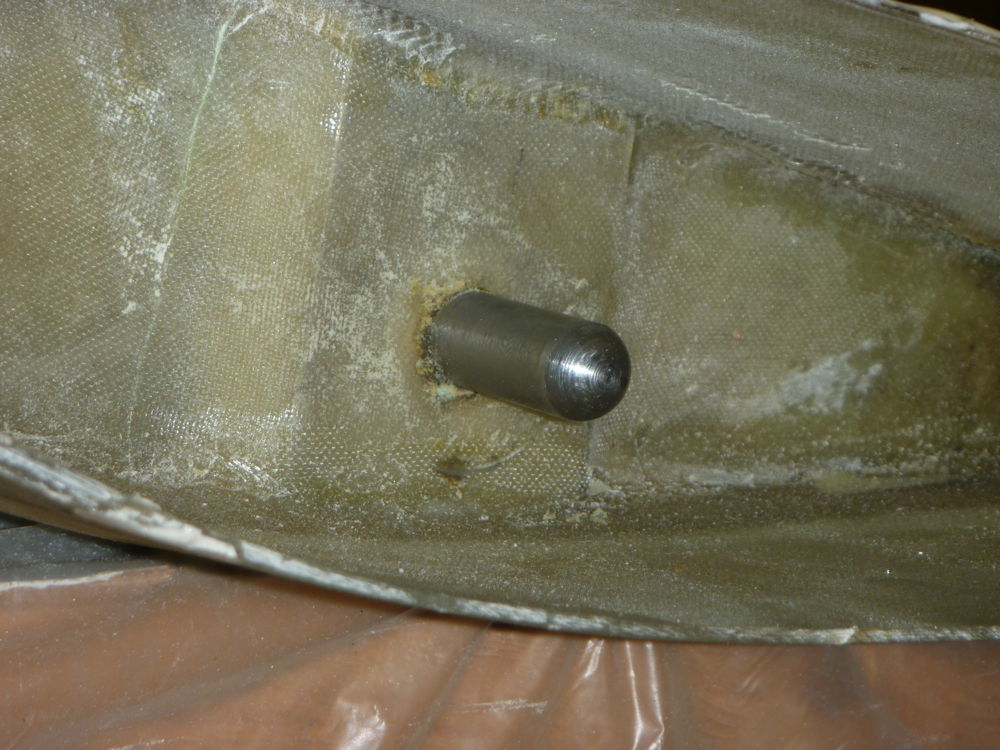

flap drive pin

flap drive pin: 2017-05-27 Panasonic DMC-FT1

The flap drive pin.

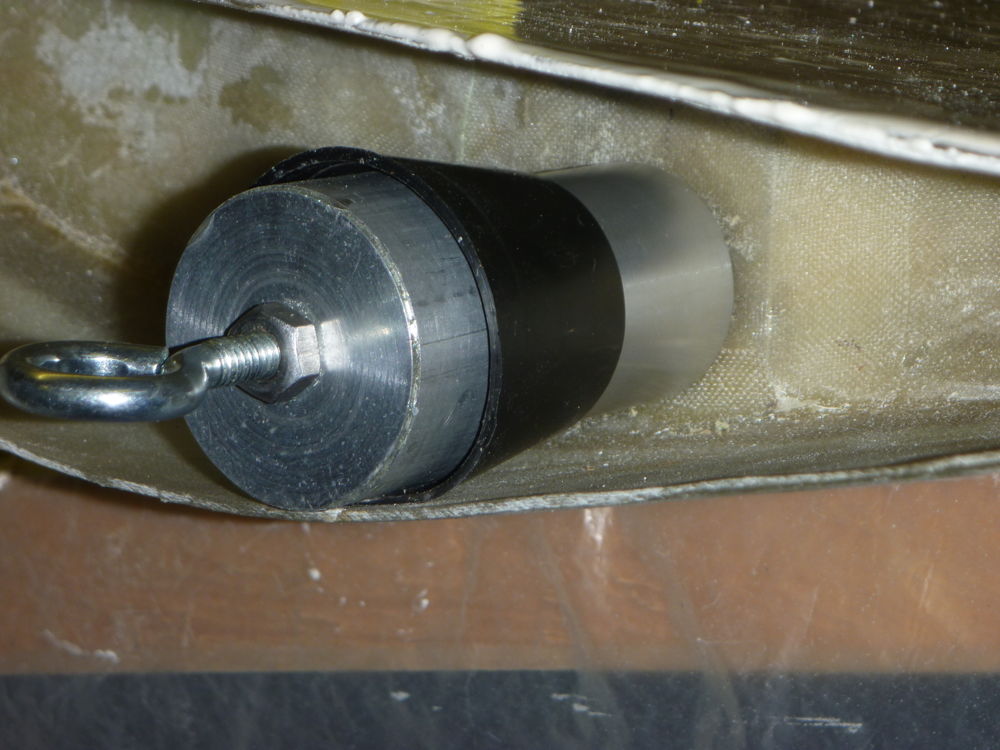

flap tube rigging guide on alignment fixture

flap tube rigging guide on alignment fixture: 2017-05-27 Panasonic DMC-FT1

The flap tube guide on the alignment fixture, in place on the flap pin.
