bonding in flap cross-tube guide

2 pictures on this page - scroll down to see the rest

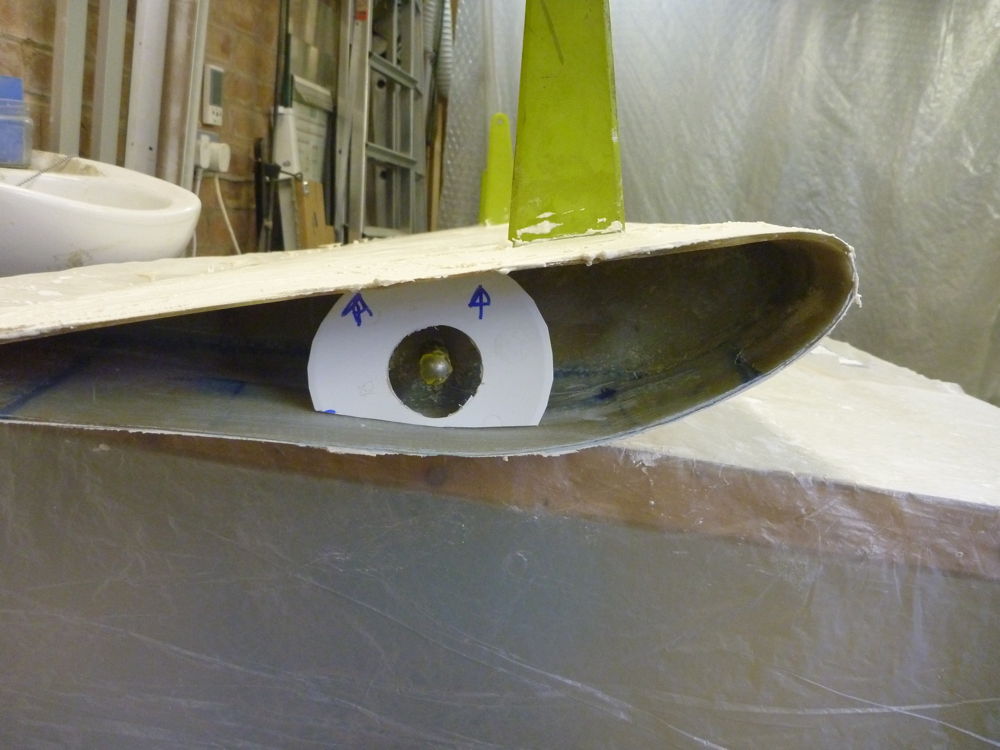

plastic barrier for flap tube guide layup

plastic barrier for flap tube guide layup: 2017-05-29 Panasonic DMC-FT1

A piece of plastic cut to form a barrier against migration of flox and BID during bonding of the flap tube guide. The central hole in the plastic fits over the guide alignment fixture.

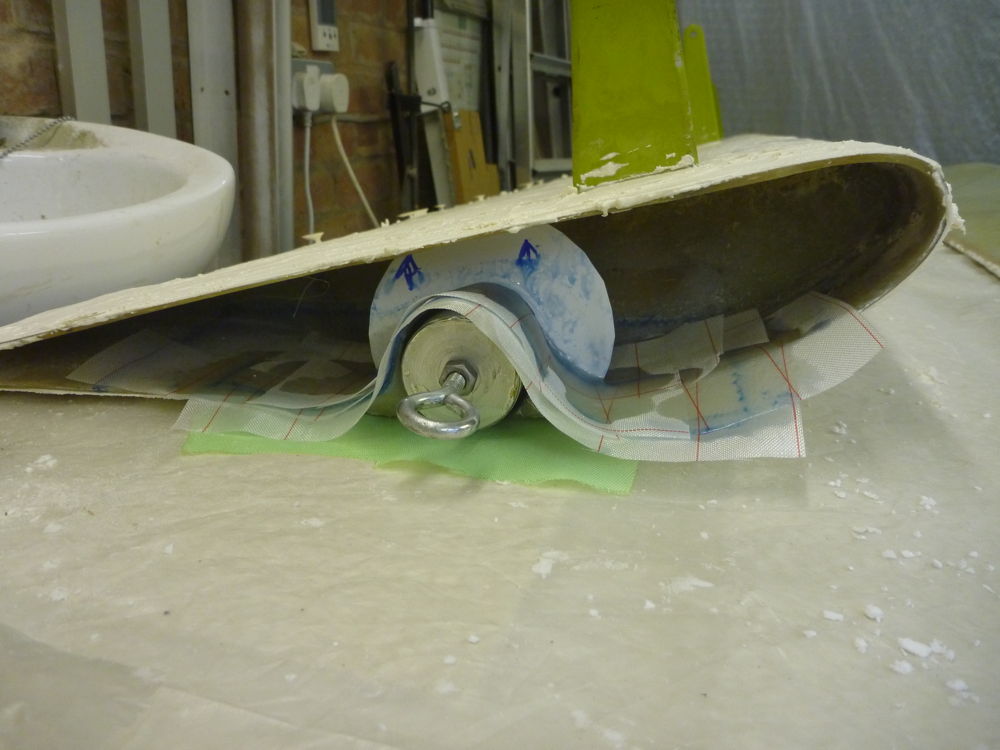

flap tube guide layup

flap tube guide layup: 2017-05-29 Panasonic DMC-FT1

Bonding in the flap tube guide. There is a bed of flox under the guide, built up each side in a fillet, with 4 layers of BID over and extending onto the flap root flange.
