Flap bracket alignment tools

3 pictures on this page - scroll down to see the rest

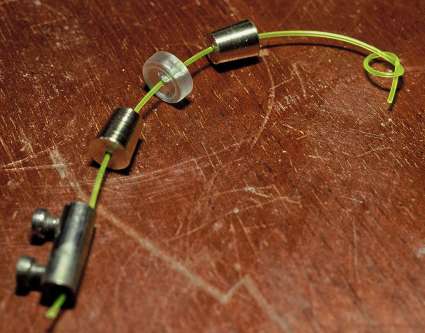

fl1-2-3 alignment tools

Flap bracket alignment tools: 2002 08 30.

Canon AV-1, Fujichrome Velvia 50.

These parts are to ensure that a line passing through the bushes in the flap brackets FL1, FL2, and FL3 will be centred in the bush holes. I turned up 2 tapered brass plugs and one acrylic target disc.

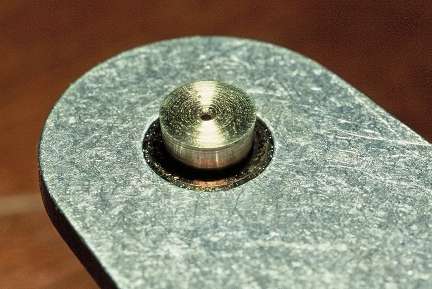

Flap bracket alignment - taper plug

fl1-2-3 alignment plug

Flap bracket alignment - taper plug: 2002 08 30.

Canon AV-1, Fujichrome Velvia 50.

Here is one taper plug resting in the bush of an outer flap bracket.

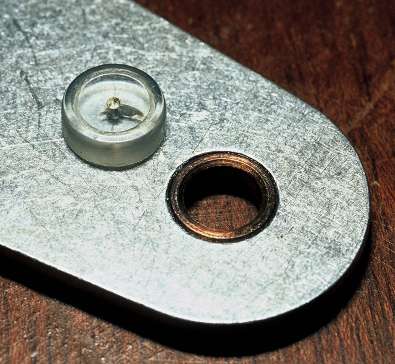

Flap bracket alignment - target

fl1-2-3 alignment target

Flap bracket alignment - acrylic target: 2002 08 30.

Canon AV-1, Fujichrome Velvia 50.

Here is the clear acrylic target beside the bush of a centre flap bracket. The outer diameter of the target matches that of the bush, and it has an inscribed circle on one face matching the inner diameter of the bush. You'll notice that despite taking some care in drilling the central hole, I have managed to start a radial crack in the acrylic.
