first plan of items on firewall

trial outlines of firewall items

trial outlines of firewall items: 2016-05-10 Panasonic DMC-FT1

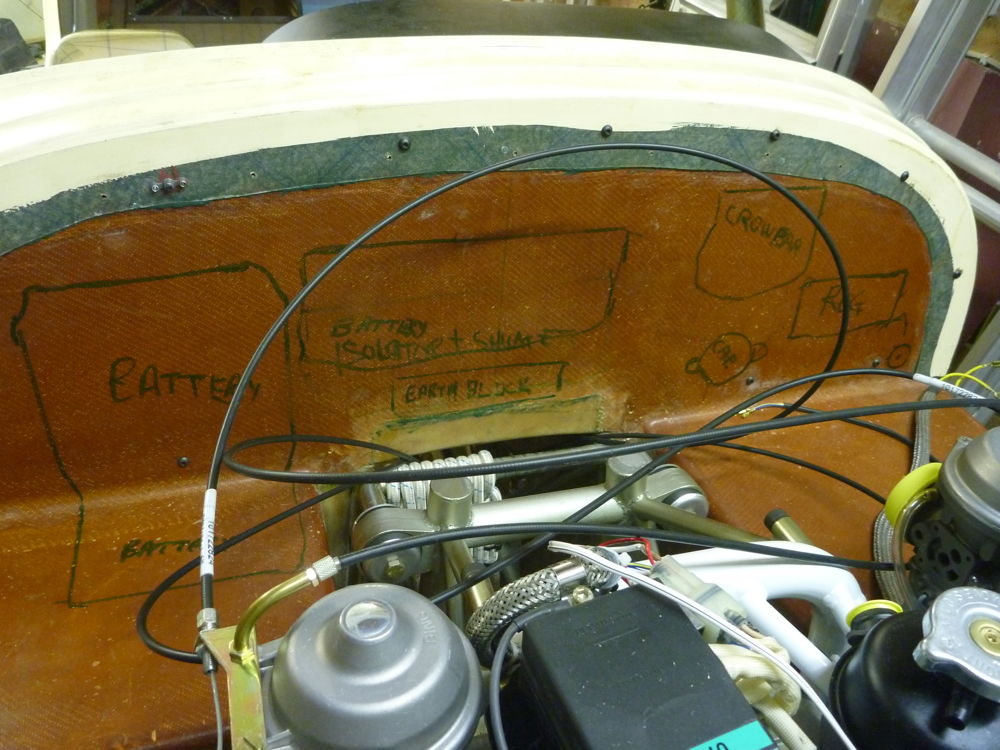

Some possible mounting locations marked out for firewall-forward items. Left to right: battery, battery isolator and ammeter shunt assembly, earth feed-through block, crowbar and associated parts assembly, capacitor, regulator, mag lead feed-through.
