trial fit of cooling duct
|
|
trial fit of cooling duct |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest

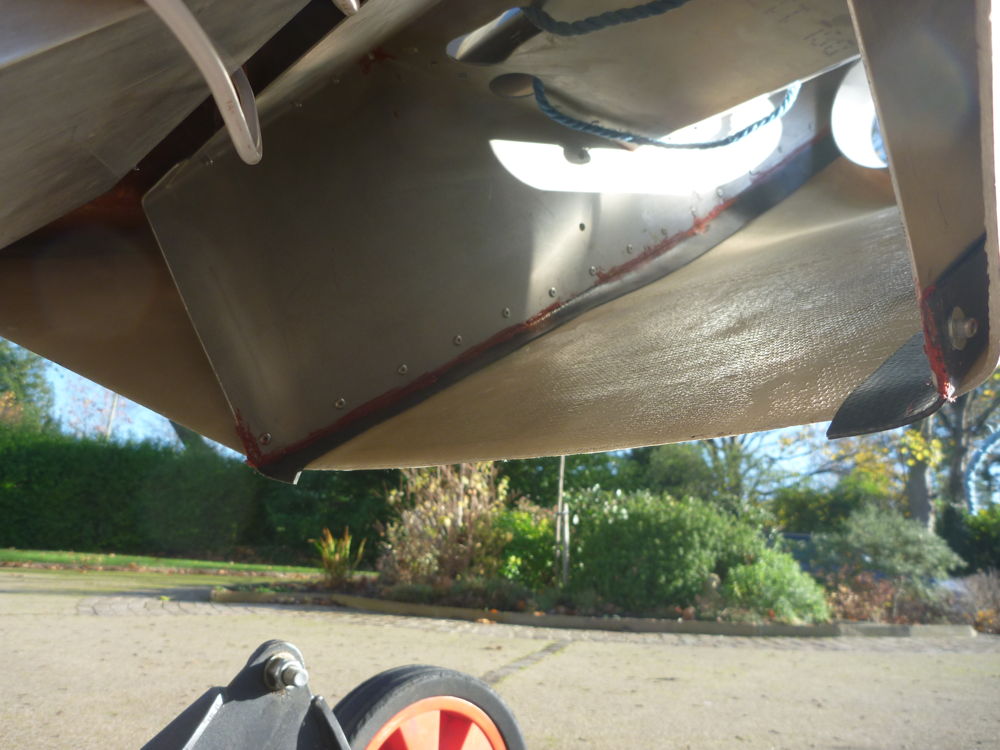

trial fit of cooling duct: 2016-11-25 Panasonic DMC-FT1
First trial fitting of the cooling duct with the lower cowl in position on the fuselage. The bottom edges of the duct sides are firmly against the inside of the cowl, particularly at the aft end.

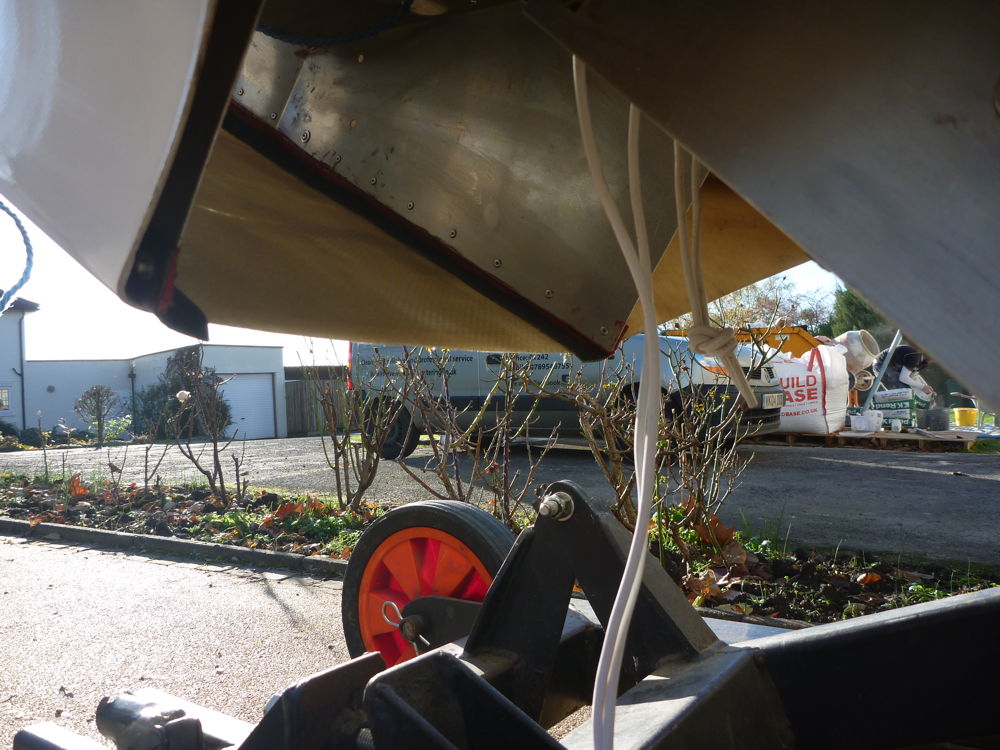

trial fit of cooling duct: 2016-11-25 Panasonic DMC-FT1
First trial fitting of the cooling duct with the lower cowl in position on the fuselage. The bottom edges of the duct sides are firmly against the inside of the cowl, particularly at the aft end.

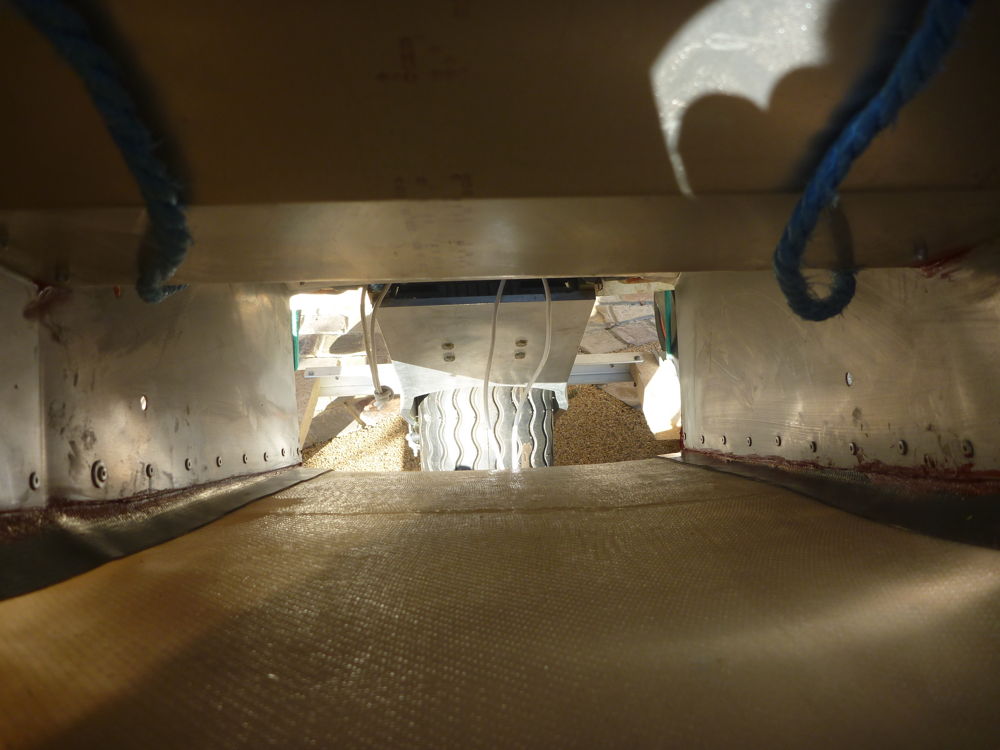

trial fit of cooling duct: 2016-11-25 Panasonic DMC-FT1
First trial fitting of the cooling duct with the lower cowl in position on the fuselage. Looking aft through the cowl lower inlet aperture. The bottom edges of the duct sides are firmly against the inside of the cowl, particularly at the aft end.

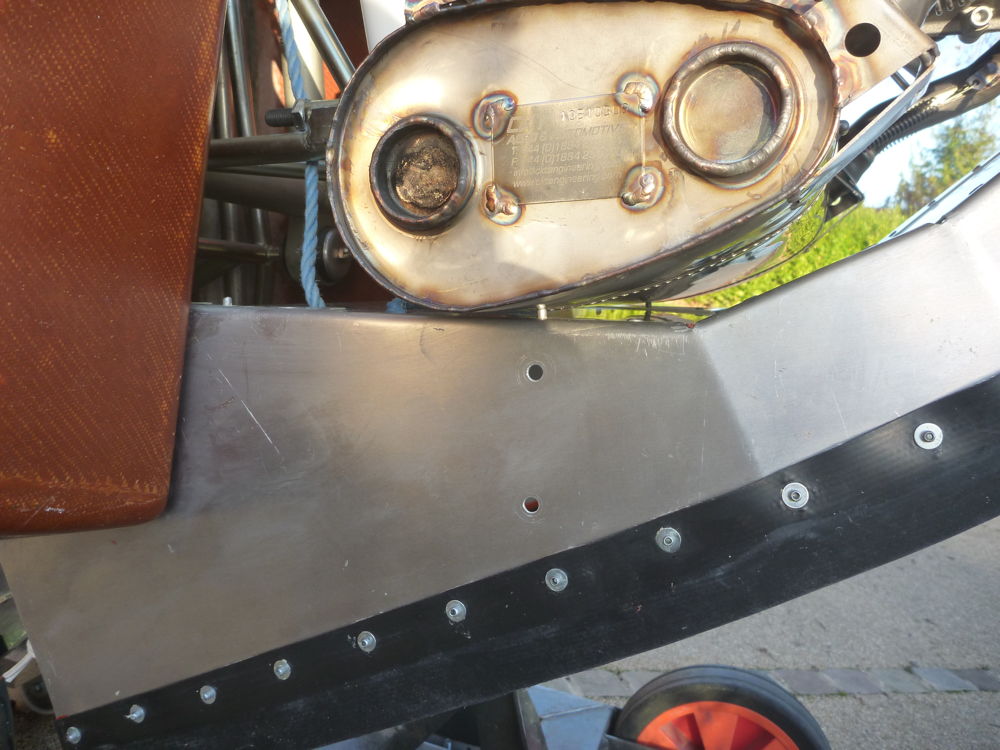

trial fit of cooling duct: 2016-11-25 Panasonic DMC-FT1
The position of the cooling duct after trying to get it in the correct place within the lower cowl. After adjusting the duct position and re-tying the suspending ropes to hold it in place, removal of the cowl shows that more clearance is needed from the exhaust silencer.
