cooling duct with first fit of seals

2 pictures on this page - scroll down to see the rest

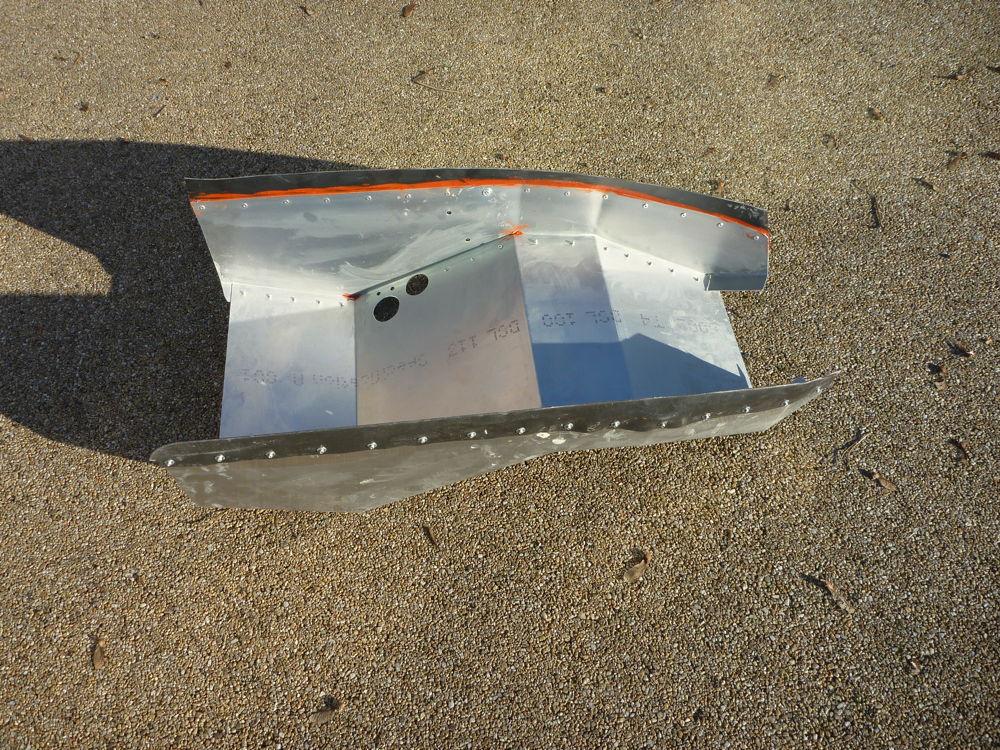

cooling duct with rubber seals

cooling duct with rubber seals: 2016-11-29 Panasonic DMC-FT1

The cooling duct with the rubber seals fitted along its lower edges, ready for a trial fit in the cowl.

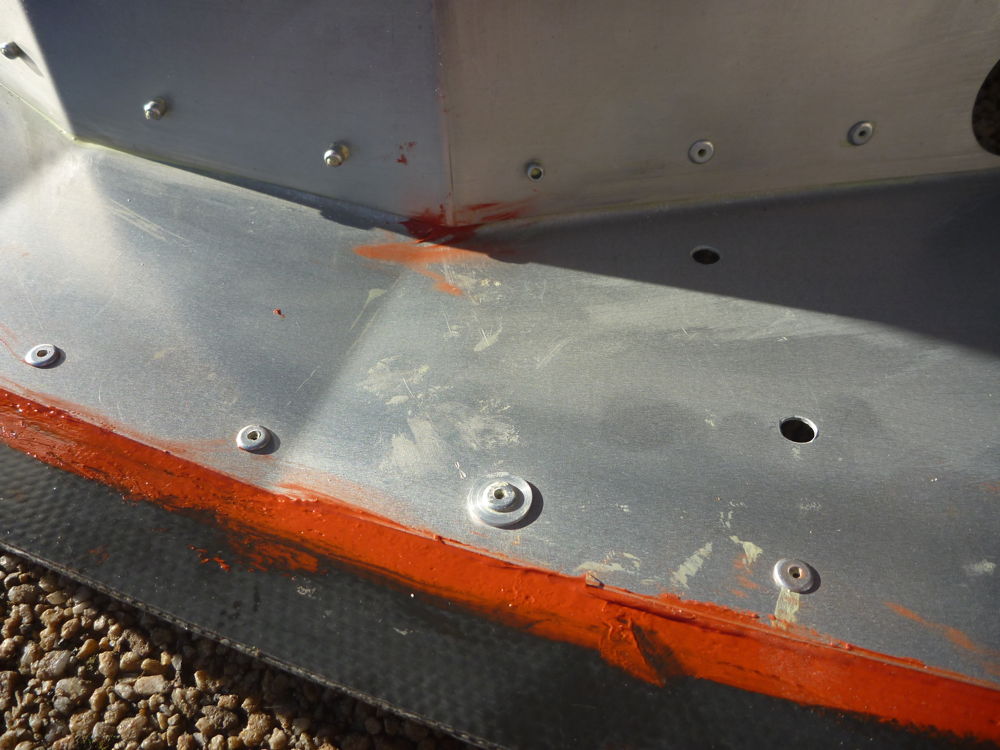

repair washer for oversize rivet hole

repair washer for oversize rivet hole: 2016-11-25 Panasonic DMC-FT1

The stepped washer in the rivet hole that was accidentally drilled out too large. Obviously I would not use this technique in a structural application, but to hold the rubber seal on the cooling duct it is OK.
