cooling duct fitting: 2017-02-24 Panasonic DMC-FT1

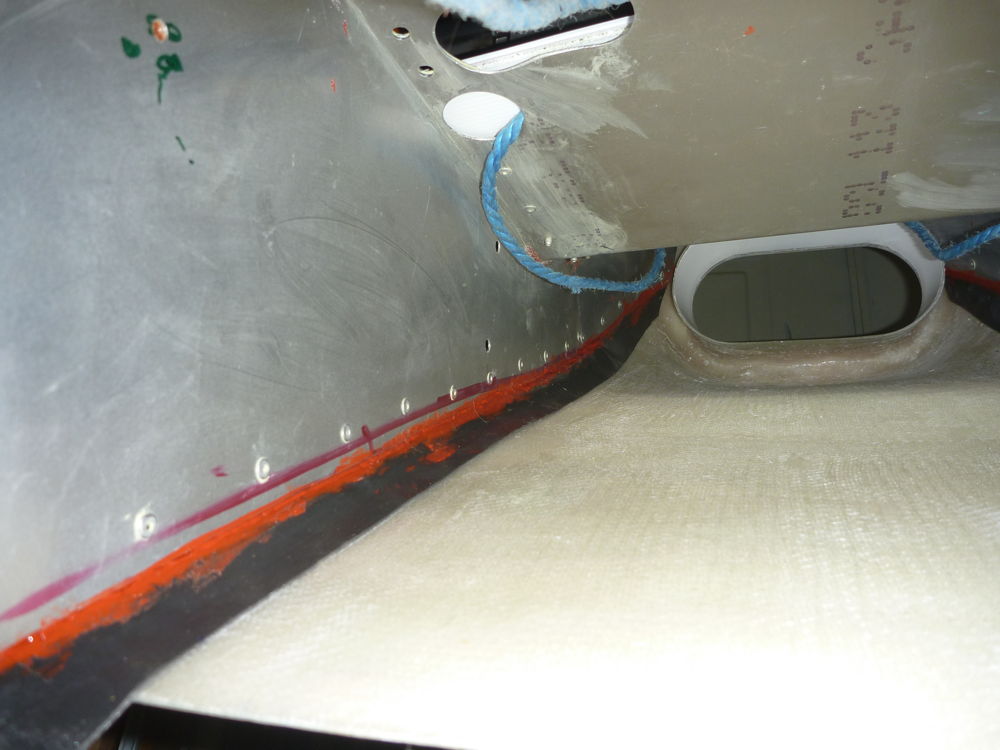

The cooling duct after a 2nd trim of the sides and the re-fitting of the rubber seals, looking in aftwards from the air inlet. The blue ropes are to hold the duct in position while the lower cowl is being fitted.
cooling duct fitting: 2017-02-24 Panasonic DMC-FT1

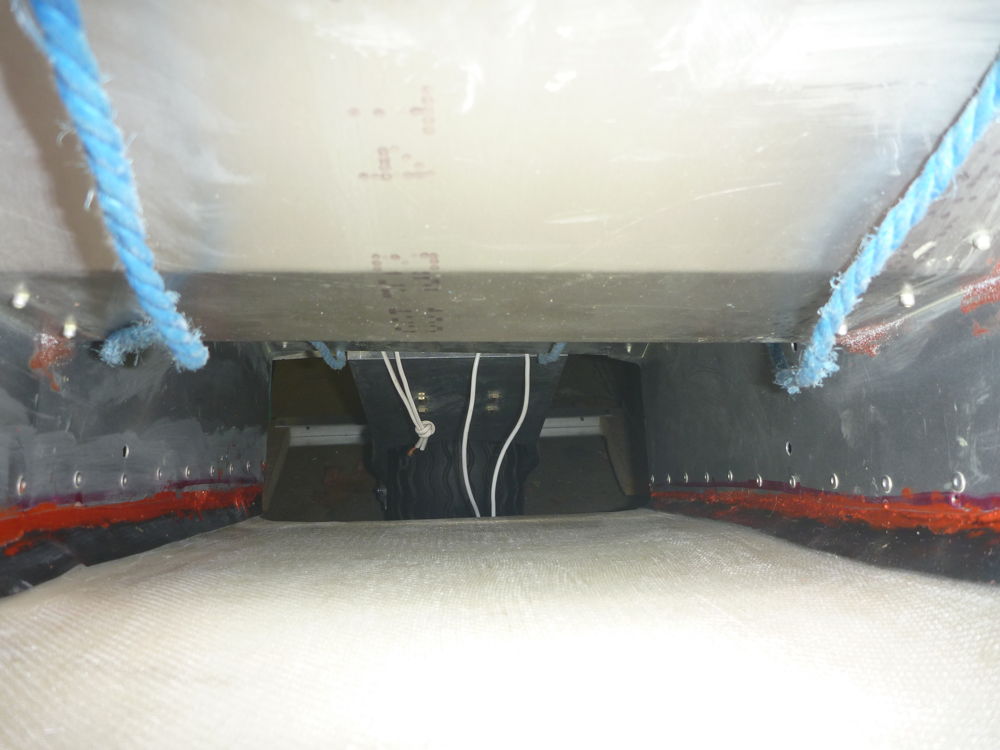

The cooling duct after a 2nd trim of the sides and the re-fitting of the rubber seals, looking forward along the port side from the air outlet. The blue ropes are to hold the duct in position while the lower cowl is being fitted.
cooling duct fitting: 2017-02-24 Panasonic DMC-FT1

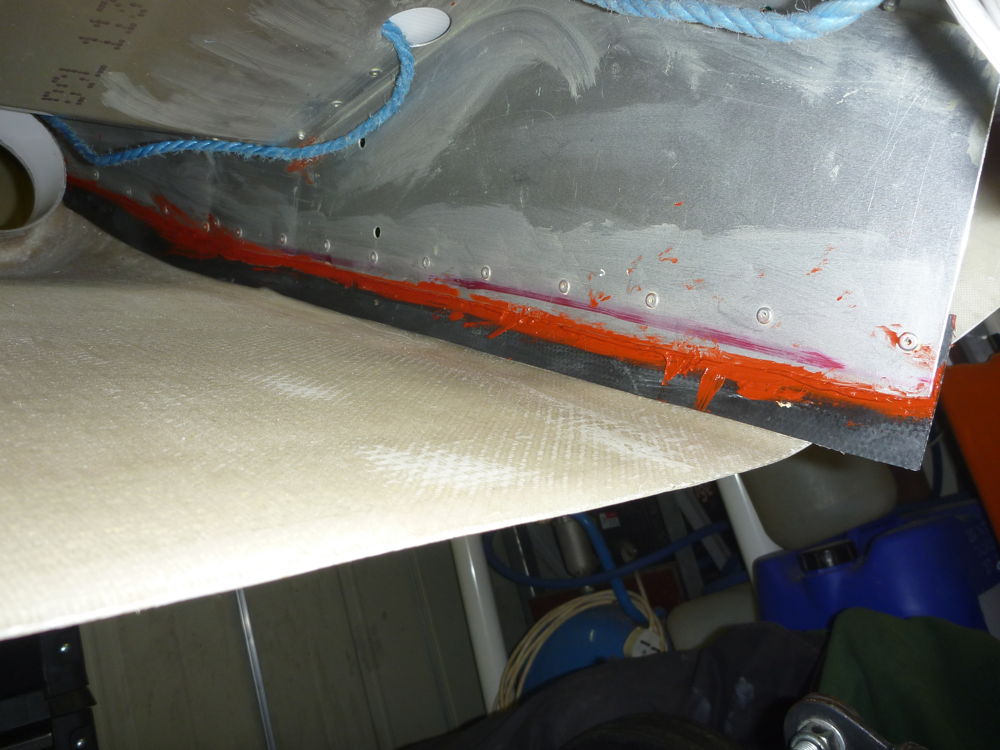

The cooling duct after a 2nd trim of the sides and the re-fitting of the rubber seals, looking forward along the starboard side from the air outlet. The blue ropes are to hold the duct in position while the lower cowl is being fitted.
