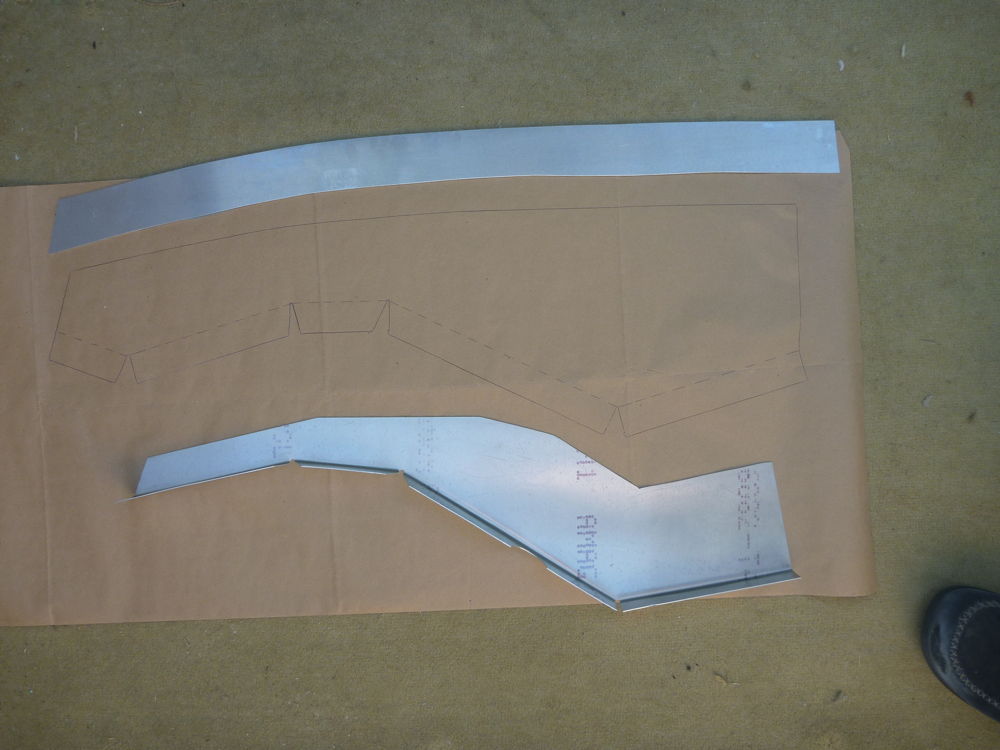

The duct underneath the engine needs to be a different shape for Neville Eyre's cowl. Here is the paper template Neville sent me, with the original factory-supplied CD3 and the extension piece Neville supplied.


duct metalwork and template

duct metalwork and template: 2016-09-22 Panasonic DMC-FT1

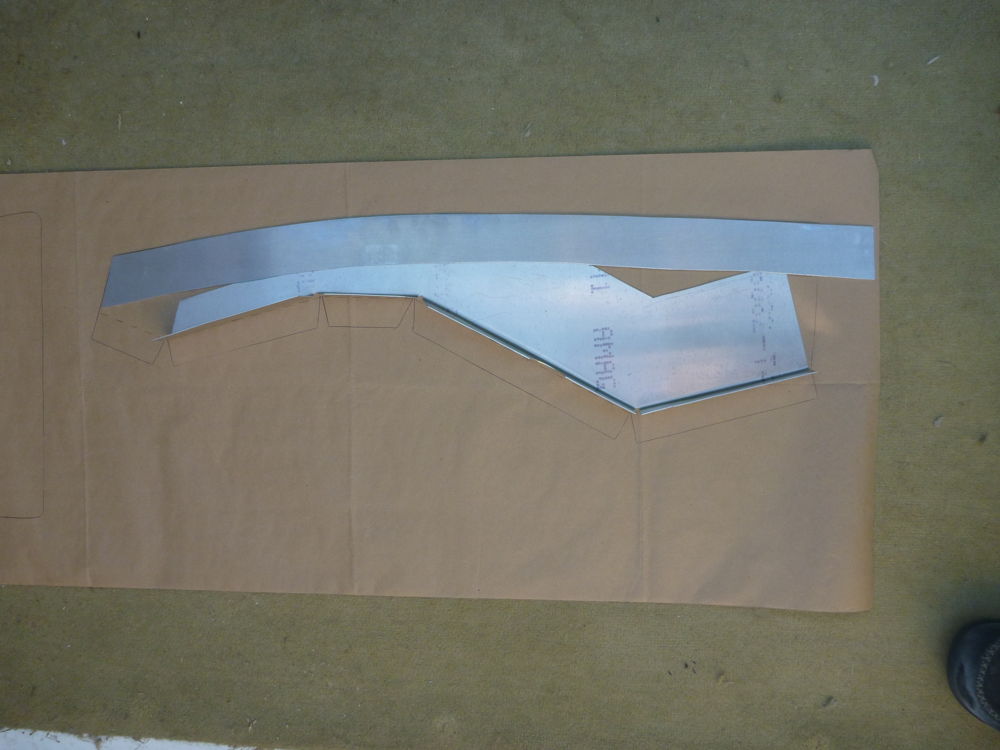

The duct underneath the engine needs to be a different shape for Neville Eyre's cowl. Here is the paper template Neville sent me, with the original factory-supplied CD3 and the extension piece Neville supplied laid over it. Looks like Neville didn't have the outline of the original handy when he cut the extension piece. When I sent him this picture, he says he will make new pieces.
