card template for aft baffle unfolded

card mock-up for aft baffle unfolded

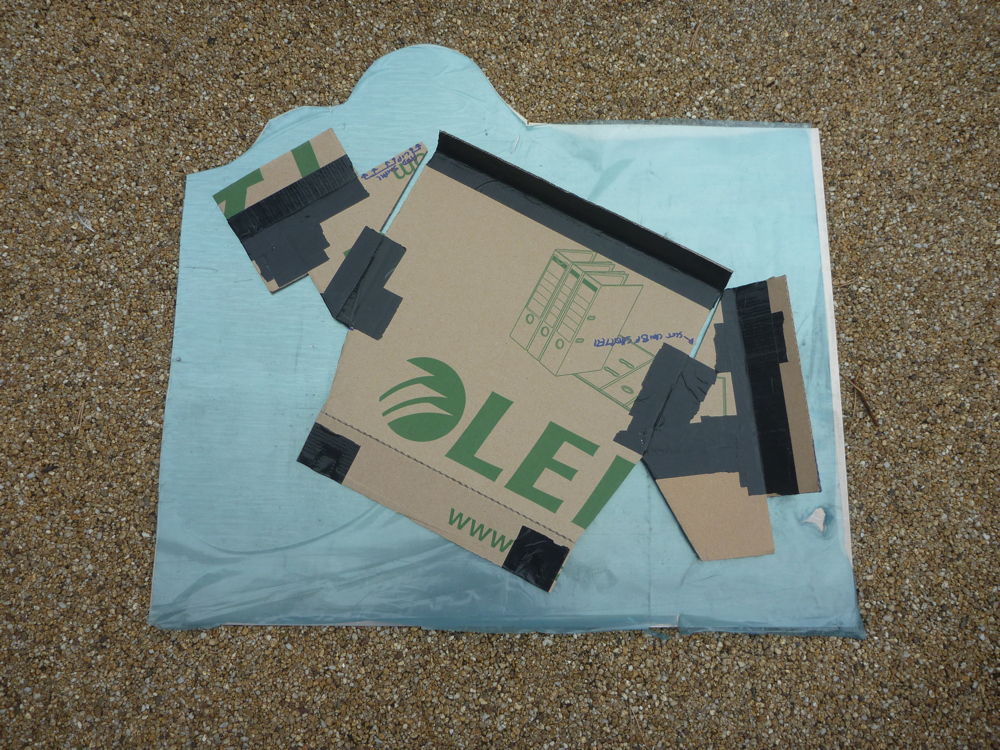

card mock-up for aft baffle unfolded: 2016-09-17 Panasonic DMC-FT1

The cardboard mock-up of the baffle for the aft part of the engine compartment unfolded and laid onto the piece of aluminium sheet that that the baffle will be cut from.
