duct side puzzle

duct metalwork mis-match

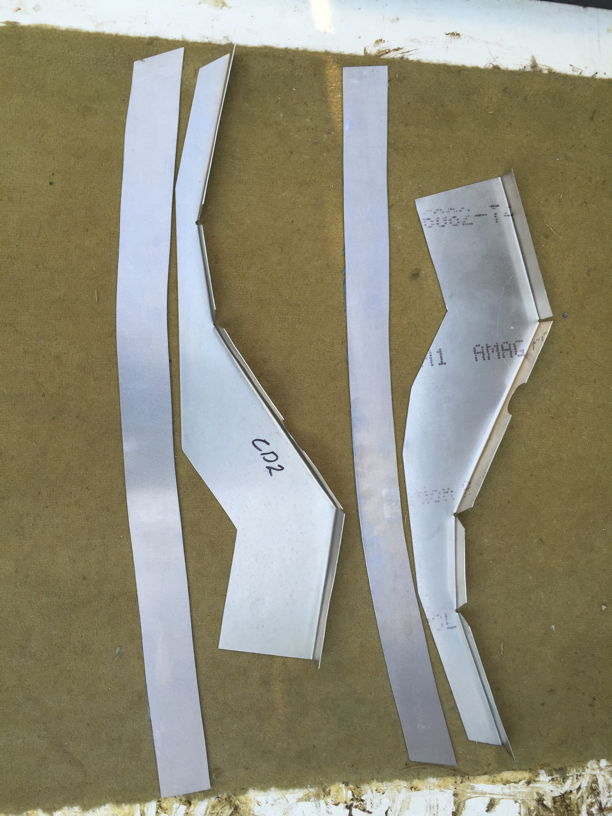

duct metalwork mis-match: 2016-09-14 Apple iPhone 6

The duct underneath the engine needs to be a different shape for Neville Eyre's cowl. Neville supplied a couple of extension strips to add to the original factory-supplied CD2 & CD3. However, this picture shows that I was having difficulty understanding how the parts match up to each other.
