starboard baffle forward bend

right-arrow
index sitemap advanced
search engine by freefind
notepad Navigation & Acknowledgements

starboard baffle forward bend

2 pictures on this page - scroll down to see the rest

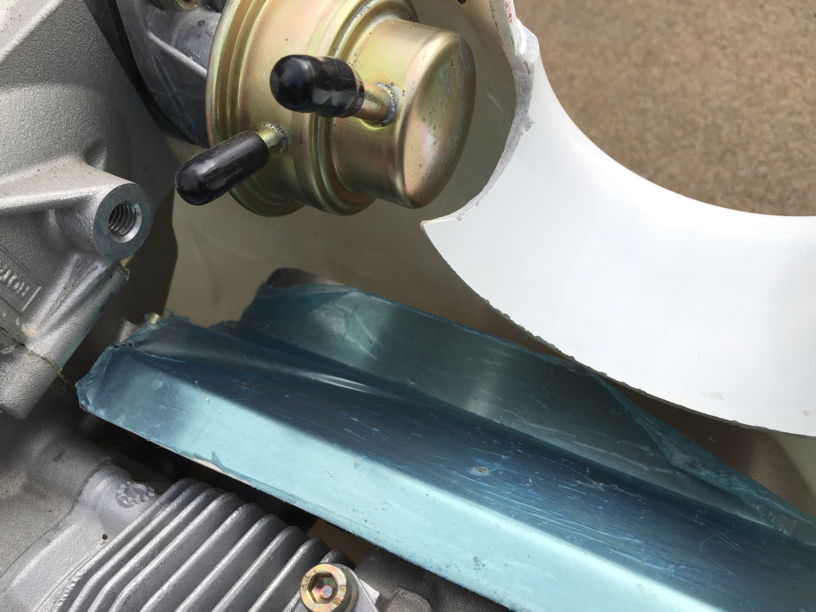

starboard forward baffle shy of cowl lip

starboard forward baffle shy of cowl lip: 2016-09-14 Apple iPhone 6

This shows the gap between the starboard forward baffle and the cowl lip, to which it should be attached. I needed to straighten the upper bend slightly, and reposition the lower one to line up with the cowl lip.

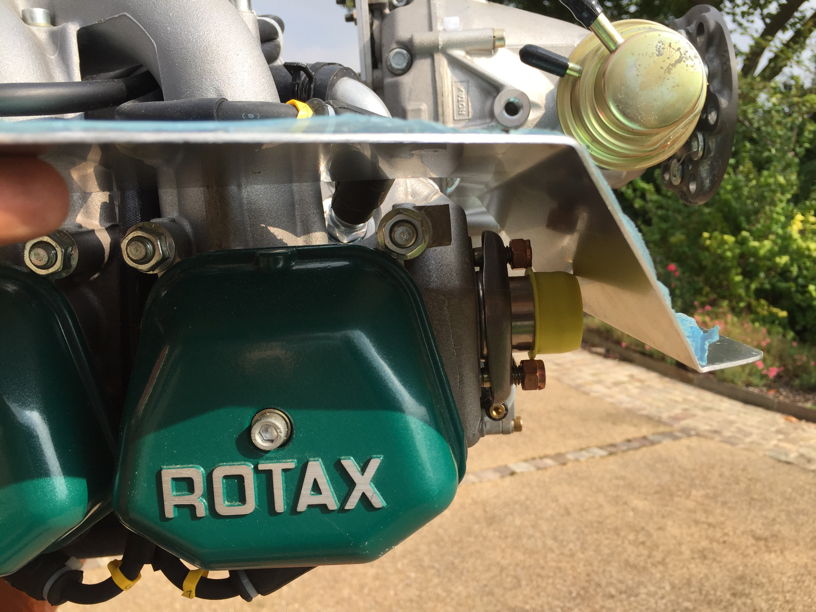

starboard baffle forward end

starboard baffle forward end: 2016-09-14 Apple iPhone 6

The forward end of the starboard forward baffle, showing how near it is to the exhaust stub. Straightening the bend to bring it into alignment with the cowl lip will give more clearance from the exhaust.
