starboard baffle fitting

index sitemap advanced
search engine by freefind
notepad Navigation & Acknowledgements

starboard baffle fitting

2 pictures on this page - scroll down to see the rest

starboard baffles

starboard baffles: 2016-09-14 Apple iPhone 6

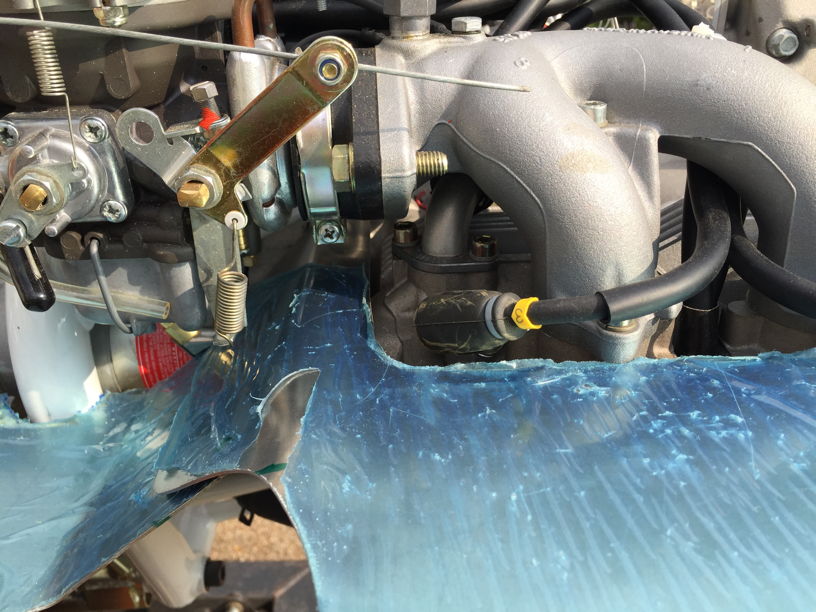

The starboard baffles placed in position to check the fit. Note the semi-circular cutaway at the far left to clear the engine mount (white tube). The large hole at lower left is for the oil tank.

starboard baffle postioning

starboard baffle postioning: 2016-09-14 Apple iPhone 6

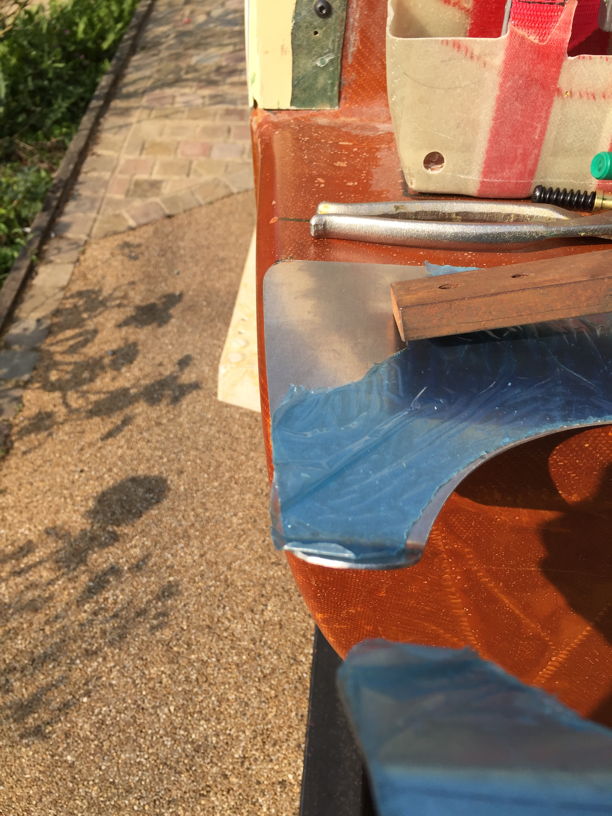

A trial positioning of the starboard baffles. The large cut-out on the right is for the oil tank.
