gaps in duct around coolers

2 pictures on this page - scroll down to see the rest

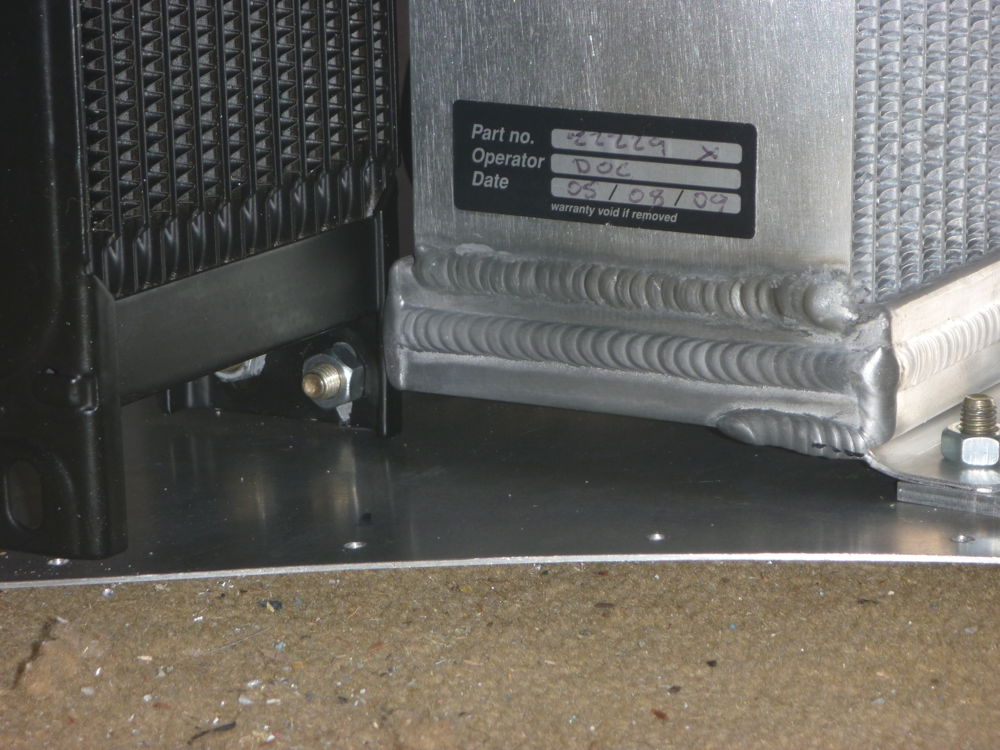

cooling duct gaps

cooling duct gaps: 2016-10-21 Panasonic DMC-FT1

The oil cooler (left) and water radiator (right) test-assembled to the cooling duct. Visible here are the gaps between the coolers and the duct side, which will have to be sealed.

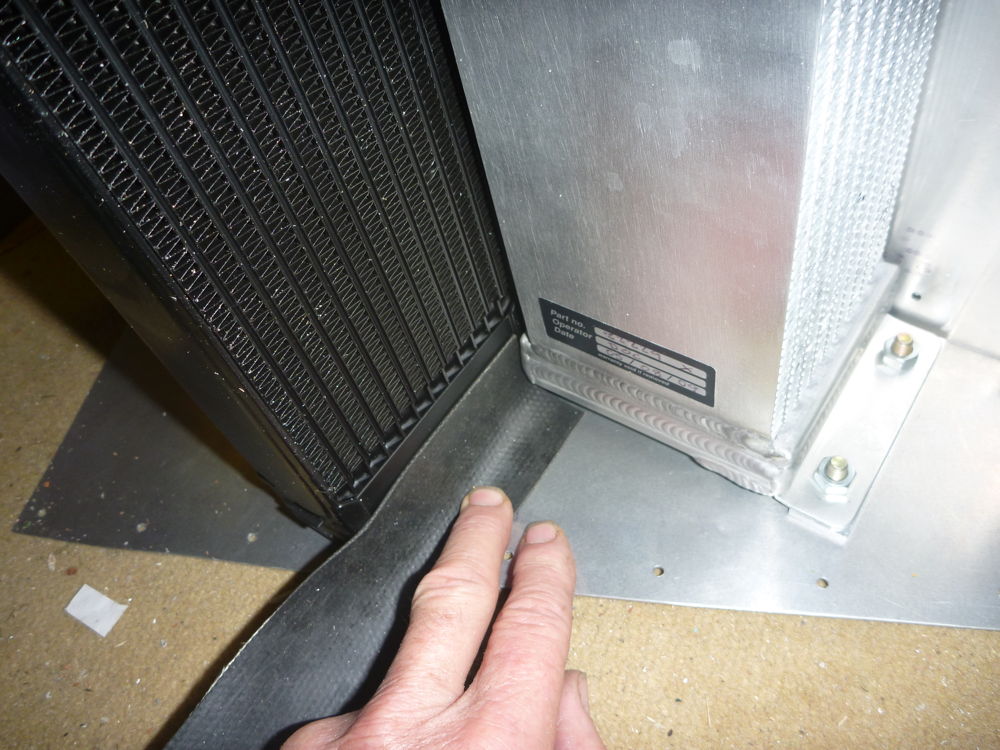

cooling duct gap sealing trial

cooling duct gap sealing trial: 2016-10-21 Panasonic DMC-FT1

Rubber sealing strip offered up to the end of the oil cooler to check if it will work to seal off the gap between the oil cooler and the duct side.
