trial fit of oil cooler

4 pictures on this page - scroll down to see the rest

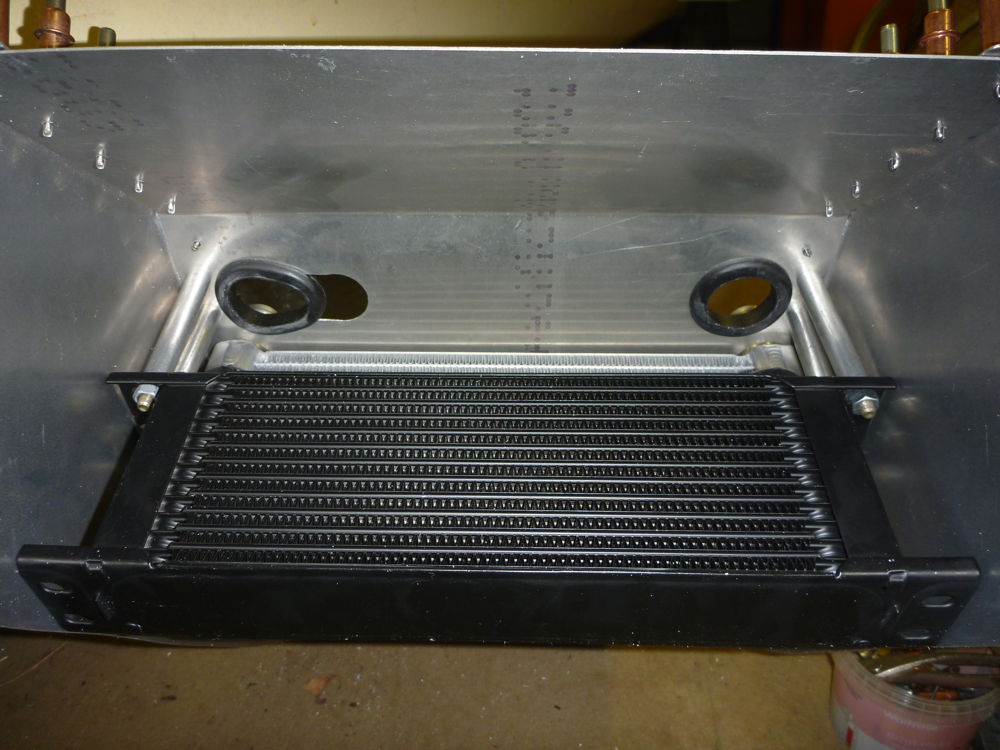

cooling duct with coolers fitted

cooling duct with coolers fitted: 2016-10-21 Panasonic DMC-FT1

The oil cooler (front) and water radiator (behind) test-assembled to the cooling duct. Here the grommets have been fitted to the holes for the oil pipes.

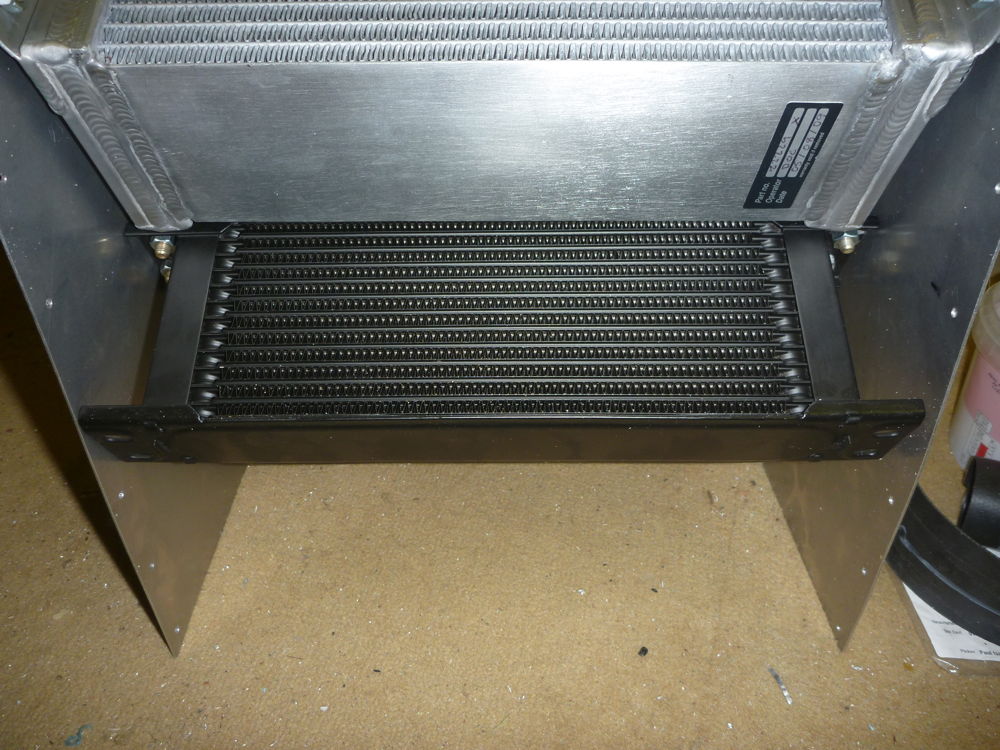

cooling duct with coolers fitted

cooling duct with coolers fitted: 2016-10-21 Panasonic DMC-FT1

The water radiator (above) and oil cooler (below) test-assembled to the cooling duct. Here the grommets have been fitted to the holes for the oil pipes.

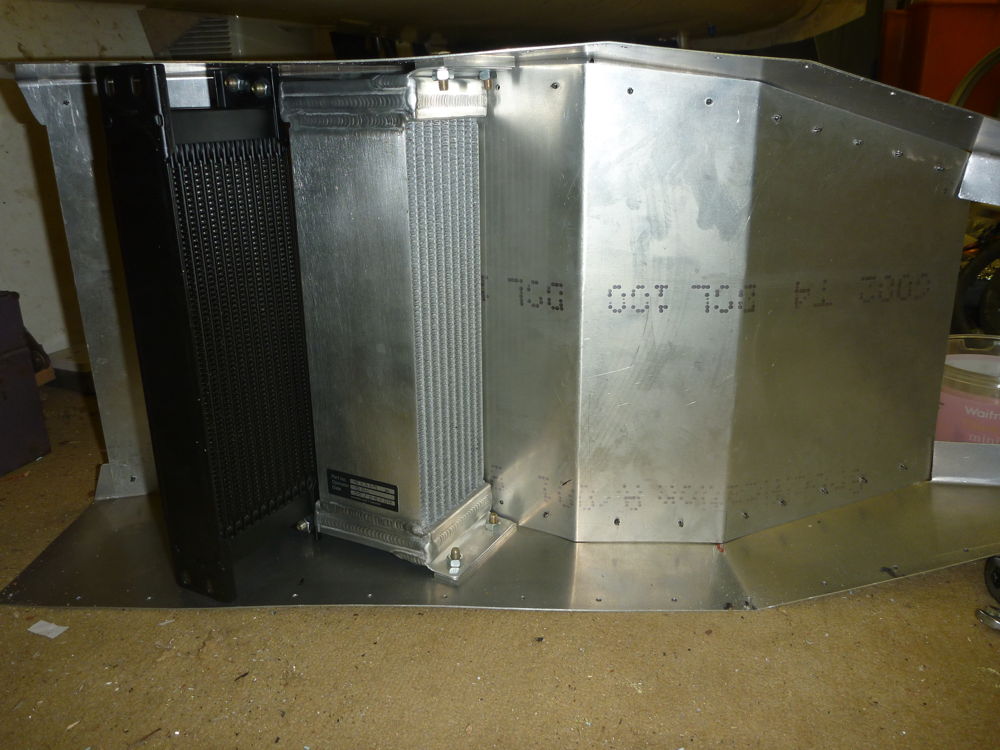

radiators test fitted to cooling duct

radiators test fitted to cooling duct: 2016-10-21 Panasonic DMC-FT1

The oil cooler (left) and water radiator (right) test-assembled to the cooling duct.

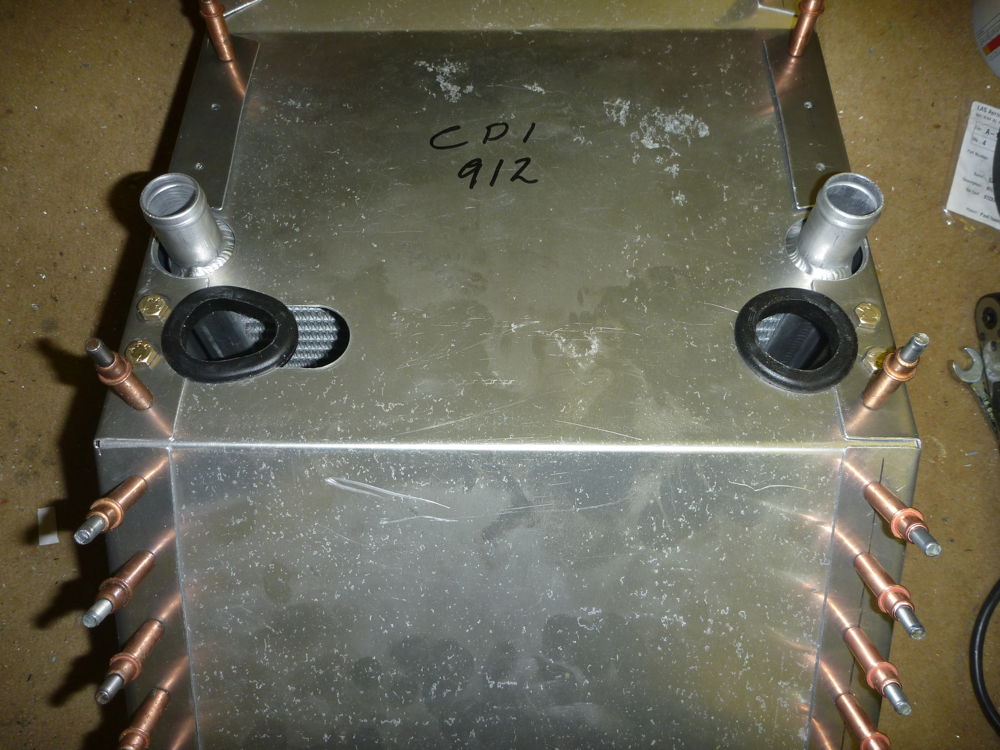

cooling duct with coolers fitted

cooling duct with coolers fitted: 2016-10-21 Panasonic DMC-FT1

The water radiator test-assembled to the cooling duct. Here the grommets have been trial fitted to the holes for the oil pipes.
