door mechanism assembled
|
|
door mechanism assembled |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

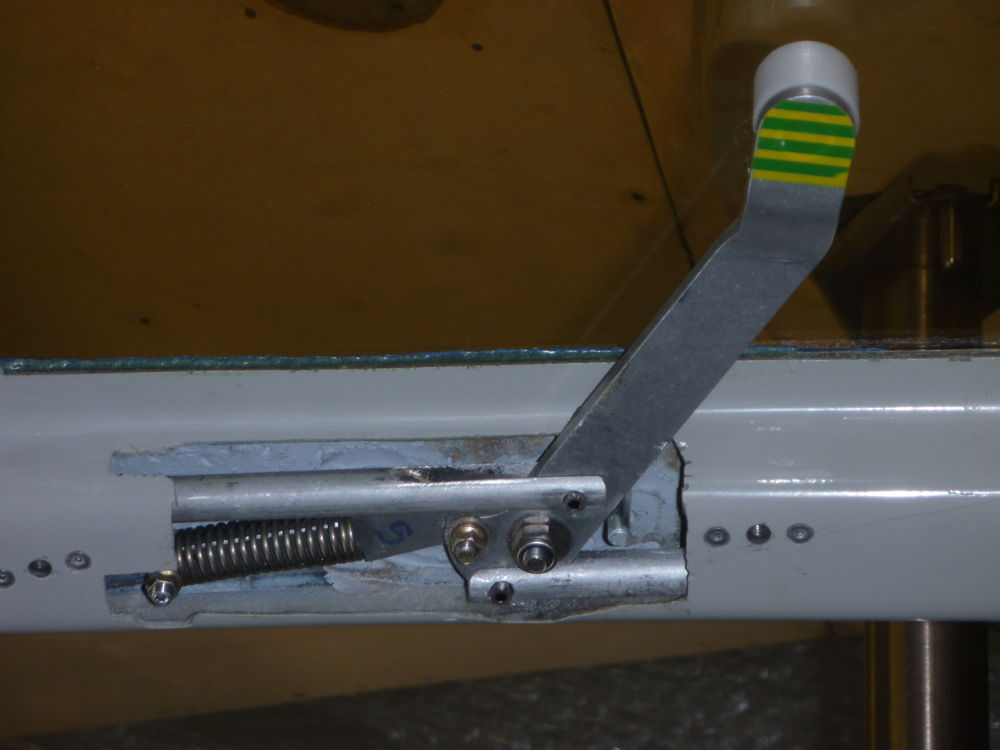

starboard door mechanism installed: 2023-03-07 Panasonic DMC-FT1
The starboard door mechanism installed, with EURO07 roll pins fitted to both upper (forward) and lower (aft) shoot-bolt pushrods. Handle shown in closed position.

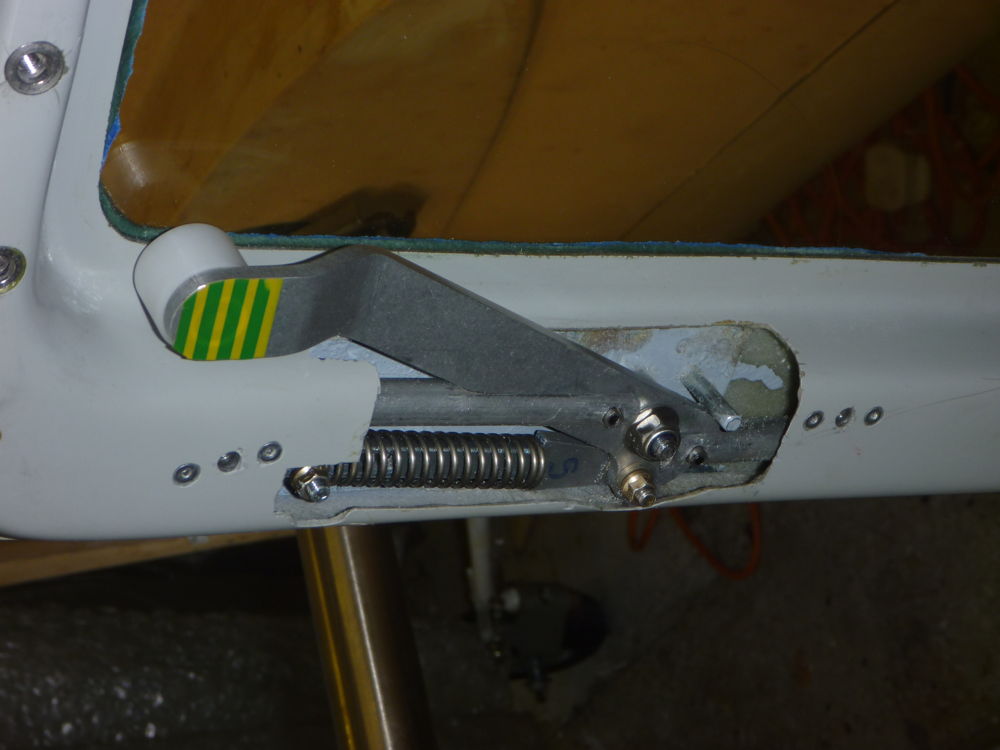

starboard door mechanism installed: 2023-03-07 Panasonic DMC-FT1
The starboard door mechanism installed, with EURO07 roll pins fitted to both upper (forward) and lower (aft) shoot-bolt pushrods. Handle shown in open position.
