assembling door mechanism
|
 |
assembling door mechanism
installing starboard door mechanism: 2023-03-07 Panasonic DMC-FT1

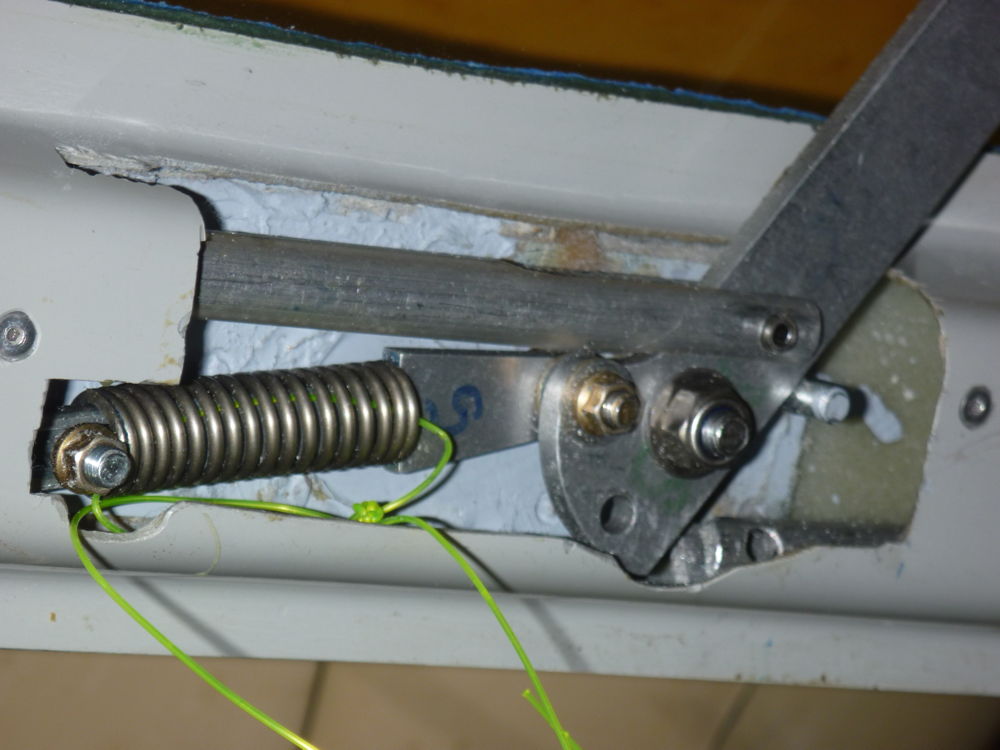

The internal mechanism of the starboard door partly assembled. The DL05 spring guide has been fitted to the stud on the DL02 plate, but the nylon line holding the DL09 spring is still in position, just in case! The EURO07 roll pin has been inserted into the upper (forward) shoot-bolt pushrod.
|
This page last updated 2023-04-03.
