latch test fit on stbd cowl hatch
|
|
latch test fit on stbd cowl hatch |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest

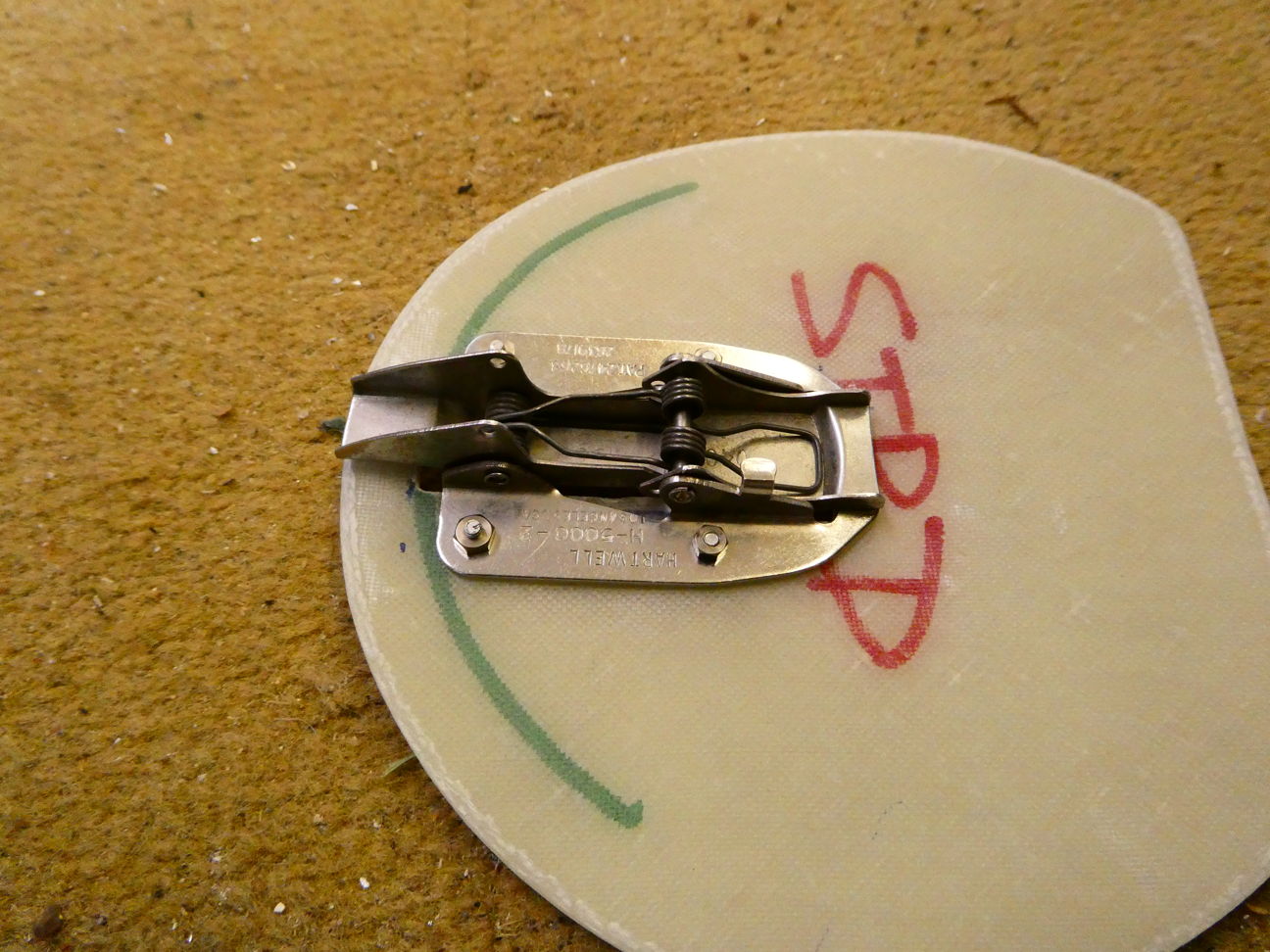

cowl hatch latch test fit: 2023-08-31 Panasonic DC-TZ90
The Hartwell latch test fitted to the hatch cover with temporary 8BA screws. Latch in closed position, underside view.

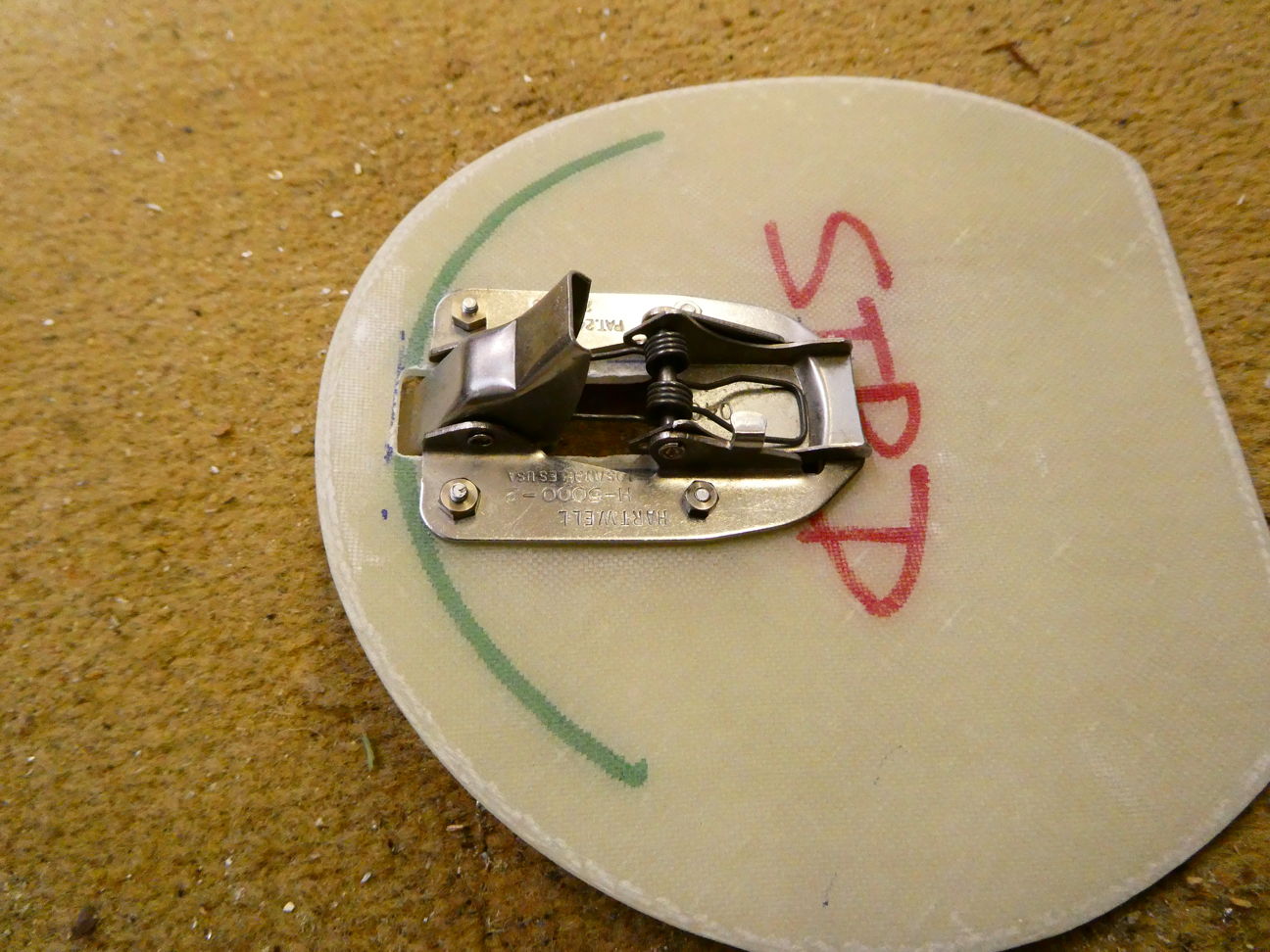

cowl hatch latch test fit: 2023-08-31 Panasonic DC-TZ90
The Hartwell latch test fitted to the hatch cover with temporary 8BA screws. Latch in open position, underside view.

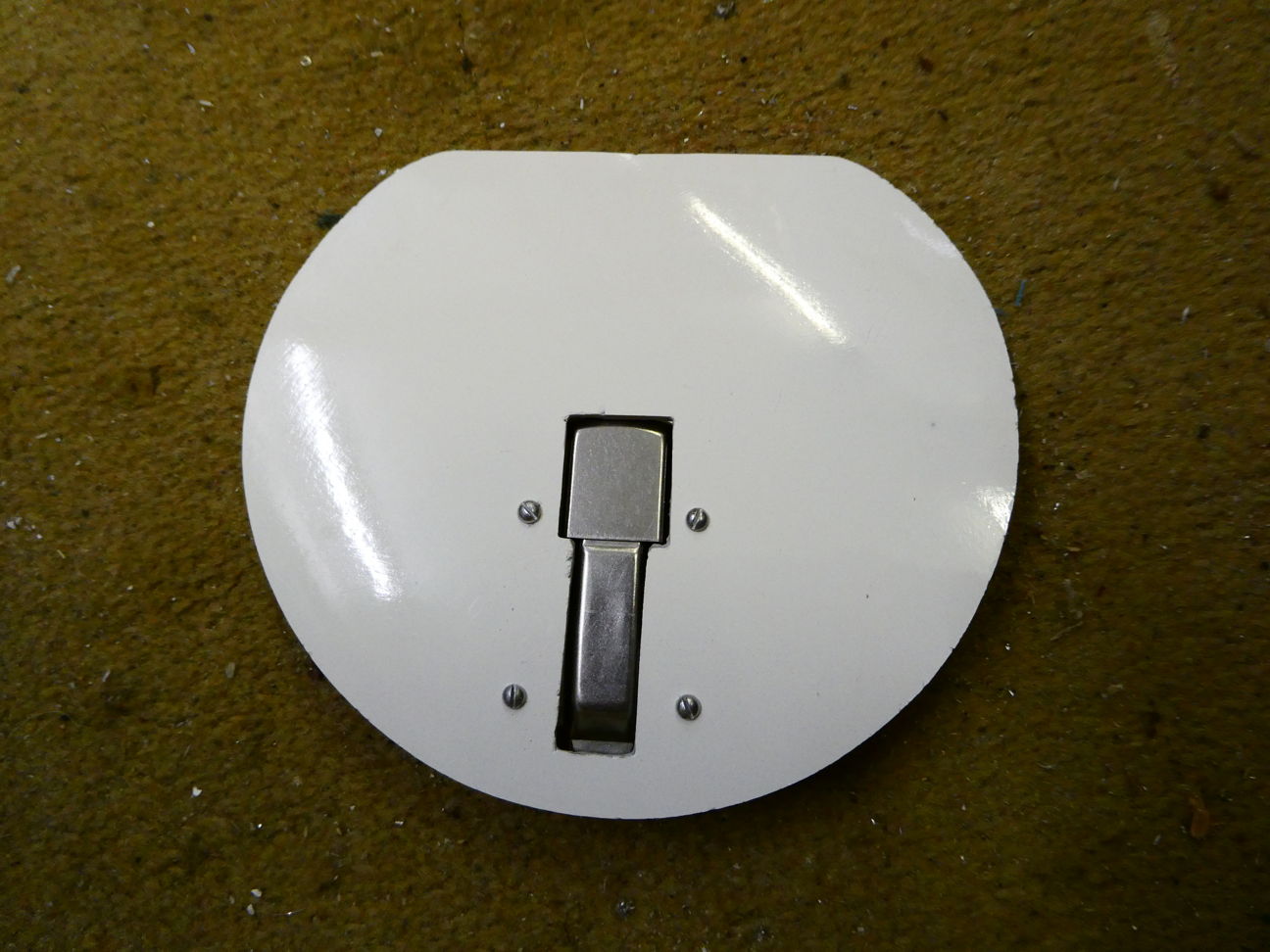

cowl hatch latch test fit: 2023-08-31 Panasonic DC-TZ90
The Hartwell latch test fitted to the hatch cover with temporary 8BA screws. Latch in closed position, top view.

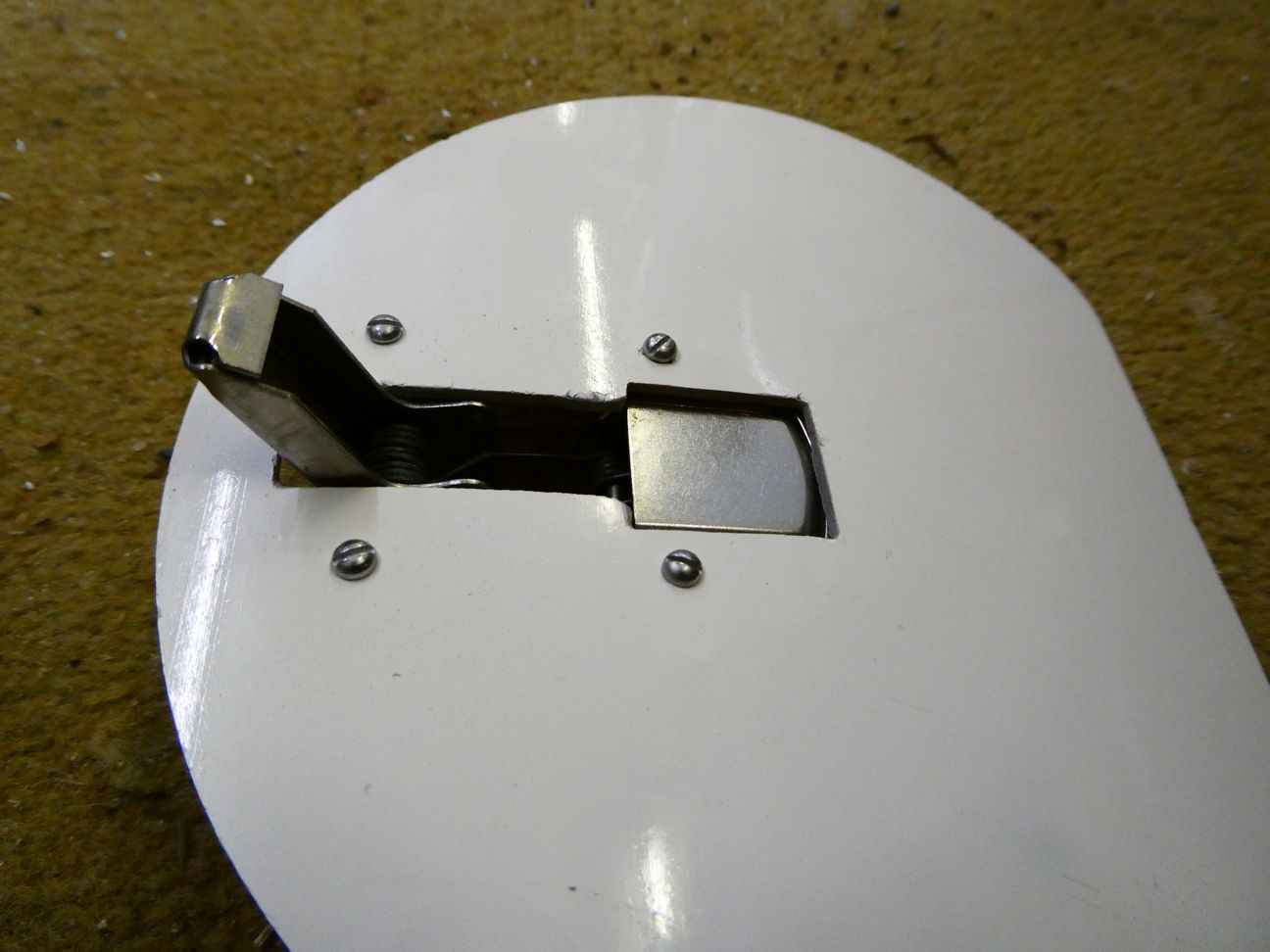

cowl hatch latch test fit: 2023-08-31 Panasonic DC-TZ90
The Hartwell latch test fitted to the hatch cover with temporary 8BA screws. Latch in open position, top view.
