Brake filler hole cover

4 pictures on this page - scroll down to see the rest

turning brake filler cover

turning brake filler cover: 2008-08-07

Nikon Coolpix 8400

A billet of aluminium offset in the 4-jaw chuck for turning the spigot of the brake filler cover. The piece of rectangular section aluminium at the back was needed not only to improve the balance but also to allow the jaws to grip on this very eccentric workpiece.

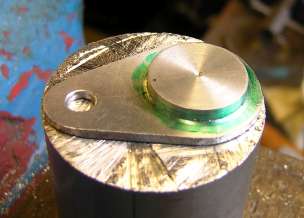

rough-cut brake filler cover

rough-cut brake filler cover: 2008-08-07

Nikon Coolpix 8400

The cover for the brake filler hole cut roughly to outline, sitting on top of the billet of aluminium from which it was made.

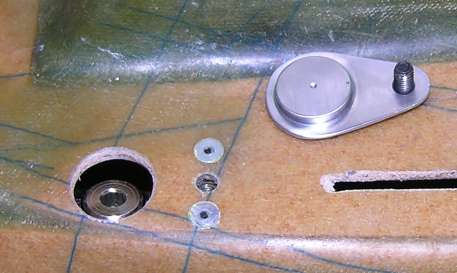

brake filler cover fitting

brake filler cover fitting: 2008-08-07

Nikon Coolpix 8400

The finished brake filler hole cover (upside-down) showing the mounting arrangment.

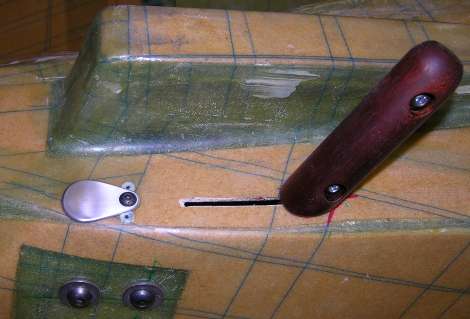

brake filler cover fitted

brake filler cover fitted: 2008-08-07

Nikon Coolpix 8400

The brake filler hole cover fitted.
