Aft baffle fuel hose slot changed
|
|
Aft baffle fuel hose slot changed |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

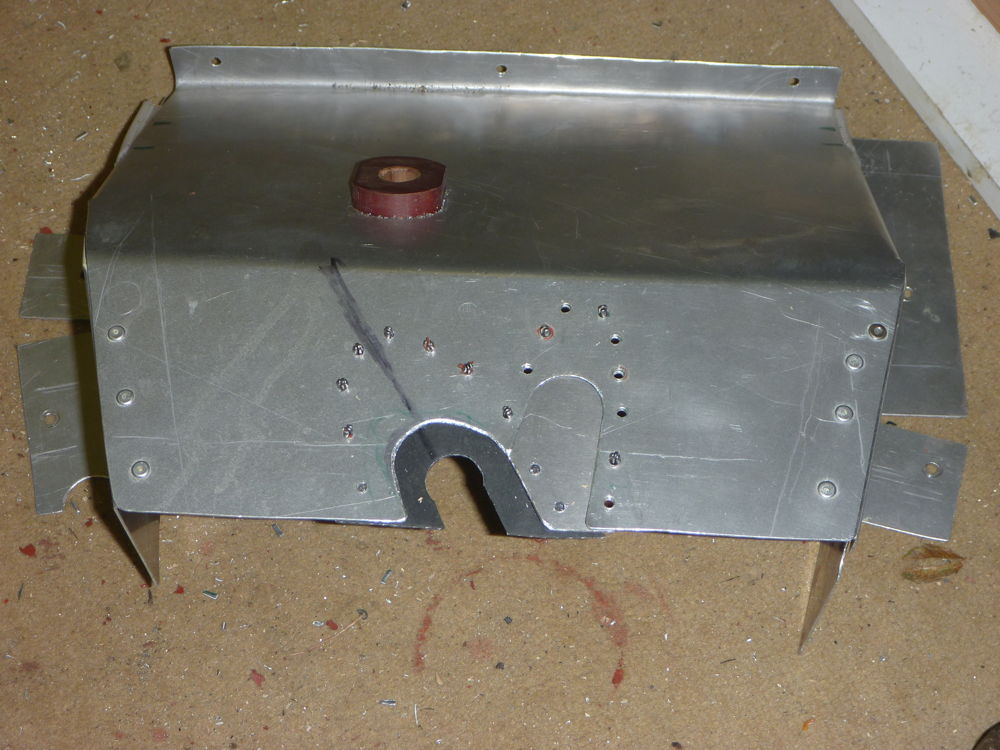

making new aft baffle slot: 2019-12-19 Panasonic DMC-FT1
The change of angle of the fuel line elbow on the stainless steel firewall meant that the fuel hose was no longer lining up with the slot in the aft baffle. Here the patch over the old slot, and the new rubber edging, are held in place with clecos while the slot is cut in the rubber.

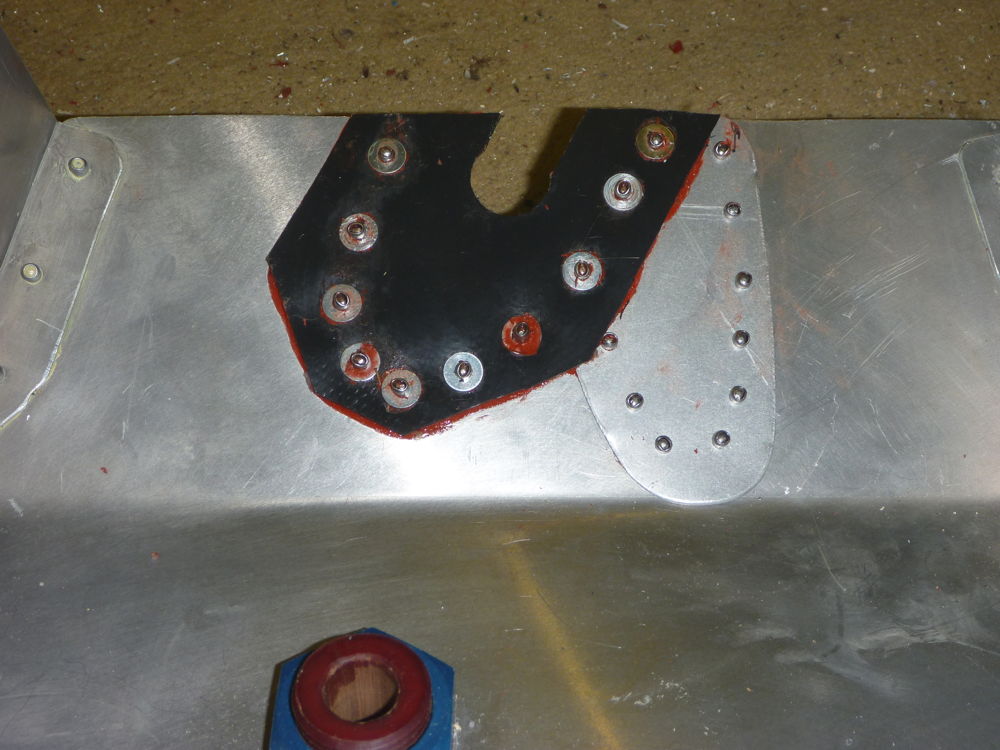

new aft baffle slot: 2019-12-19 Panasonic DMC-FT1
The change of angle of the fuel line elbow on the stainless steel firewall meant that the fuel hose was no longer lining up with the slot in the aft baffle. Here the patch over the old slot and the new rubber edging have been riveted in place.
