Fitting rubber to new aft baffle fuel hose slot

making new aft baffle slot

making new aft baffle slot: 2019-12-19 Panasonic DMC-FT1

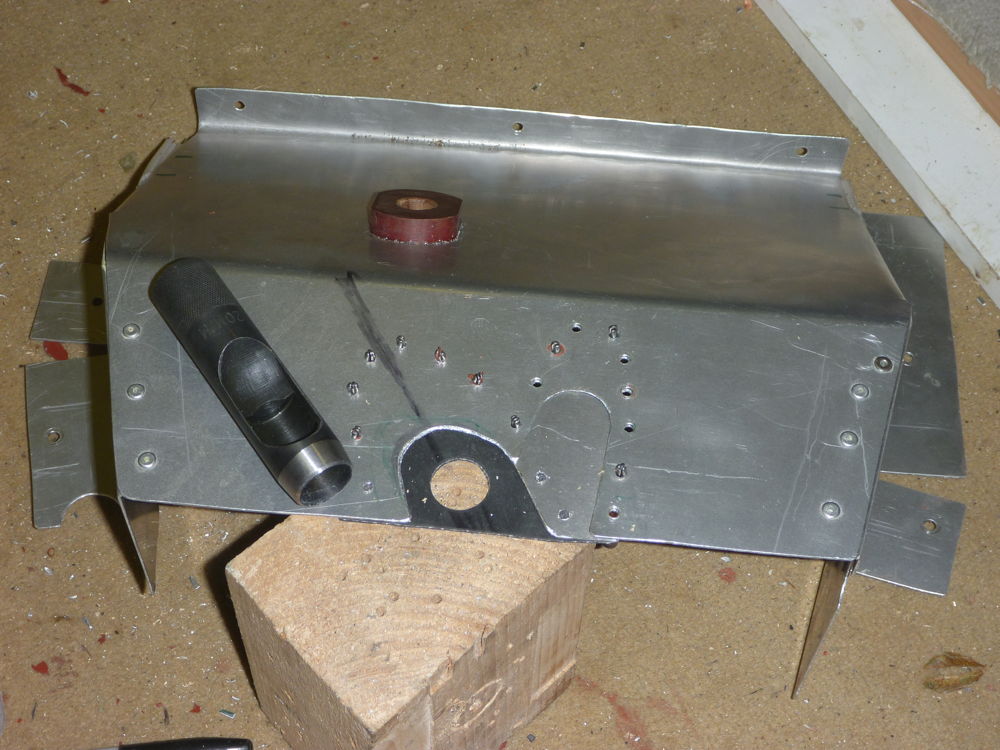

The change of angle of the fuel line elbow on the stainless steel firewall meant that the fuel hose was no longer lining up with the slot in the aft baffle. Here the patch over the old slot, and the new rubber edging, are held in place with clecos while a hole is punched in the rubber to make a rounded end for the slot.
