port wing label

port wing label: 2008-01-30.

Nikon Coolpix 8400

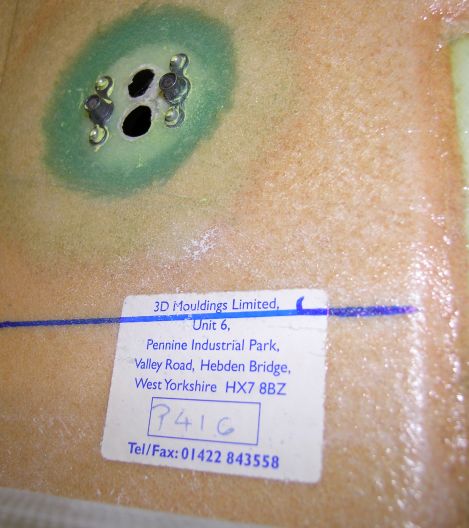

I thought this port wing serial-number label was under the top layer of glass on the bottom skin, but when I came to abrade the area for the aileron closeout I found it was on the surface, so it had to come off.

Label removed

label removed

label removed: 2008-01-30.

Nikon Coolpix 8400

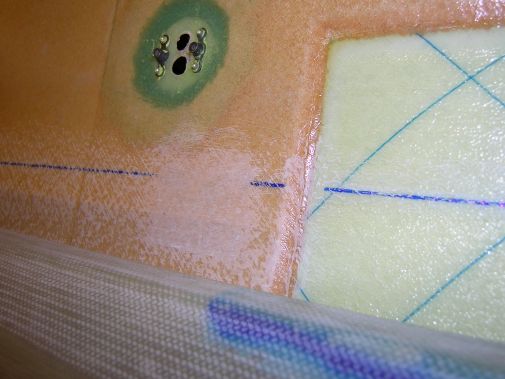

Here's the same area with all the residue of the label removed. The strong blue colour on the aileron closeout towards the bottom right-hand side of this picture is the edge of the BID on the hinge reinforcement inside the closeout. To make cutting them out easier and more accurate, I mark all my glass pieces for cutting with a felt-tip pen. The edge remains visible after the layup is completed, which is helpful to confirm that the layups extend over the required area.
