trailer winch wire rope route
|
|
trailer winch wire rope route |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

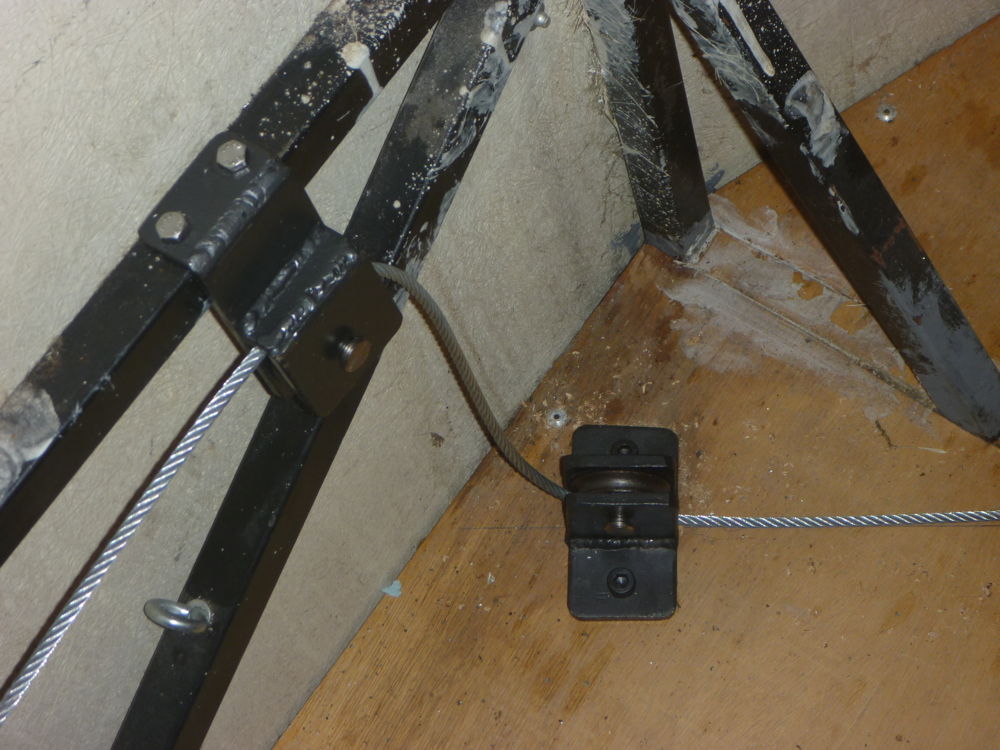

fairleads for wire rope in trailer: 2017-05-18 Panasonic DMC-FT1
The wire rope showing the route from the trailer winch through 2 SRBF fairleads.

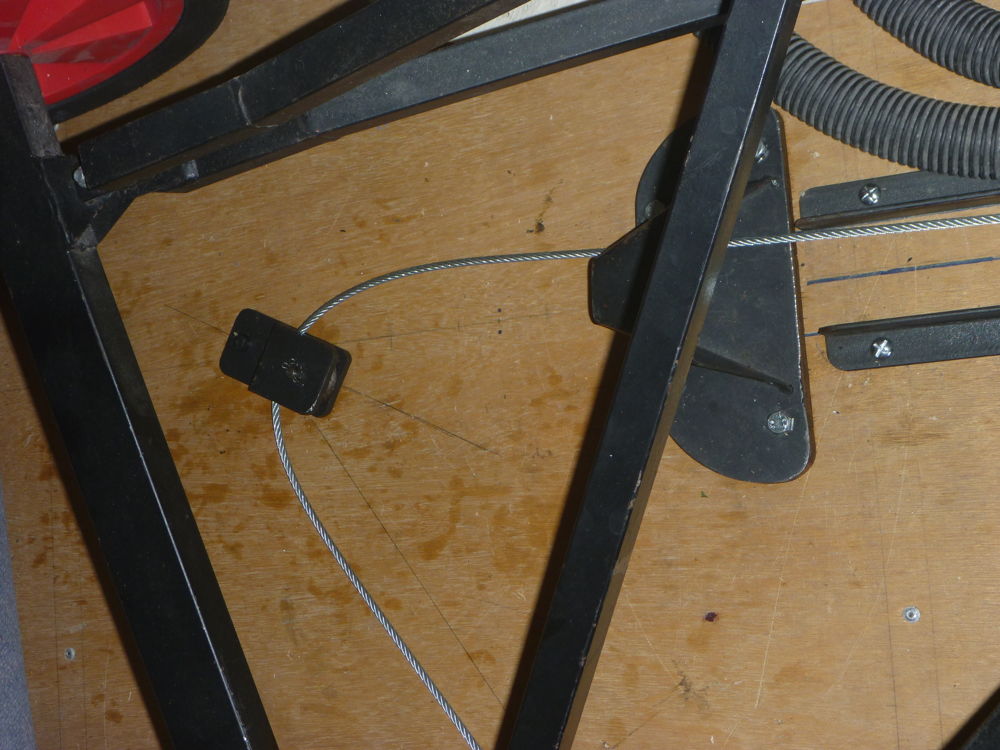

wire rope route in trailer: 2017-05-18 Panasonic DMC-FT1
The route of the wire rope from the trailer winch around 2 pulleys towards the front of the trailer.

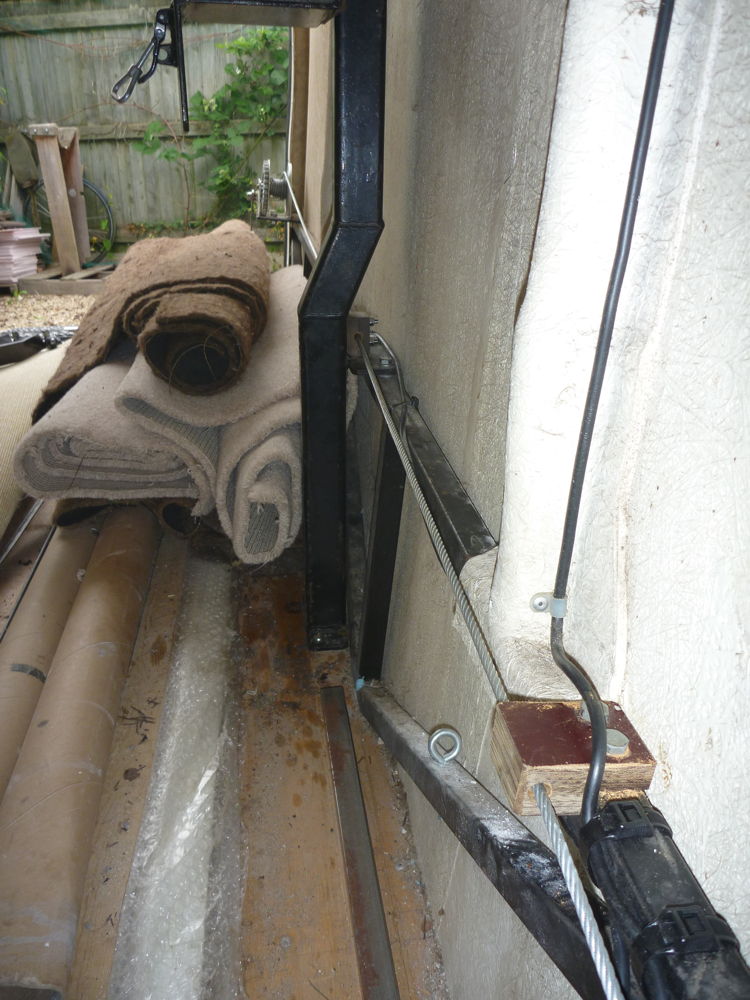

wire rope route in trailer: 2017-05-18 Panasonic DMC-FT1
The route of the wire rope from the trailer winch around a pulley on the floor to the tailwheel hook receptacle at the end of the tailwheel tracks. The picture is slightly confused by one of the wing dollies lying on top of the receptacle.
