2 pictures on this page - scroll down to see the rest

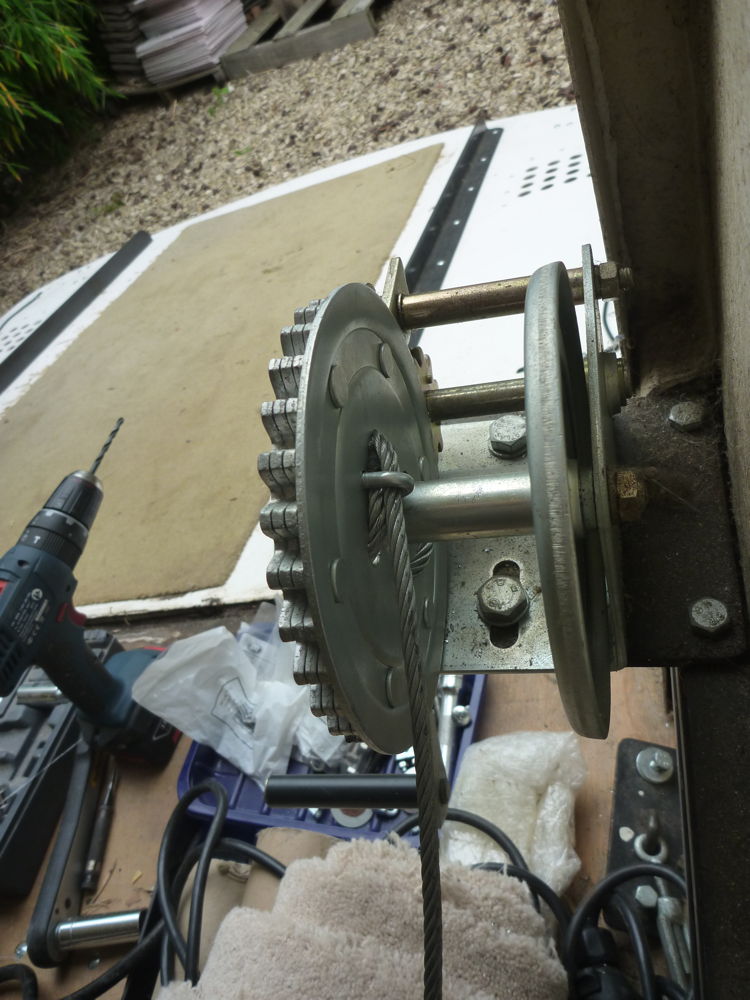

wire rope on trailer winch: 2017-05-18 Panasonic DMC-FT1
The wire rope attached to the trailer winch drum. It is threaded in and out through the 4 holes in the flange and the tail end (with black tape binding) is inserted again into the first hole underneath the free end. The nuts visible on the flange secure a U-clamp enclosing the 2 passes of the wire rope.

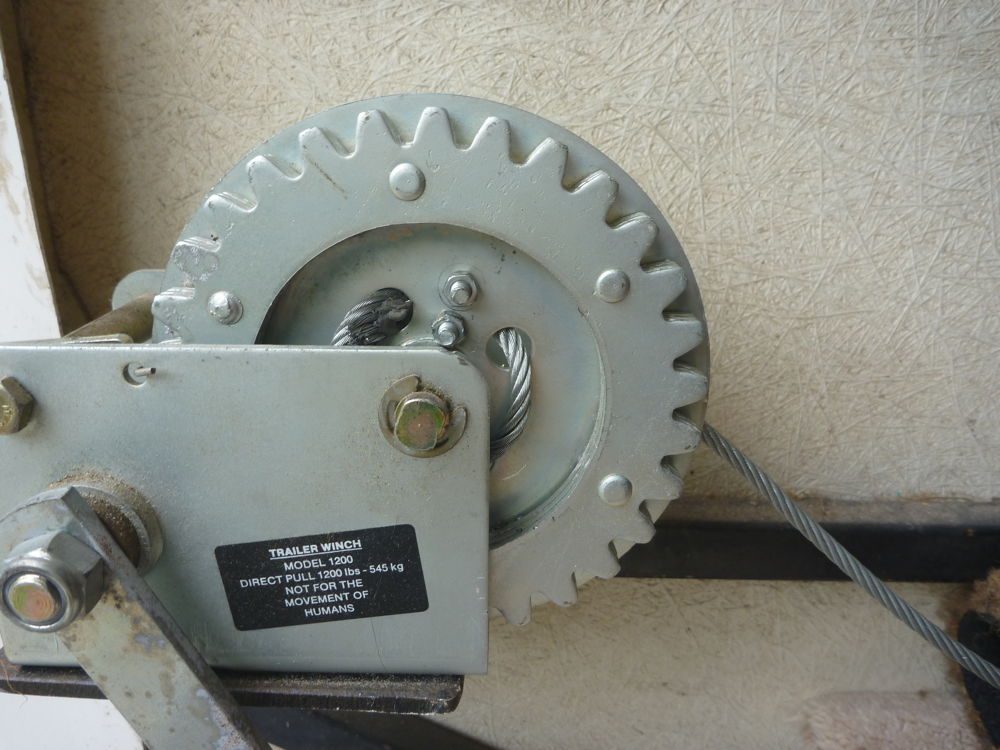

wire rope on trailer winch: 2017-05-18 Panasonic DMC-FT1
The wire rope attached to the trailer winch drum. It is threaded in and out through the 4 holes in the flange and the end (with black tape binding) is inserted again into the first hole underneath the free end. The U-clamp encloses both the free end and the tail of the wire rope.
