fuel weight sensor vent tubing termination
|
|
fuel weight sensor vent tubing termination |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

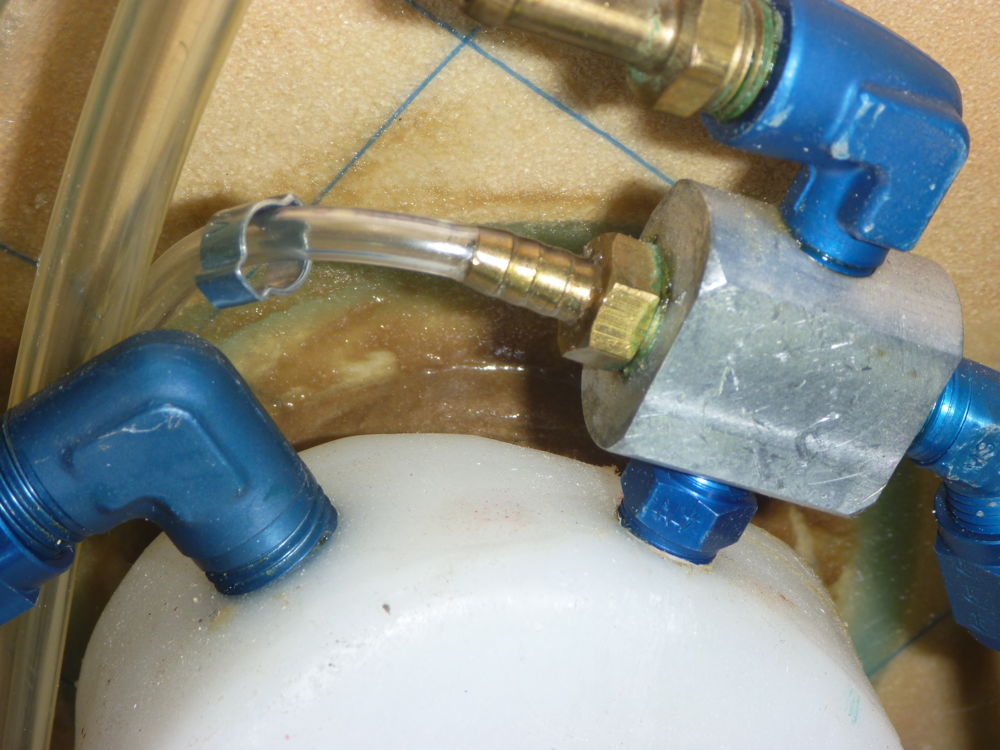

fuel weight sensor vent tubing fitted to top of filler cobra: 2022-03-12 Panasonic DMC-FT1
The vent tubing from the fuel weight sensor has been led up from the port seatpan, across the top of the tank and up to the top of the fuel filler cobra, to connect with the custom fitting there. The Eliza Tinsley hose clip is visible just along the tube from the brass barb, ready to be slid into position and crimped.

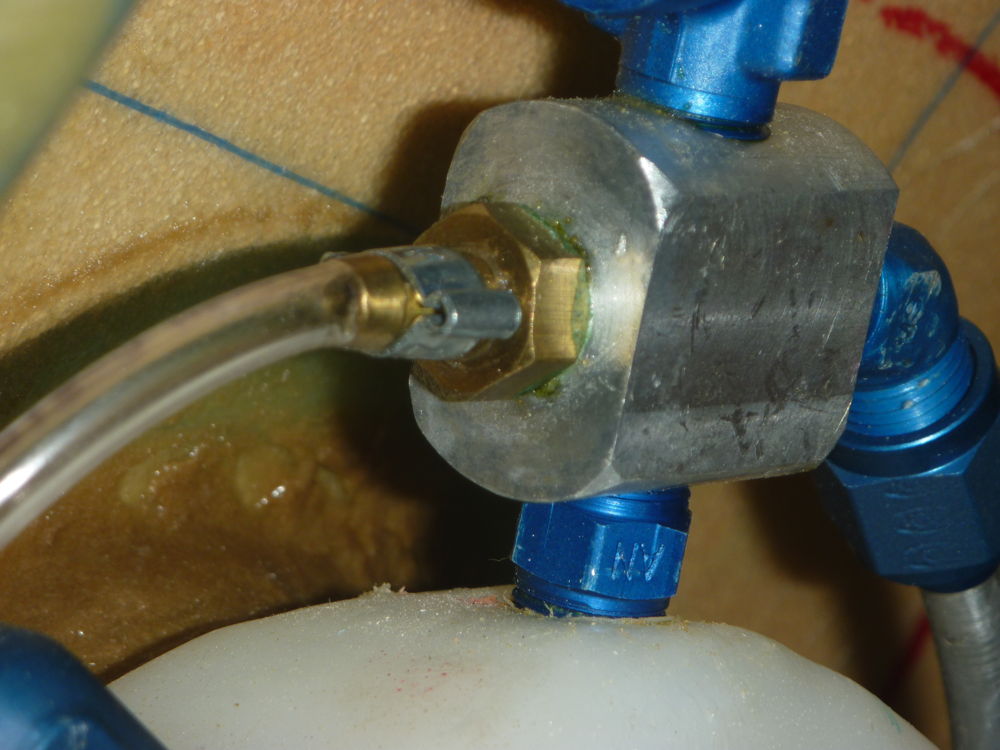

fuel weight sensor vent tubing fitted to top of filler cobra: 2022-03-12 Panasonic DMC-FT1
The vent tubing from the fuel weight sensor secured onto the brass barb at the top of the fuel filler cobra with an Eliza Tinsley hose clip.
