Spar - bellcrank clearance

2 pictures on this page - scroll down to see the rest

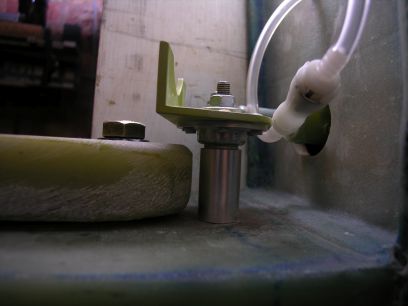

spar - bellcrank clearance

spar - bellcrank clearance: 2008-09-30

Nikon Coolpix 8400

The root end of the starboard spar comes quite close to the bellcrank bearing on the port spar.

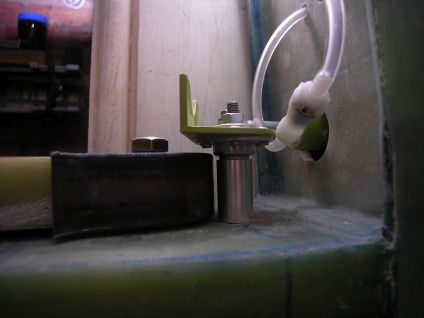

bellcrank - spar cup clearance

bellcrank - spar cup clearance: 2008-09-30

Nikon Coolpix 8400

When the spar cup is fitted, the clearance is even less - but at least there is still clearance!
