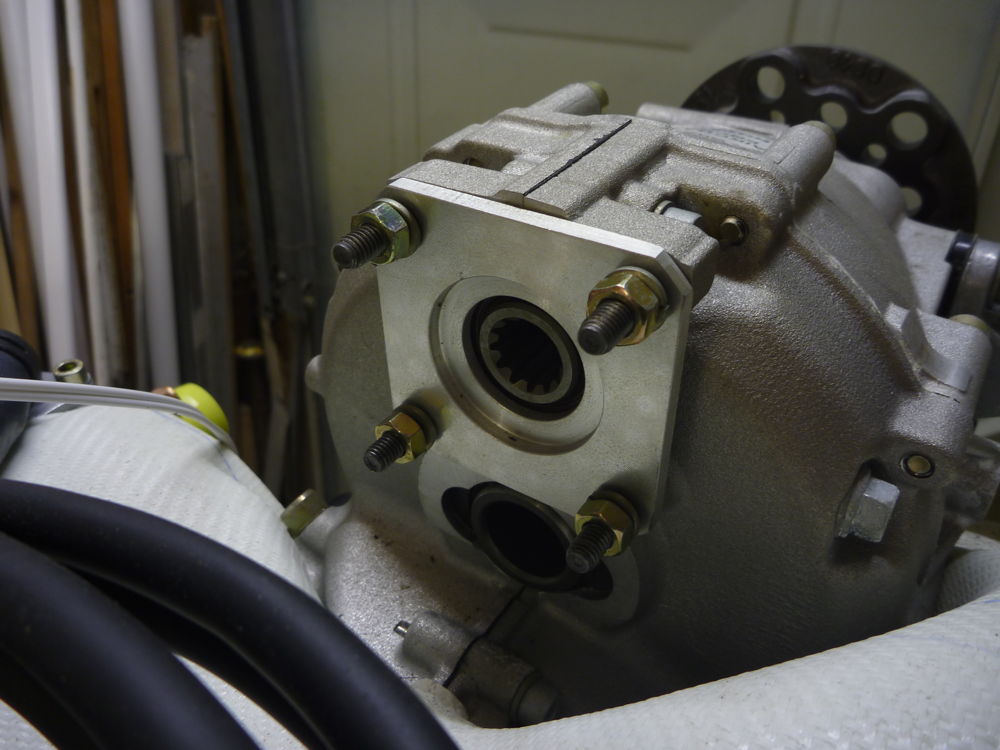

redundant vacuum pump pad: 2016-03-18 Panasonic DMC-FT1
Since deciding not to install vacuum (or indeed any mechanical) gyros the vacuum pump pad on the Rotax engine is redundant. The spacer plate that came with the engine is shown here; the hole in the middle looks a bit untidy, and the studs are only part-threaded so the nuts can't be tightened enough to hold the spacer plate.

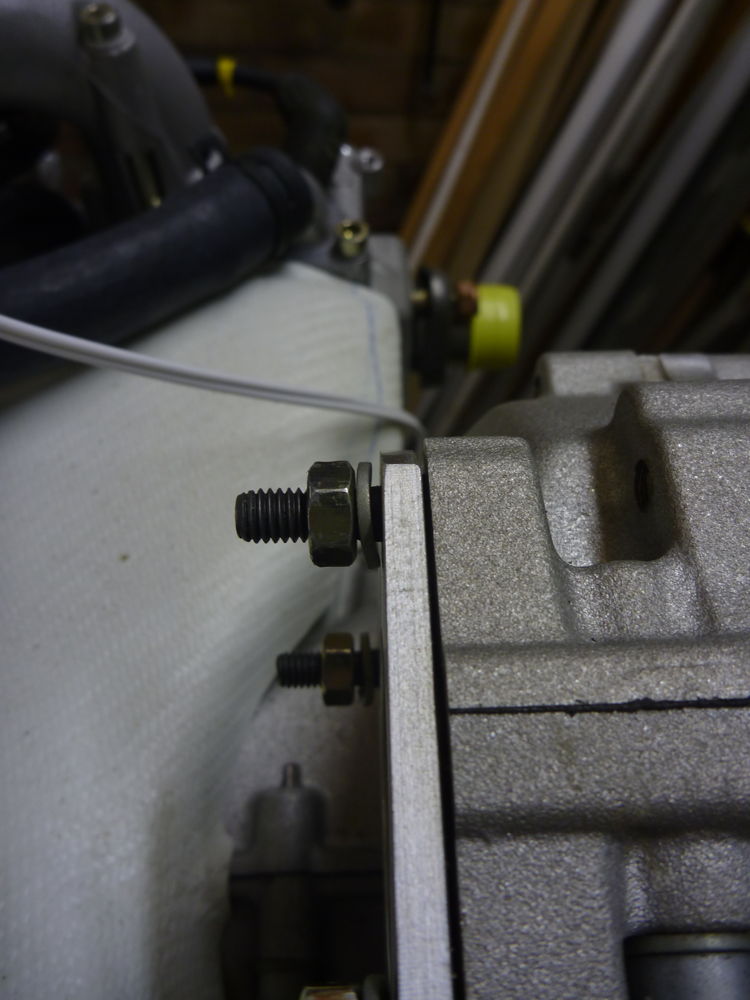

redundant vacuum pump pad: 2016-03-18 Panasonic DMC-FT1
The studs on the Rotax engine vacuum pump pad are only part-threaded so the nuts can't be tightened enough to hold the spacer plate.

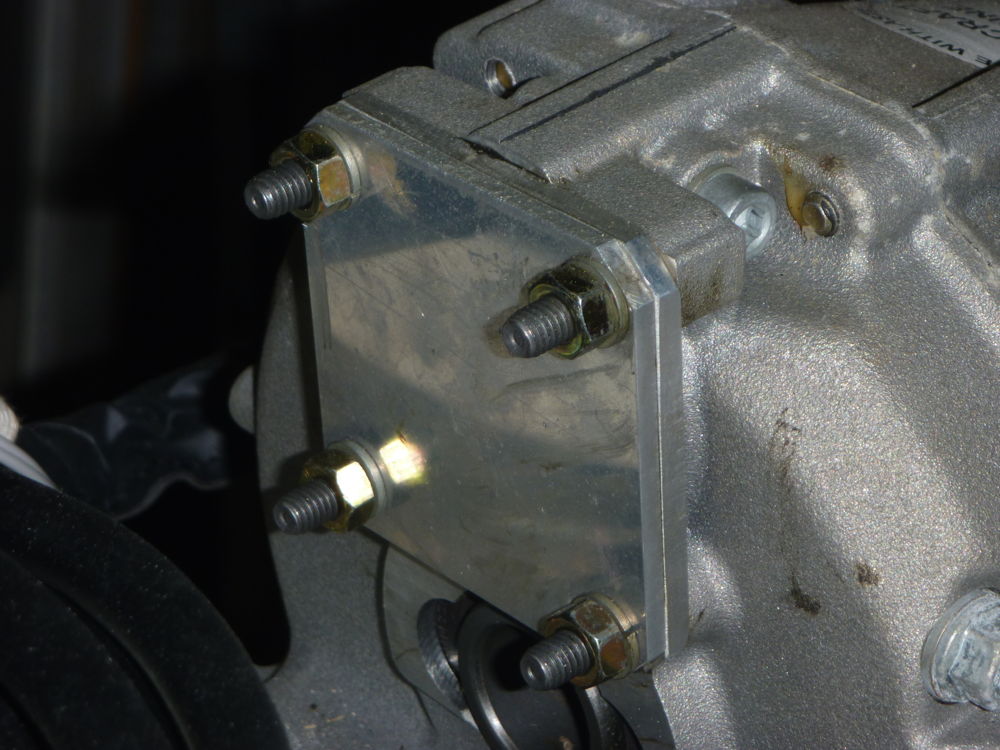

vacuum pump pad cover: 2016-04-02 Panasonic DMC-FT1
A blanking cover made from 1/8" aluminium plate to cover the redundant vacuum pump drive pad on the Rotax 912ULS engine.
