fitting vent hardware to F18

fuel filler vent connexions

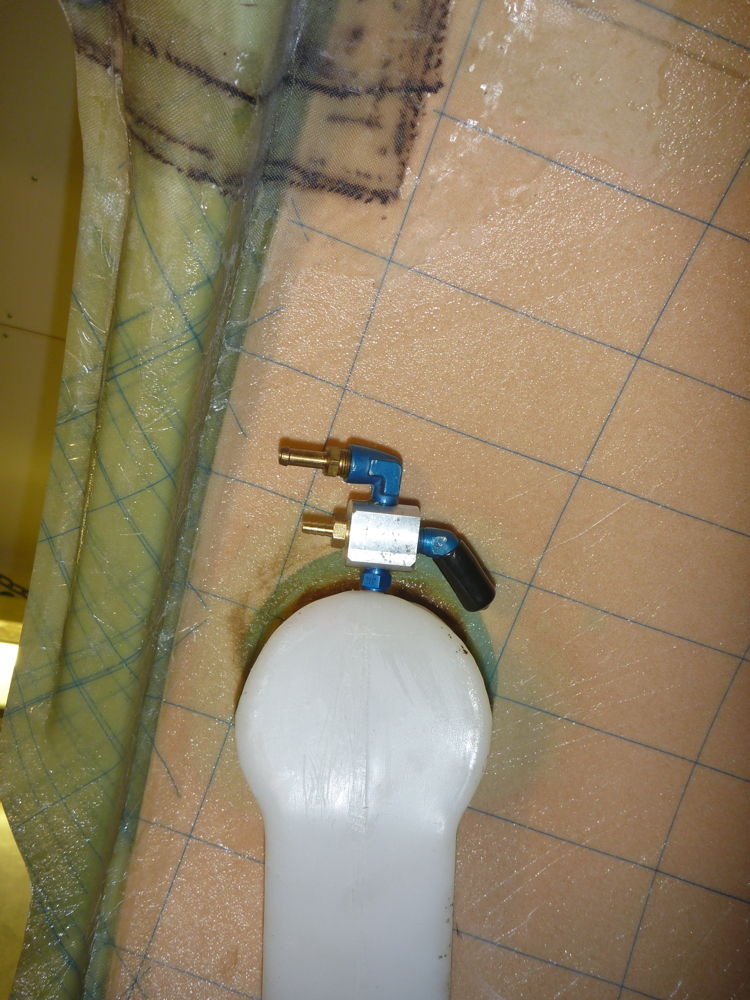

fuel filler vent connexions: 2016-03-21 Panasonic DMC-FT1

The vent connexions fitted to the top of F18 fuel filler neck. The right-hand elbow will connect to 1/4" aluminium pipe going down through the baggage shelf and venting to atmosphere. The upper brass hose nipple will connect to the fuel sight gauge and the lower one will connect to the rear port of the digital fuel level sensor. Not yet fitted in this picture is another right-angle elbow which will connect to the tank vent.
