Pitot-static mast connexion

pitot-static mast connexion

pitot-static mast connexion: 2008-02-16.

Nikon Coolpix 8400

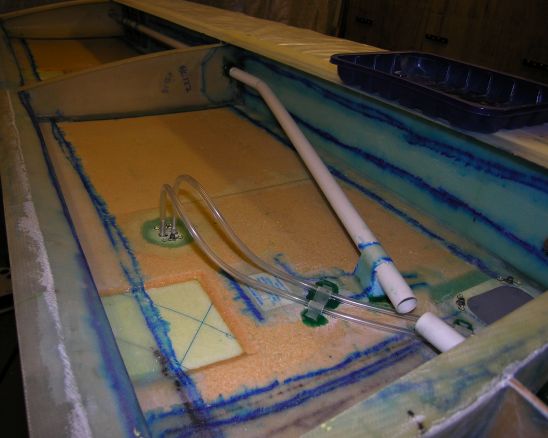

The pitot and static tubing connected to the mast, with the replacement double clip now bonded on. Also visible are the various BID reinforcements and the conduit for connexions to the wingtip. The gap between the 2 sections of conduit near the access panel will allow the pitot and static tubing to be routed through the conduit, should the initially-installed tubing ever need replacement.
