trial setting of wing incidence
|
|
trial setting of wing incidence |
|
|
 |
Navigation & Acknowledgements |
4 pictures on this page - scroll down to see the rest

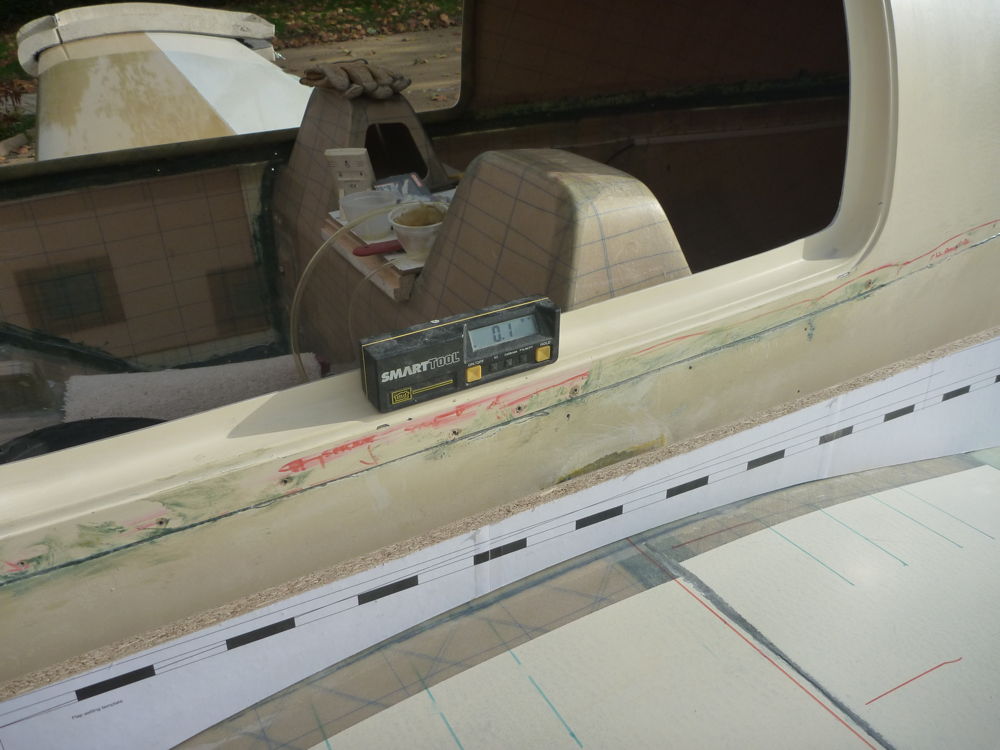

fuselage level for measuring wing incidence: 2014-10-31
Lumix DMC-FT1
Digital level on port door sill, showing 0.1 degree tail-down.

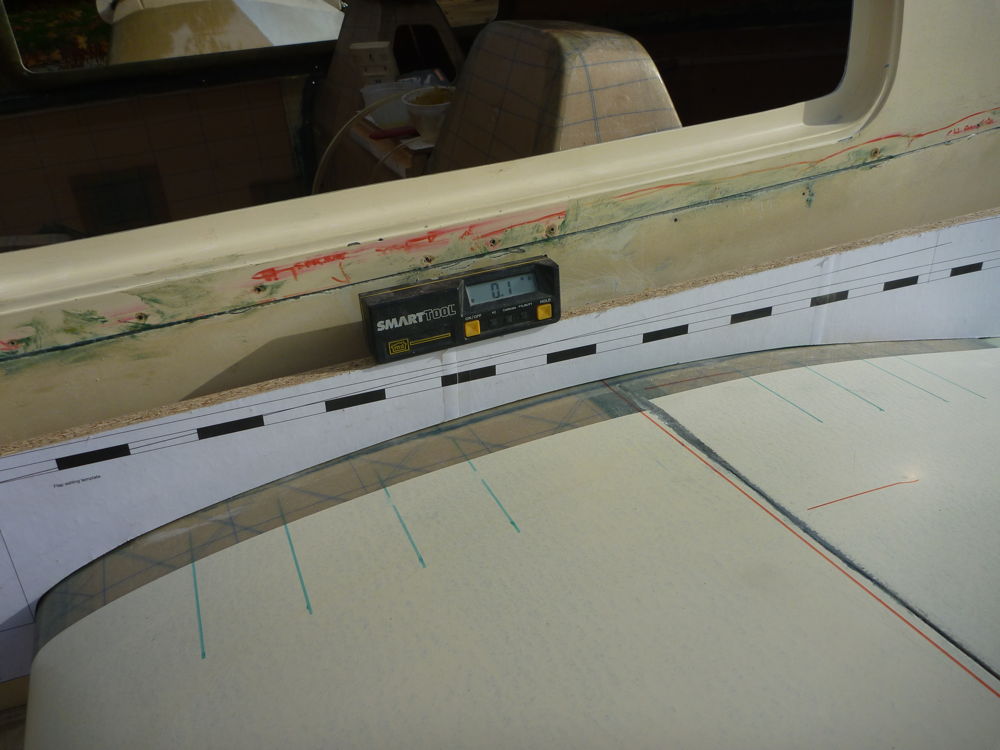

trial check of wing incidence: 2014-10-31
Lumix DMC-FT1
Digital level on the flap setting template showing 0.1 degree tail-down, matching the angle measured on the port door sill.

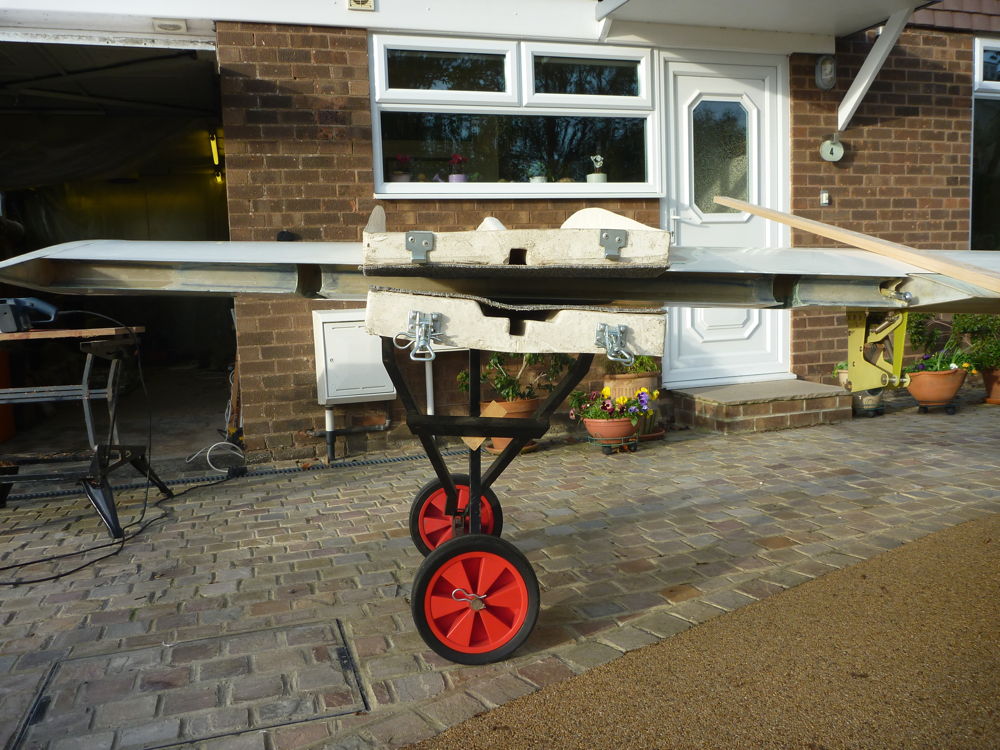

port wing rigging dolly: 2014-10-31
Lumix DMC-FT1
The port wing supported on its rigging dolly. The dolly has been moved inwards from its normal position near the tip to raise the wing slightly, and a wooden wedge has been inserted in the scissors action (which allows the wing to tilt to vertical for storage) to get the correct angle of incidence. The wing clamp is left unlocked for easy movement.

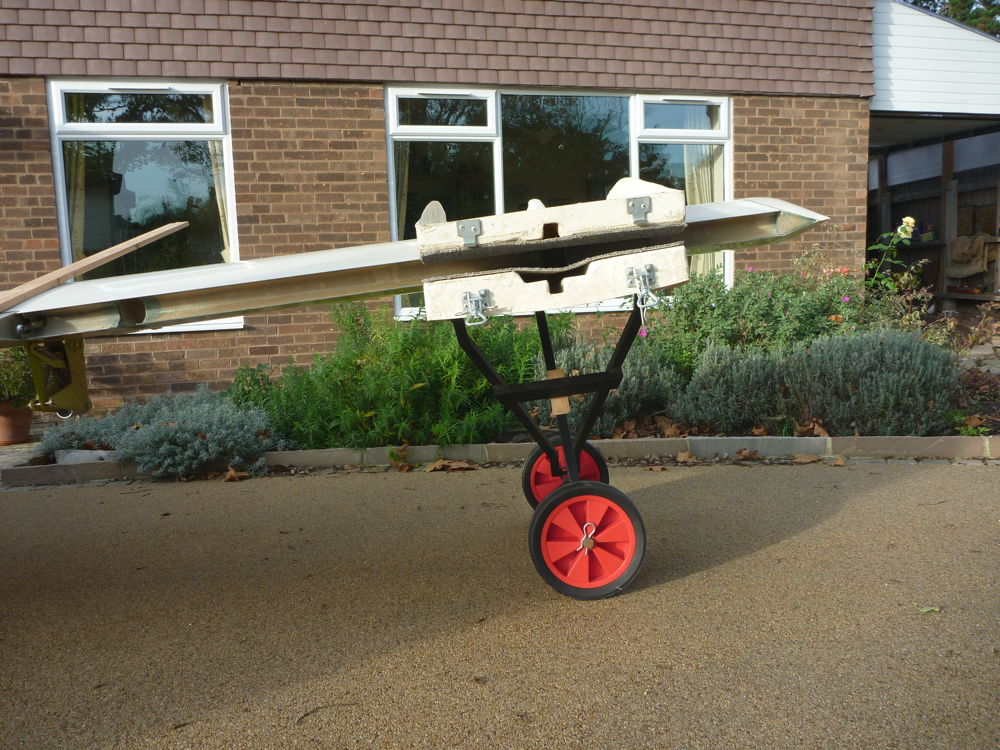

starboard wing rigging dolly: 2014-10-31
Lumix DMC-FT1
The starboard wing supported on its rigging dolly. The dolly has been moved inwards from its normal position near the tip to raise the wing slightly, and a wooden wedge has been inserted in the scissors action (which allows the wing to tilt to vertical for storage) to get the correct angle of incidence. The wing clamp is left unlocked for easy movement.
