plotting trim link rod path

2 pictures on this page - scroll down to see the rest


plotting path of trim link rod

plotting path of trim link rod: 2014-07-25

Lumix DMC-FT1

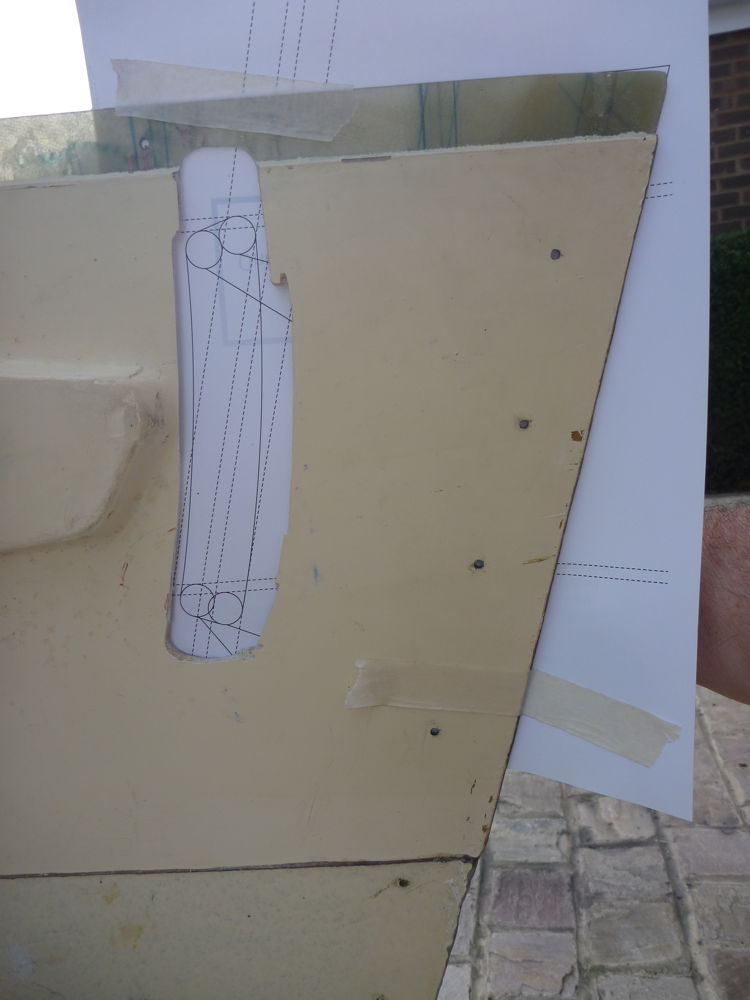

Here is the path of the trim link rod on the starboard side of the fuselage, drawn up and printed out, after much careful measurement. It's obvious now that the slot could be much smaller, but of course I had to make the slot before the link rod could be connected to the tailplanes, and that involved much trial and error.


plotting path of trim link rod

plotting path of trim link rod: 2014-07-25

Lumix DMC-FT1

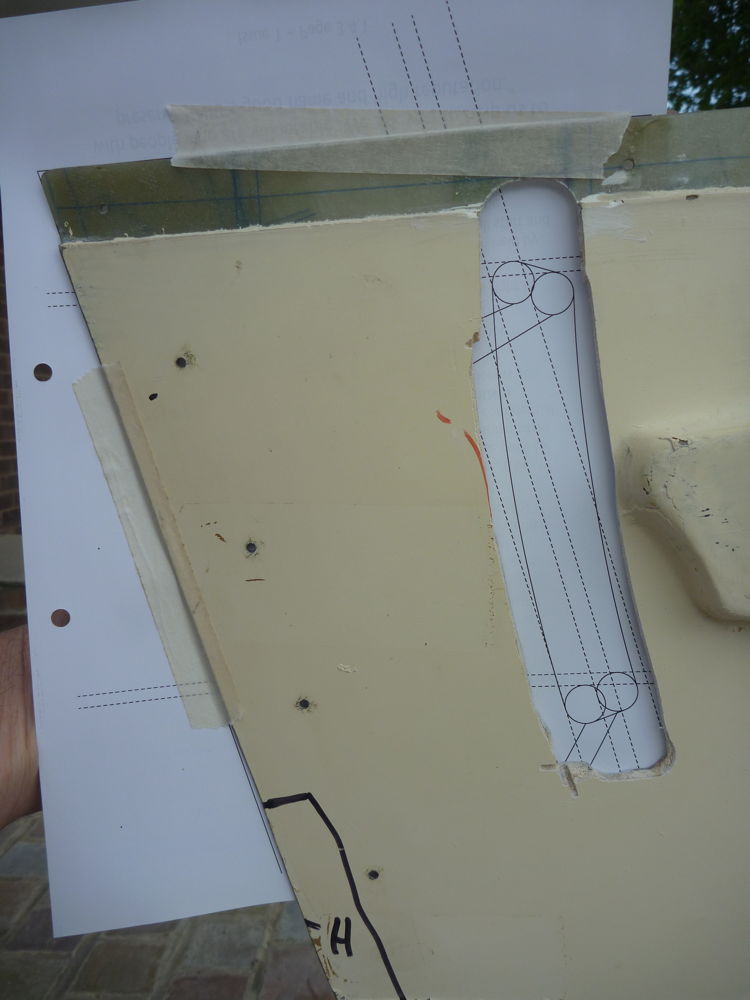

Here is the path of the trim link rod on the port side of the fuselage
