Tailplane outboard rib

index sitemap advanced
search engine by freefind
notepad Navigation & Acknowledgements

Tailplane stand

4 pictures on this page - scroll down to see the rest

tp stand

Tailplane stand: 2002 02 09.

Canon AV-1, Fujichrome Velvia 50.

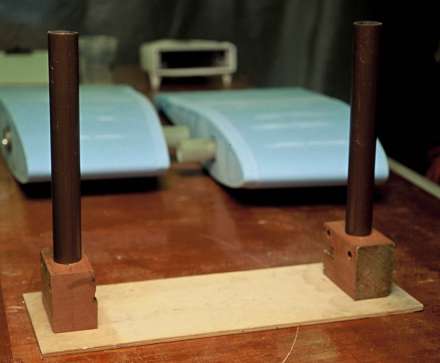

This stand, originally intended to provide support for the TP2 foam pieces while I worked on the outboard rib layup, has proved to be useful for parking the finished tailplanes. The split mahogany blocks are screwed to the plywood base and clamp onto the plastic pipes.

Ready for rib layup

TP2s on stand

TP2s on stand ready for rib layup: 2002 02 09.

Canon AV-1, Fujichrome Velvia 50.

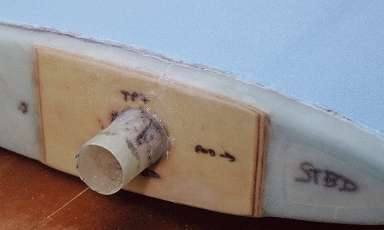

The TP2 foam parts ready for the outboard rib layup. Clearly visible is the rebate into which the rib will neatly fit (it says in the manual). The TP5 and TP6 sleeves, inside the BID sleeve, are installed.

Outboard rib layups

outboard rib layups

Tailplane outboard rib layups: 2003 02 22.

Canon AV-1, Fujichrome Velvia 50.

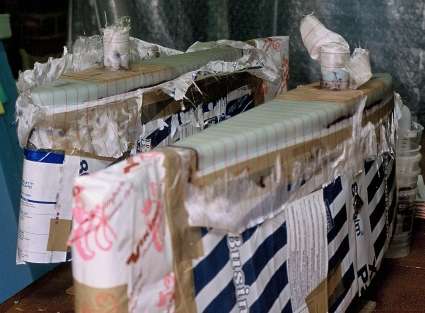

Here are the completed outboard rib layups. Note the liberal use of masking paper to prevent resin running down the rest of the foam surfaces.

Tailplane outboard rib

tp outboard rib

Tailplane outboard rib: 2003 01 26.

Canon AV-1, Fujichrome Velvia 50.

The face of the tailplane outboard rib after removing the peel-ply and masking paper.
