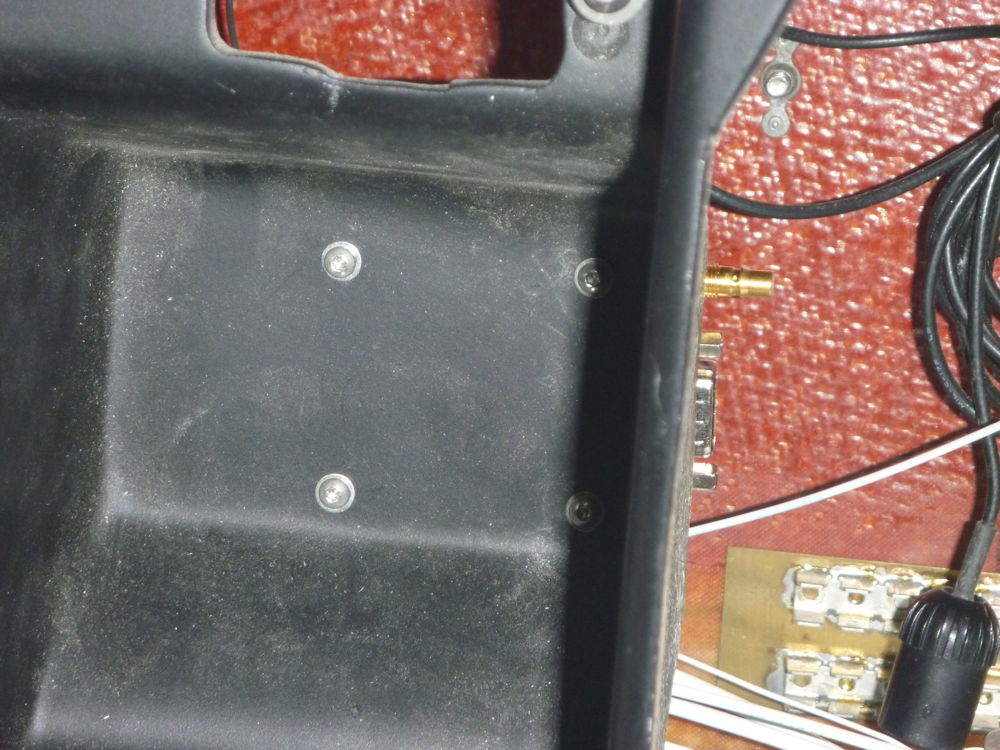

TN72 GPS source mounted: 2020-11-21 Panasonic DMC-FT1
The Trig TN72 GPS position source for the transponder mounted behind the retract lever recess in the F14 instrument module. The antenna and D sub-min connectors are just visible at the right

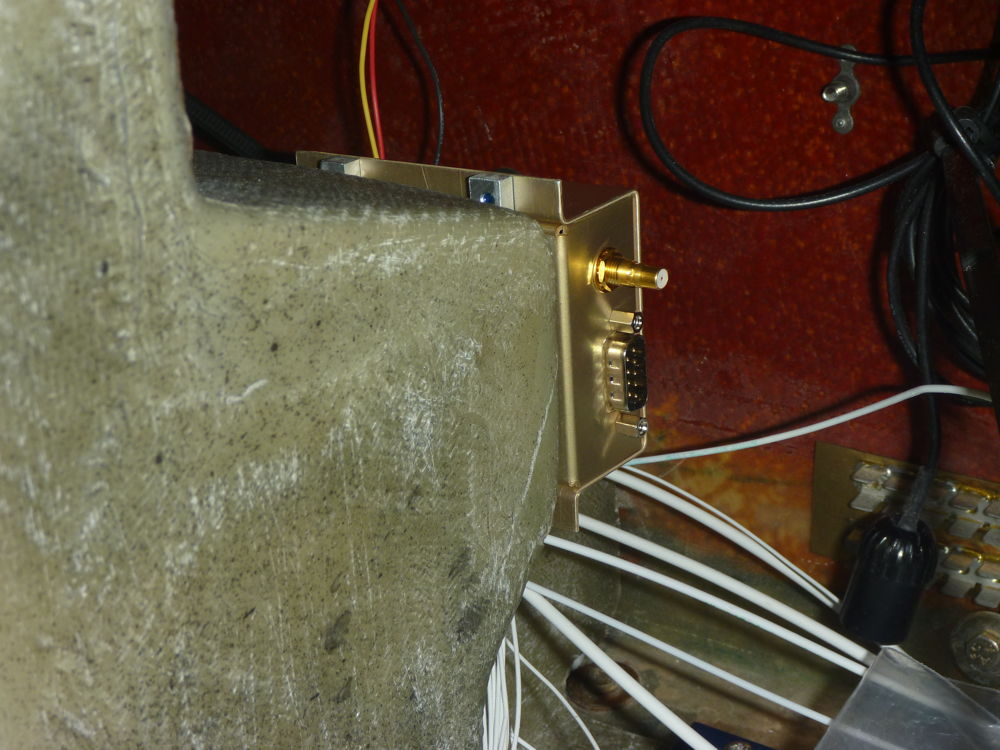

TN72 GPS source mounted: 2020-11-21 Panasonic DMC-FT1
The Trig TN72 GPS position source for the transponder mounted behind the retract lever recess in the F14 instrument module. The aluminium bars which provide mounting holes within the space of the recess are just visible at the top of the unit.
