sub panel legend overlay

sub panel legend overlay: 2020-05-30 Panasonic DMC-FT1

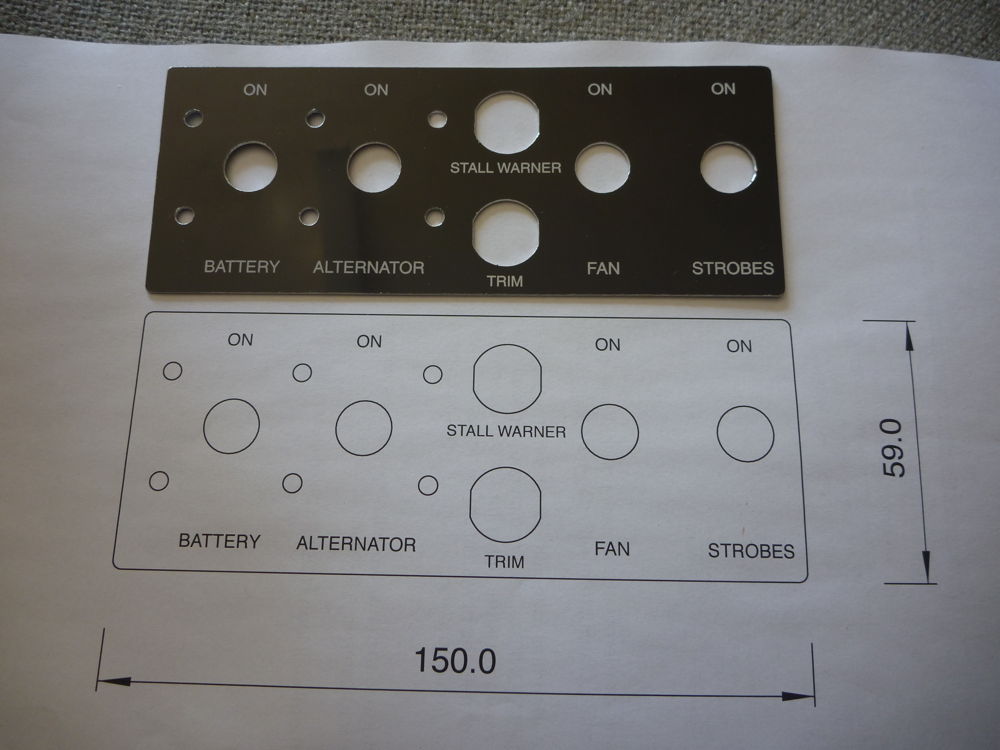

The aluminium overlay with legends for the outboard end of the F14 Instrument Module sub-panel, together with the drawing from which it was made.


sub panel legend overlay

sub panel legend overlay: 2020-05-29 Apple iPhone 8

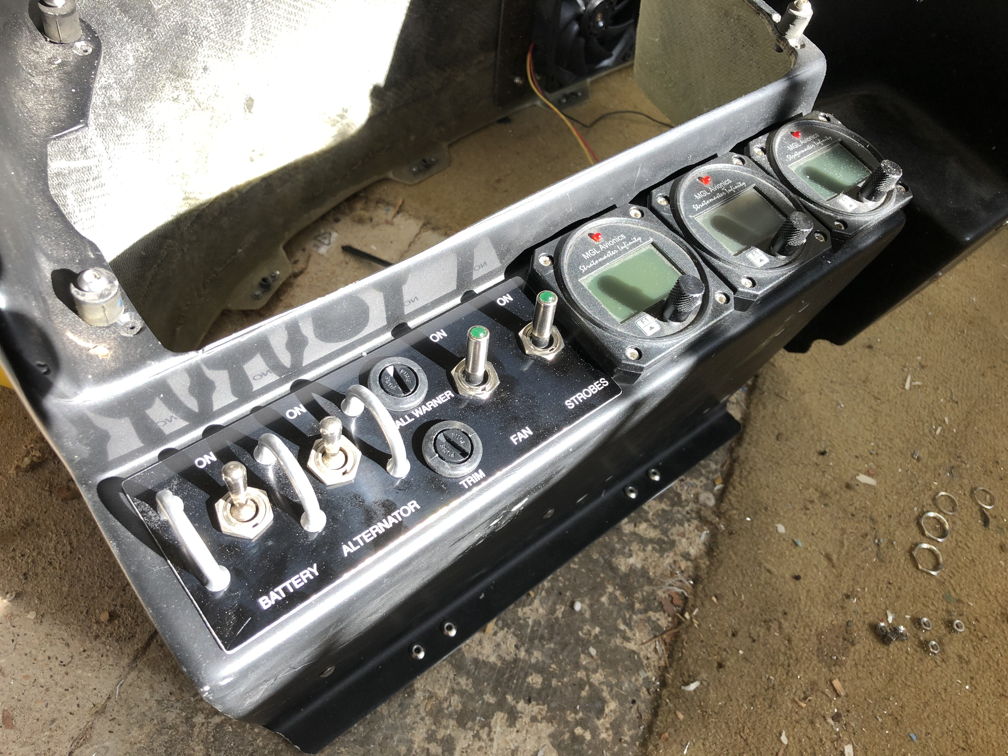

A trial fit of the aluminium overlay with legends for the outboard end of the Instrument Module sub-panel
