wing leveller servo wire route

2 pictures on this page - scroll down to see the rest


servo wire routing

servo wire routing: 2020-05-27 Panasonic DMC-FT1

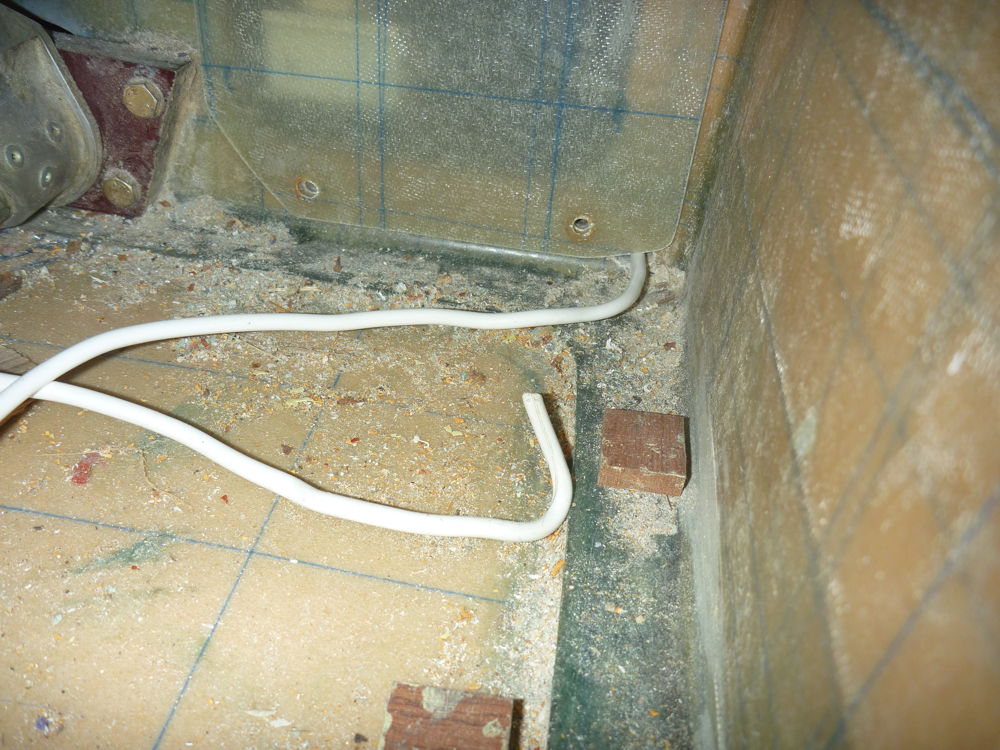

A spare piece of wire poked into the hole in the forward face of the starboard thigh support for the wing-leveller servo wires. The edge of the cover plate, put in place temporarily, is uncomfortably close to the wire.


servo wire routing

servo wire routing: 2020-05-27 Panasonic DMC-FT1

A spare piece of wire poked into the hole in the forward face of the starboard thigh support for the wing-leveller servo wires. A small notch has been made in the edge of the cover plate to clear the wire.
