strobe PSU wiring: 2020-10-13 Panasonic DMC-FT1

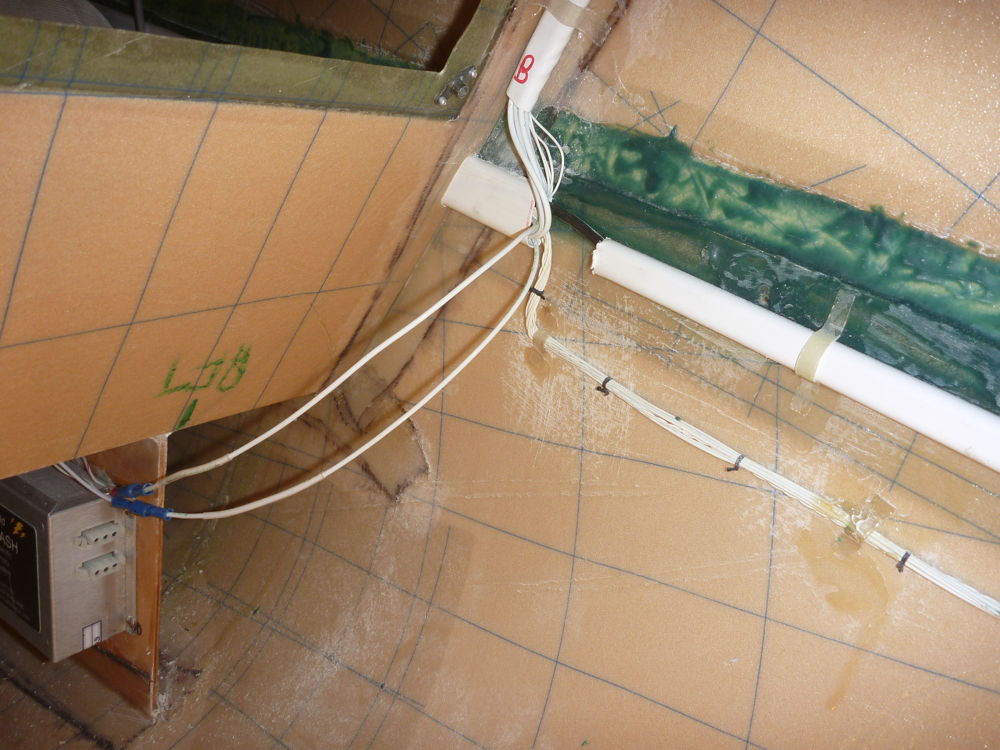

Strobe power supply wiring from starboard baggage bay conduit to strobe PSU under baggage bay. Later the dangling wires will be secured to the back of the D-bulkhead.
