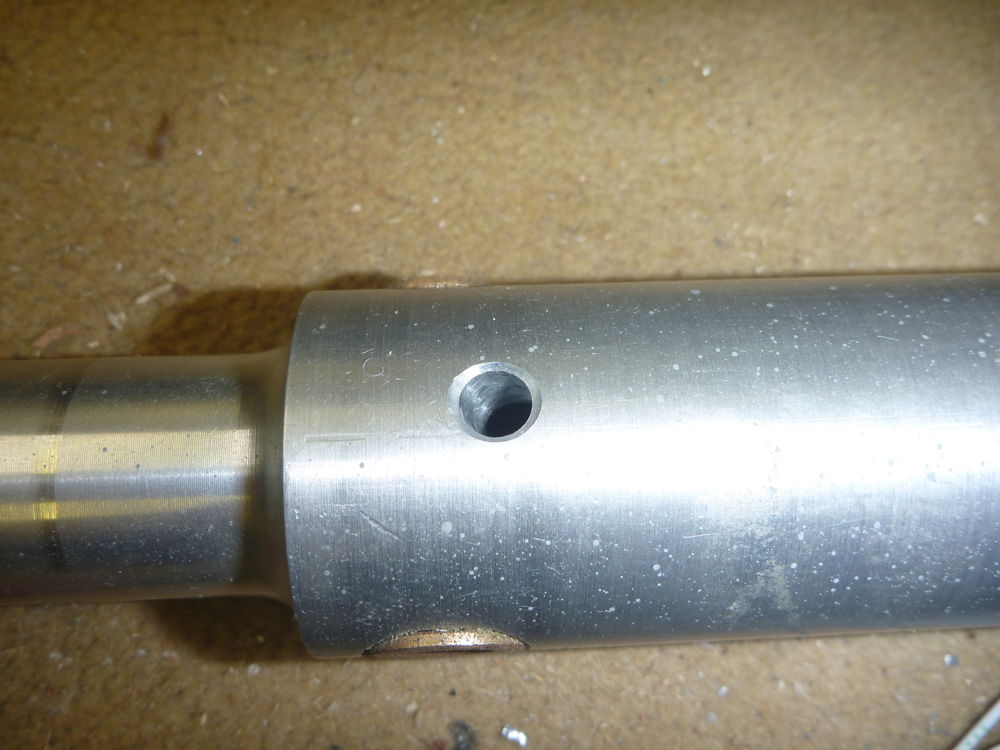

control column socket drilled for wiring: 2016-08-27 Panasonic DMC-FT1
A 6mm hole drilled at an upwards angle on the aft side of the port control column socket to carry the wires to the switches on top of the column.

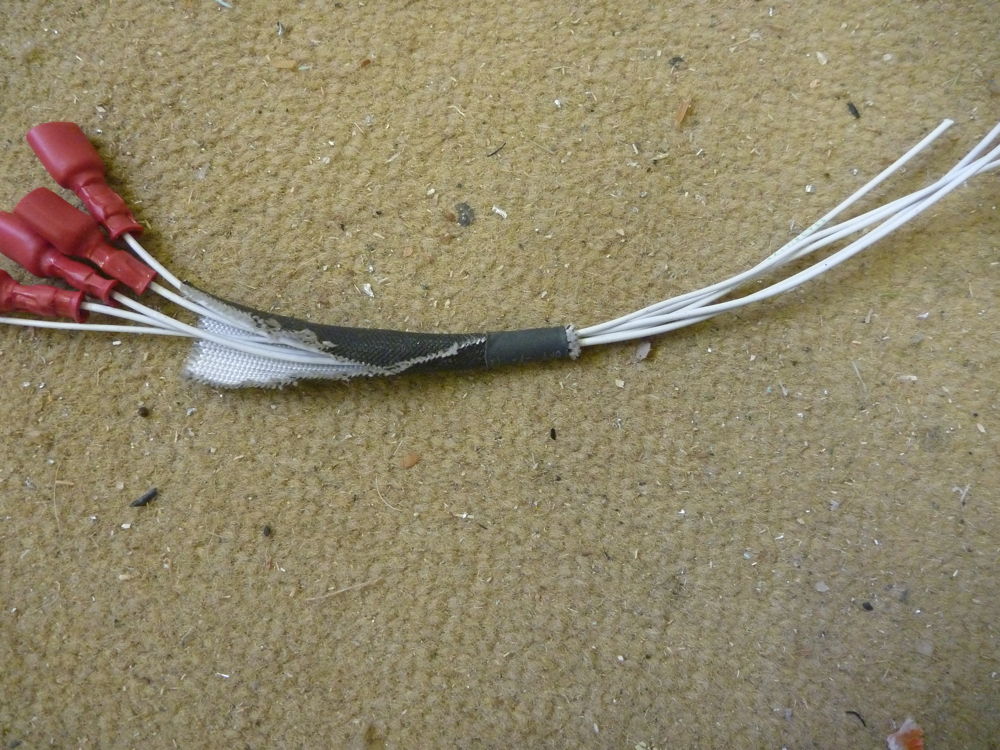

wire bunch to test wiring to stick top switches: 2016-08-27 Panasonic DMC-FT1
A bunch of wire offcuts inserted in a piece of split fibreglass sleeving to check how the wires will fit into the control column socket. The upper (right-hand) end of the sleeving is retained from opening by a short length of heat-shrink.

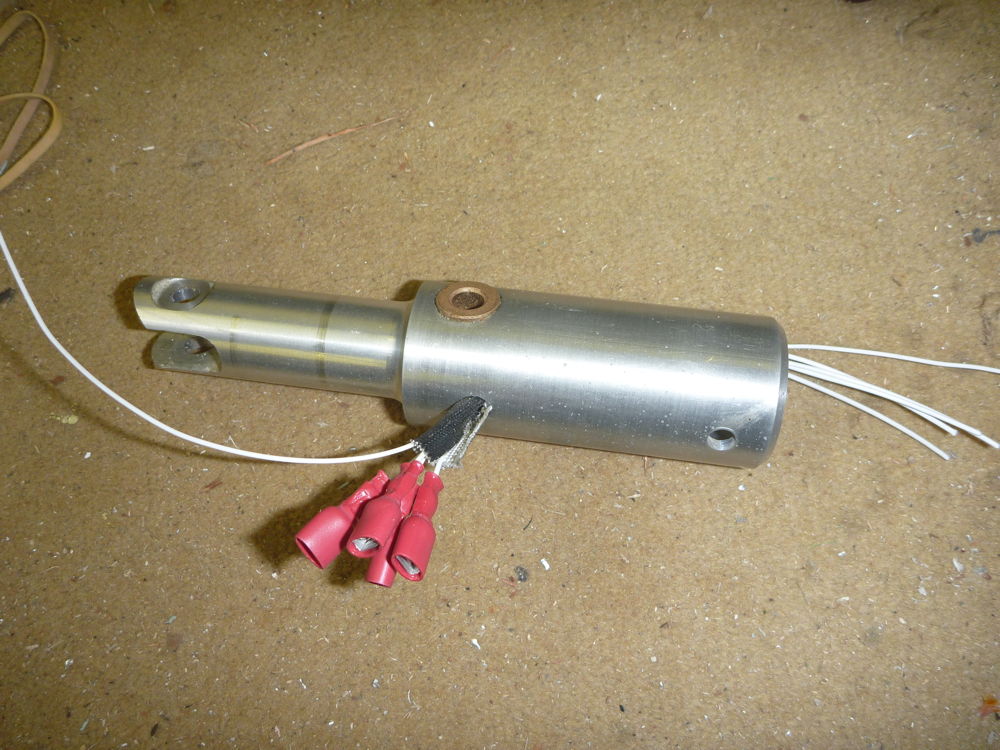

testing fit of wires in base of control column: 2016-08-27 Panasonic DMC-FT1
The control-column socket with the test bunch of wires inserted. The split fibreglass sleeving is keen to unwrap outside the confines of the hole in the socket; the actual assembly will probably need another piece of heat-shrink to keep it tidy.

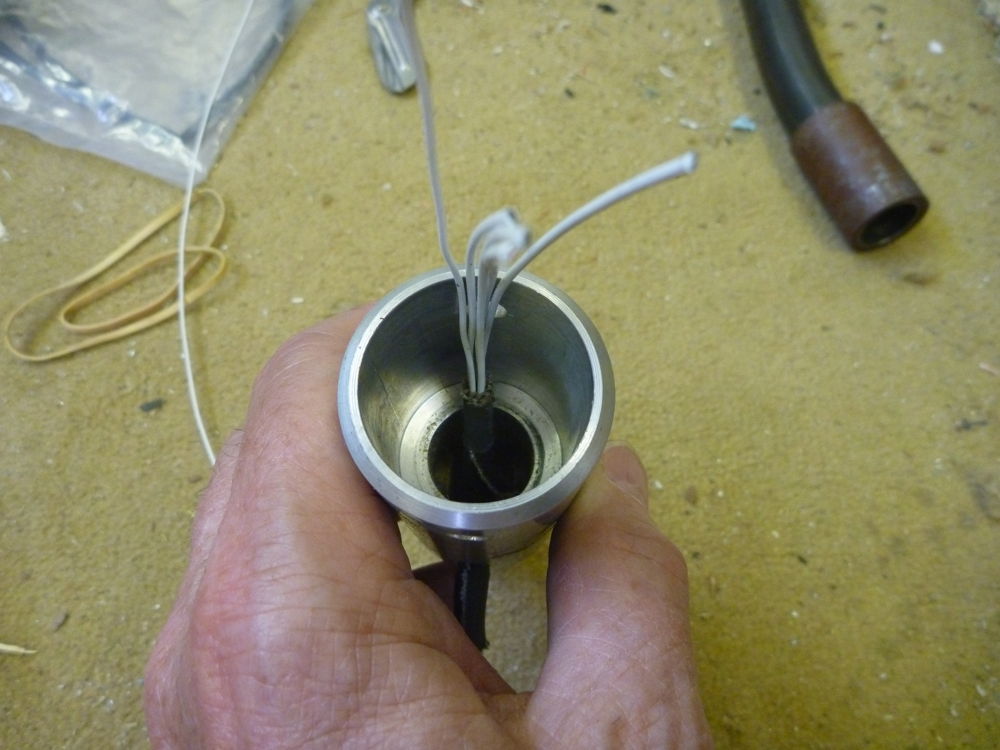

testing fit of wires in base of control column: 2016-08-27 Panasonic DMC-FT1
Looking down into the control-column socket with the test bunch of wires inserted. The upper end of the fibreglass sleeving is just visible.
