trial fit of upper stainless steel firewall panel flange
|
|
trial fit of upper stainless steel firewall panel flange |
|
|
 |
Navigation & Acknowledgements |
3 pictures on this page - scroll down to see the rest

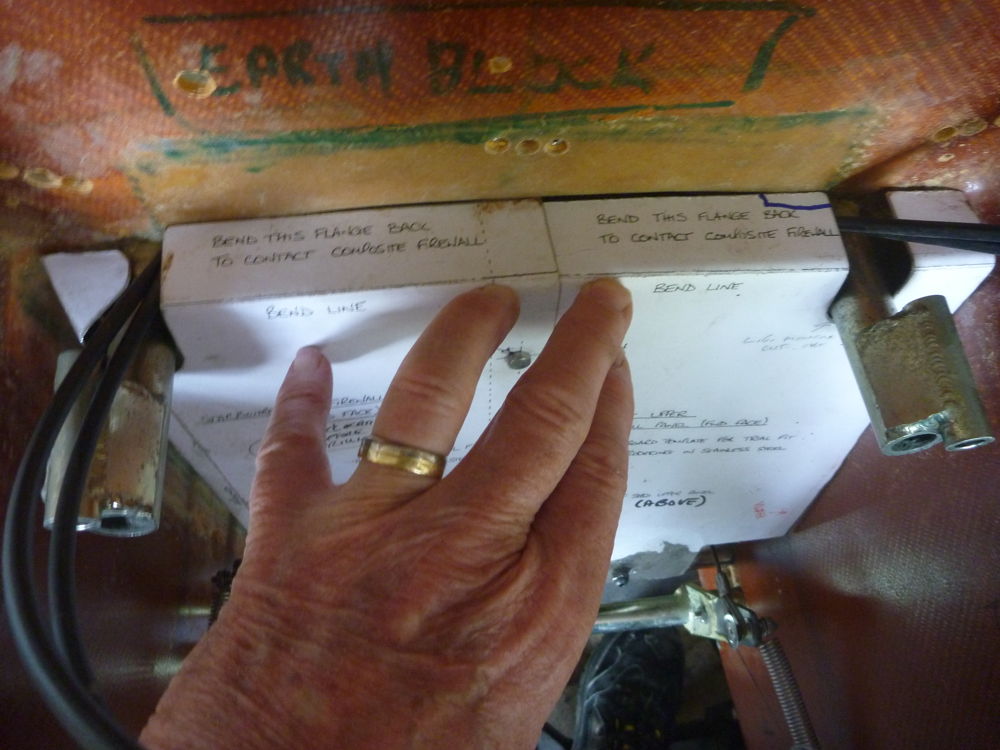

checking flange bend on SS firewall upper panels: 2019-05-31 Panasonic DMC-FT1
Checking the fit of the upper stainless steel firewall panels to the composite firewall after bending the flange along their top edge.

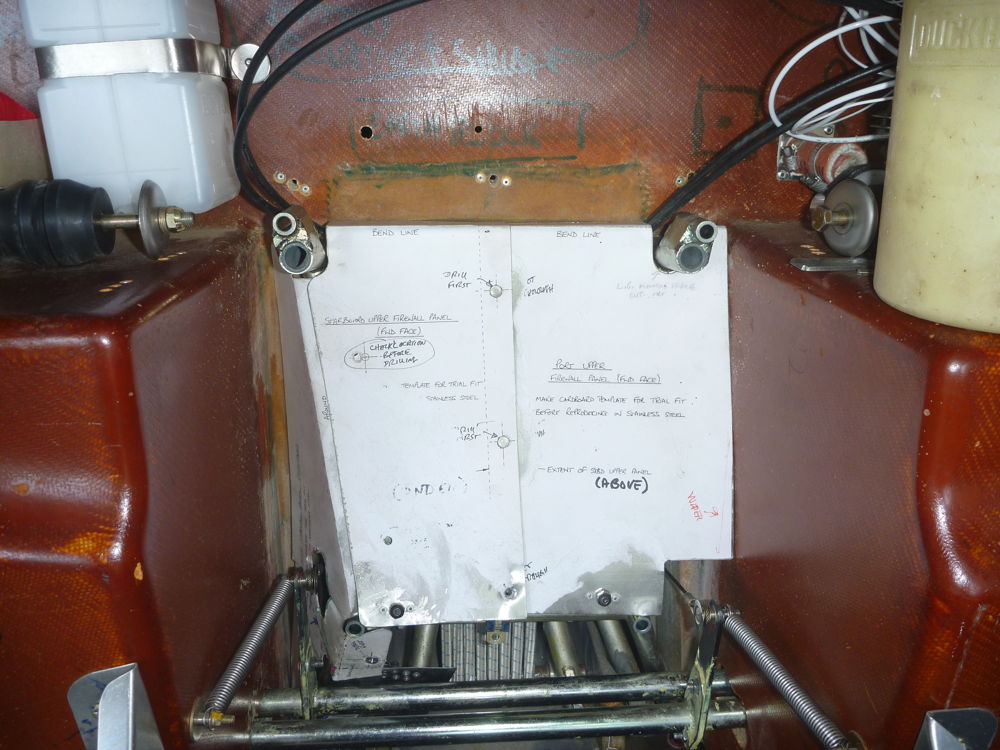

trial fit of SS firewall upper panels: 2019-05-31 Panasonic DMC-FT1
Trail fit of the upper stainless steel firewall panels after bending the flange along their top edge.

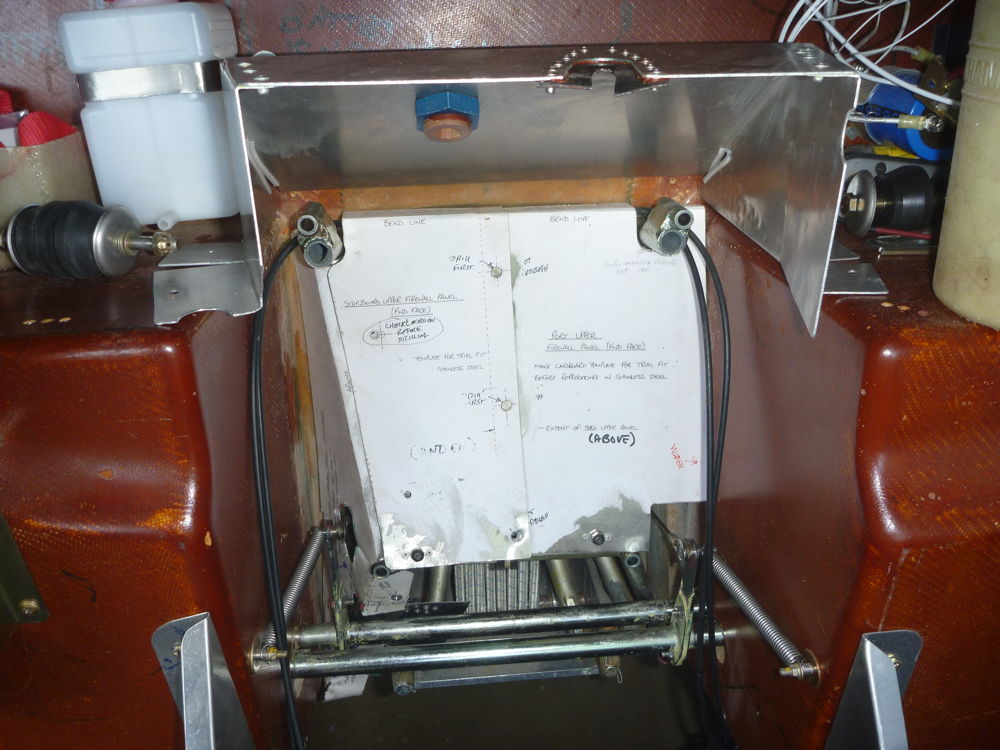

clearance between baffle and SS firewall upper panels: 2019-05-31 Panasonic DMC-FT1
Checking clearance between the aft baffle and the top of the upper stainless steel firewall panels.
