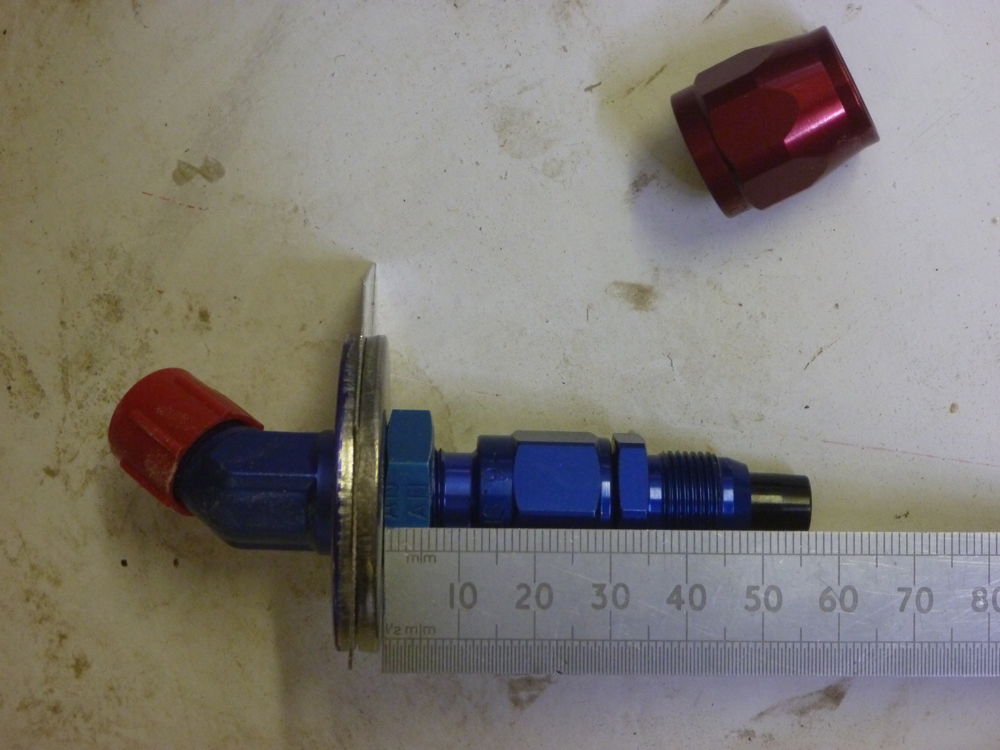

mockup of the fuel hose firewall penetration: 2019-06-01 Panasonic DMC-FT1
Doing a gross error check on the calculated distance from the firewall to the end of the fuel hose. The AN elbow is temporarily fitted to a scrap of the stainless steel firewall sheet with a M14 stainless penny washer each side.
