firewall clearance with port rudder
|
|
firewall clearance with port rudder |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

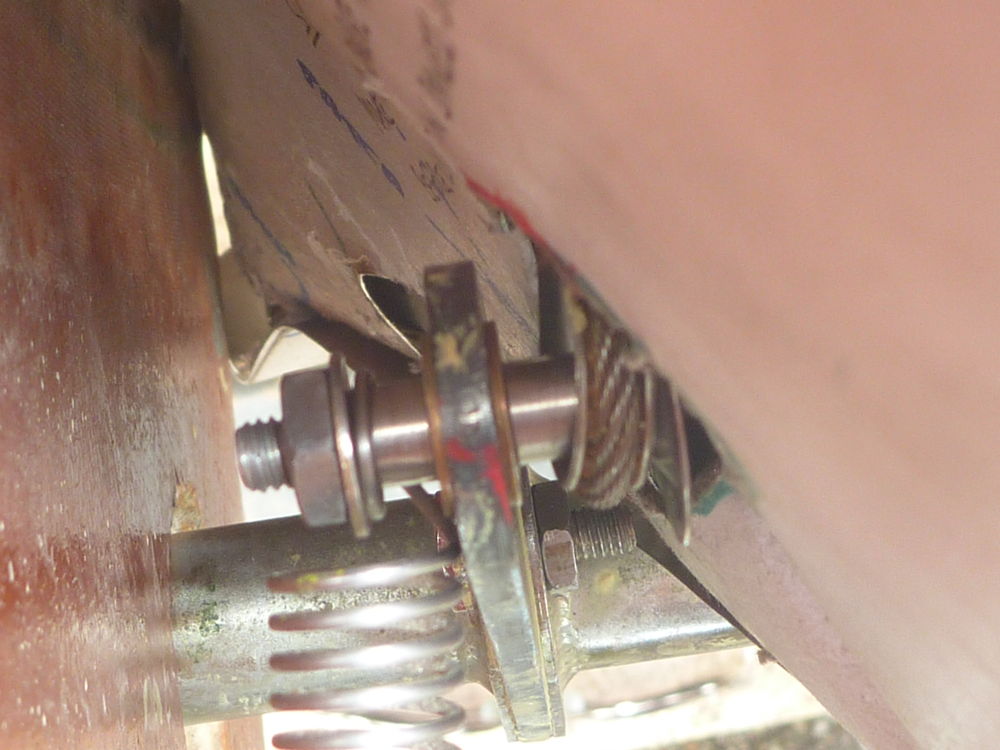

starboard rudder crank clear of SS firewall: 2019-05-25 Panasonic DMC-FT1
Looking down on the starboard rudder crank at full port rudder, the top of the crank is now clear of the starboard firewall panel

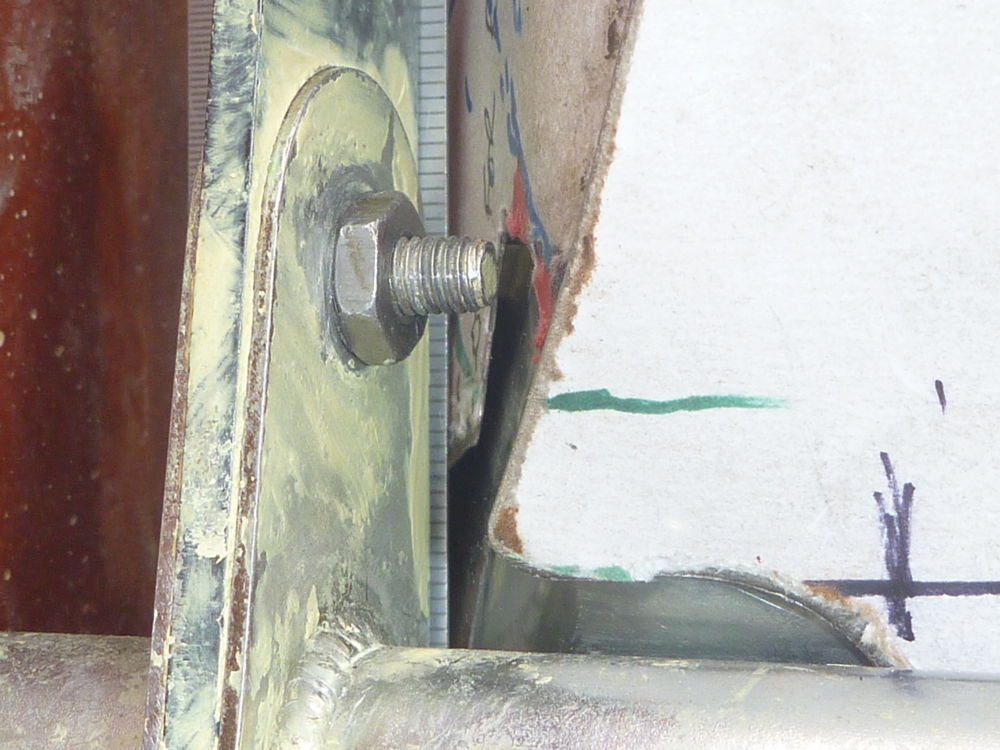

starboard rudder crank clear of SS firewall: 2019-05-25 Panasonic DMC-FT1
At full port rudder, a steel rule placed behind the starboard rudder crank shows that the crank and the fixing screw are now clear of the starboard firewall panel
