firewall clearance with starboard rudder
|
|
firewall clearance with starboard rudder |
|
|
 |
Navigation & Acknowledgements |
2 pictures on this page - scroll down to see the rest

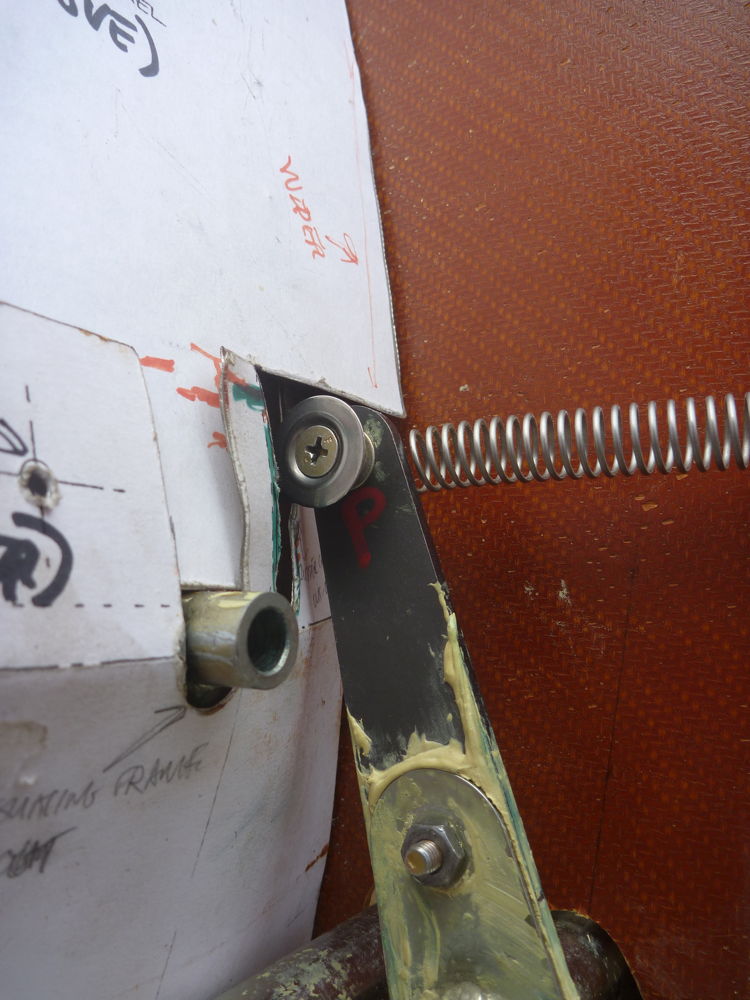

starboard rudder crank clear of SS firewall: 2019-05-25 Panasonic DMC-FT1
Looking up and outboard towards the starboard rudder crank. With the stainless steel patch in place on the frame tube and the original firewall sheet trimmed, the crank is now well clear at full starboard rudder.

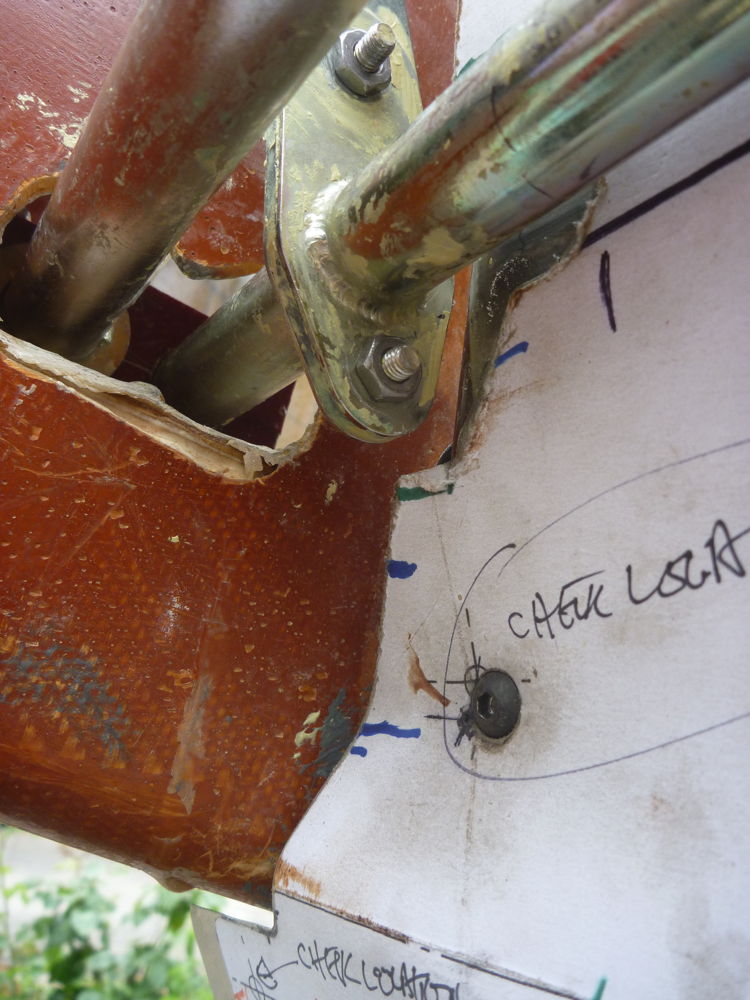

port rudder crank touching SS firewall: 2019-05-25 Panasonic DMC-FT1
At full starboard rudder, the port rudder crank just touches the firewall panel. The panel needs to be bent a little to clear.
