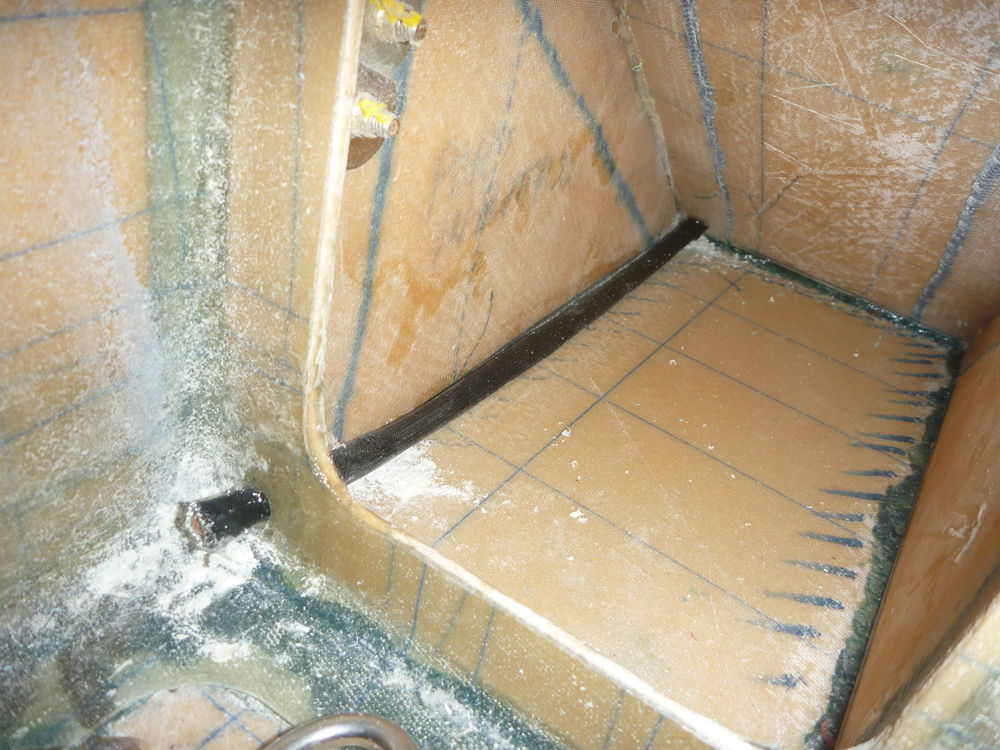

sleeving through port inboard thigh locker: 2020-03-25 Panasonic DMC-FT1
A piece of sleeving fed through the inboard bottom corner of the port inboard thigh locker, to provide some protection for the wiring coming from the fuel weight sensor. The sensor is fitted under the seat, in a recess in the foam block.

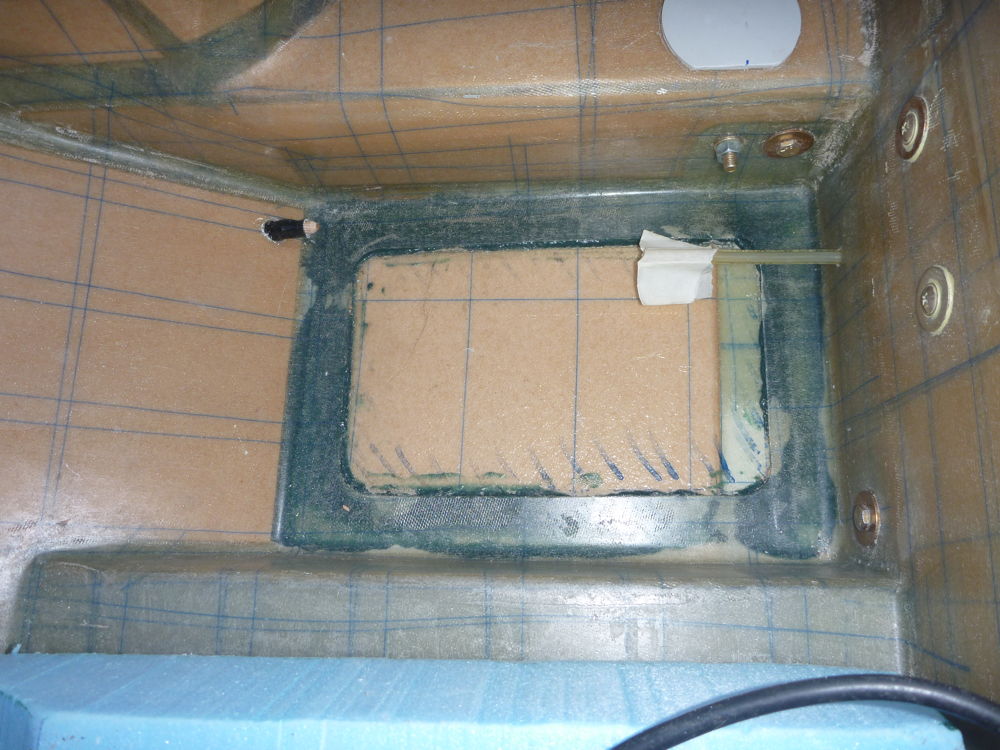

port seatwell with sleeving through thigh locker: 2020-03-25 Panasonic DMC-FT1
The port seat recess, showing the end of the sleeving fed through the thigh locker, to provide some protection for the wiring coming from the fuel weight sensor. The sensor is fitted in this area under the seat, in a recess in the foam block. The plastic tube with the end sealed off comes to the sensor from the fuel tank.
